SICK deTem4 Core - Receiver Indicators

Position LED color Display Labeling
!
Yellow Status indicator PWR
"
Red Fault indicator ERR
Receiver indicators
! OSSD
" ERR
1
2
3
4
§

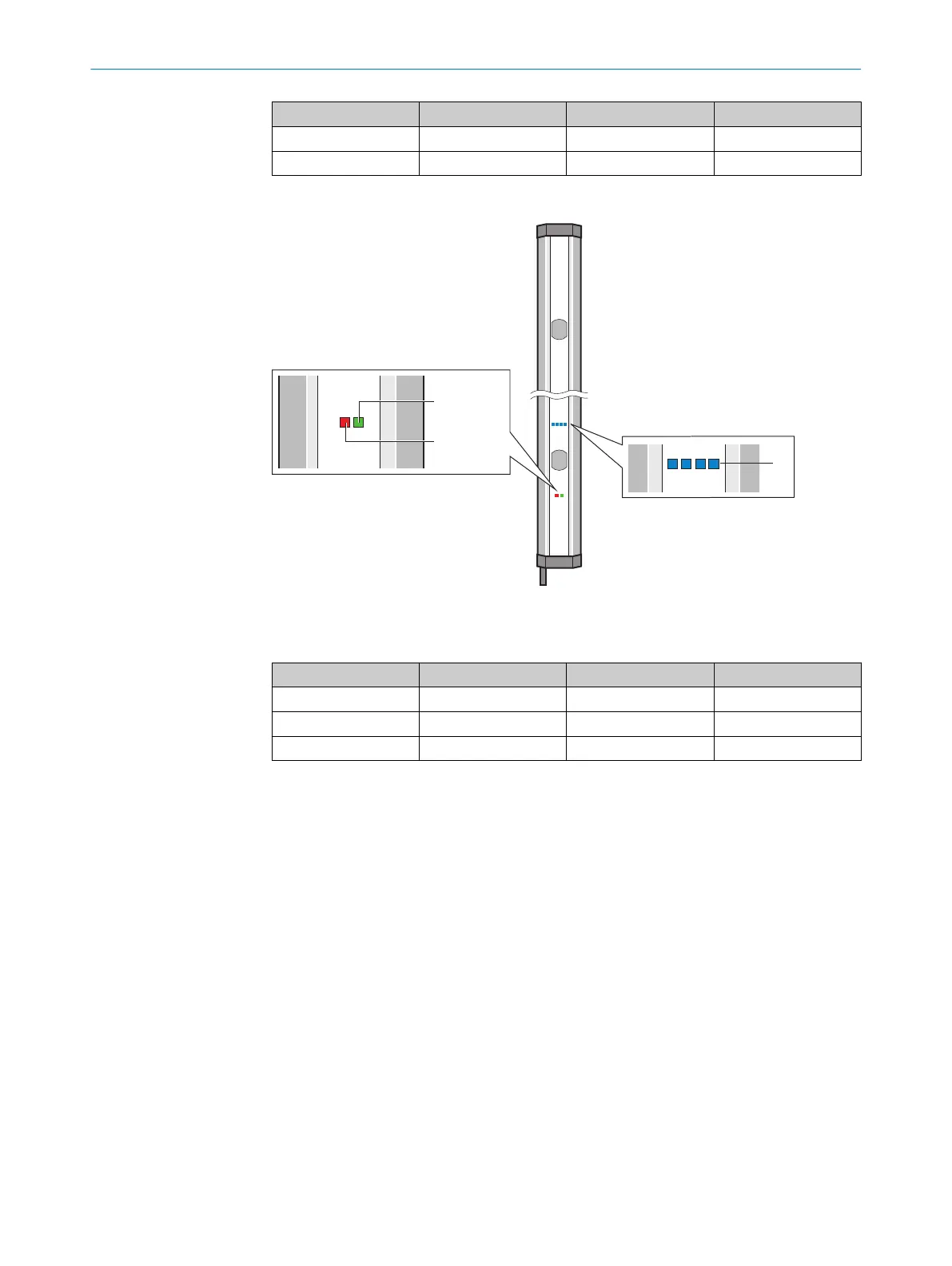

Figure 3: Receiver indicators
Six light emitting diodes on the receiver indicate the operational status:
Position LED color Display Labeling
!
Red/green OSSD status OSSD
"
Red Fault indicator ERR
§
Blue Alignment quality 1, 2, 3, 4
The blue alignment quality light emitting diodes in combination with the red flashing
ER
R LED also denote faults.
Further topics
•
"Diagnostic LEDs", page 49
3 P
RODUCT DESCRIPTION
12
