S
hift vertically
*) Exception for protective field height 300 mm
H
≤ L
/4*
L
≤ L /4

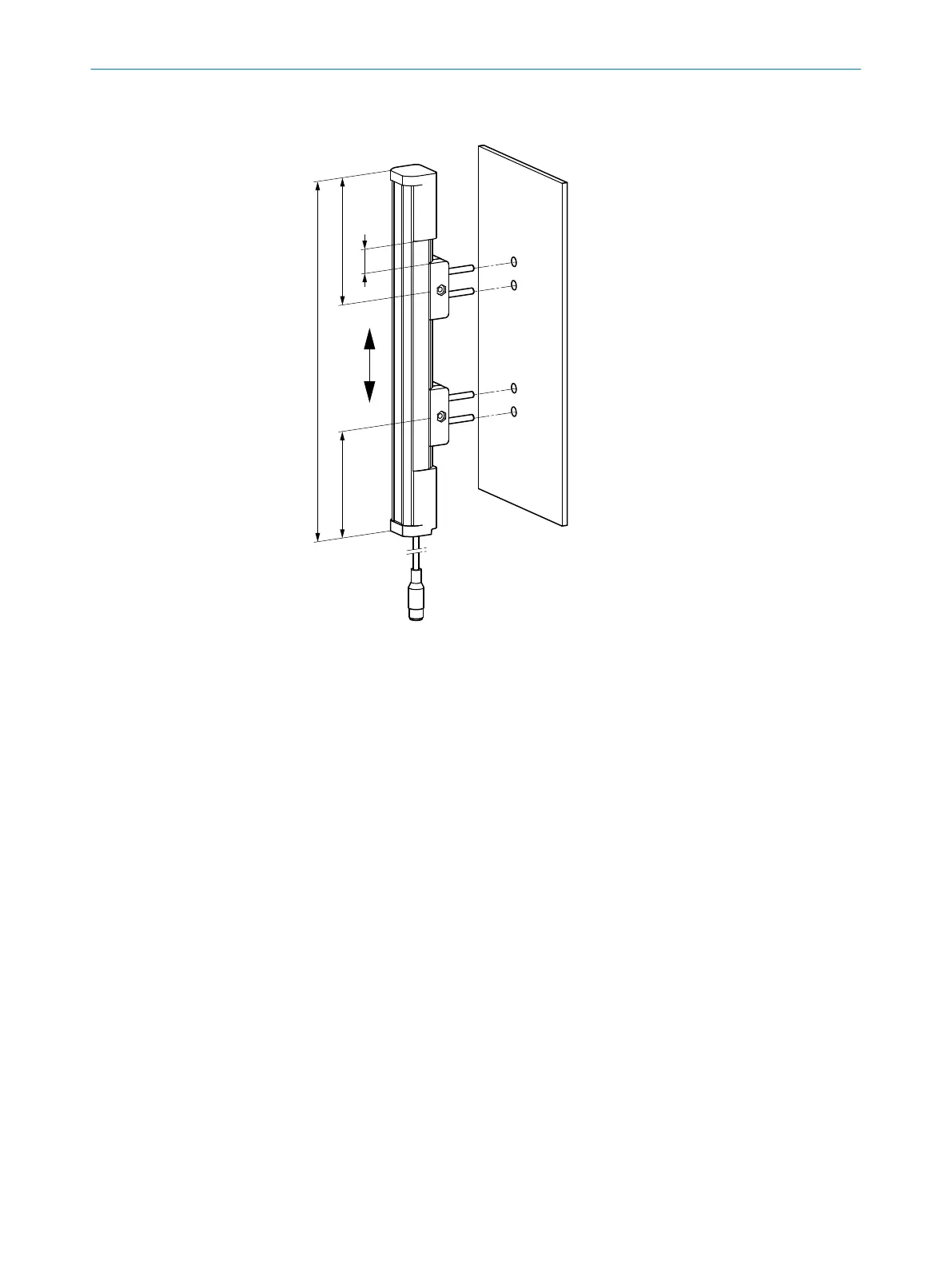

Figure 23: QuickFix bracket: Vertical adjustment
7.4.4 Alignment with the FlexFix bracket or with the upgrade bracket
Prerequisites
•
A F
lexFix bracket or upgrade bracket has been used to mount the sender and
receiver
Alignment with the FlexFix bracket or with the upgrade bracket
The FlexFix bracket and upgrade bracket offer you the following adjustment options for
aligning the sender and receiver with each other:
•
Shift vertically
•
Rotation (± 15°)
COMMISSIONING 7
