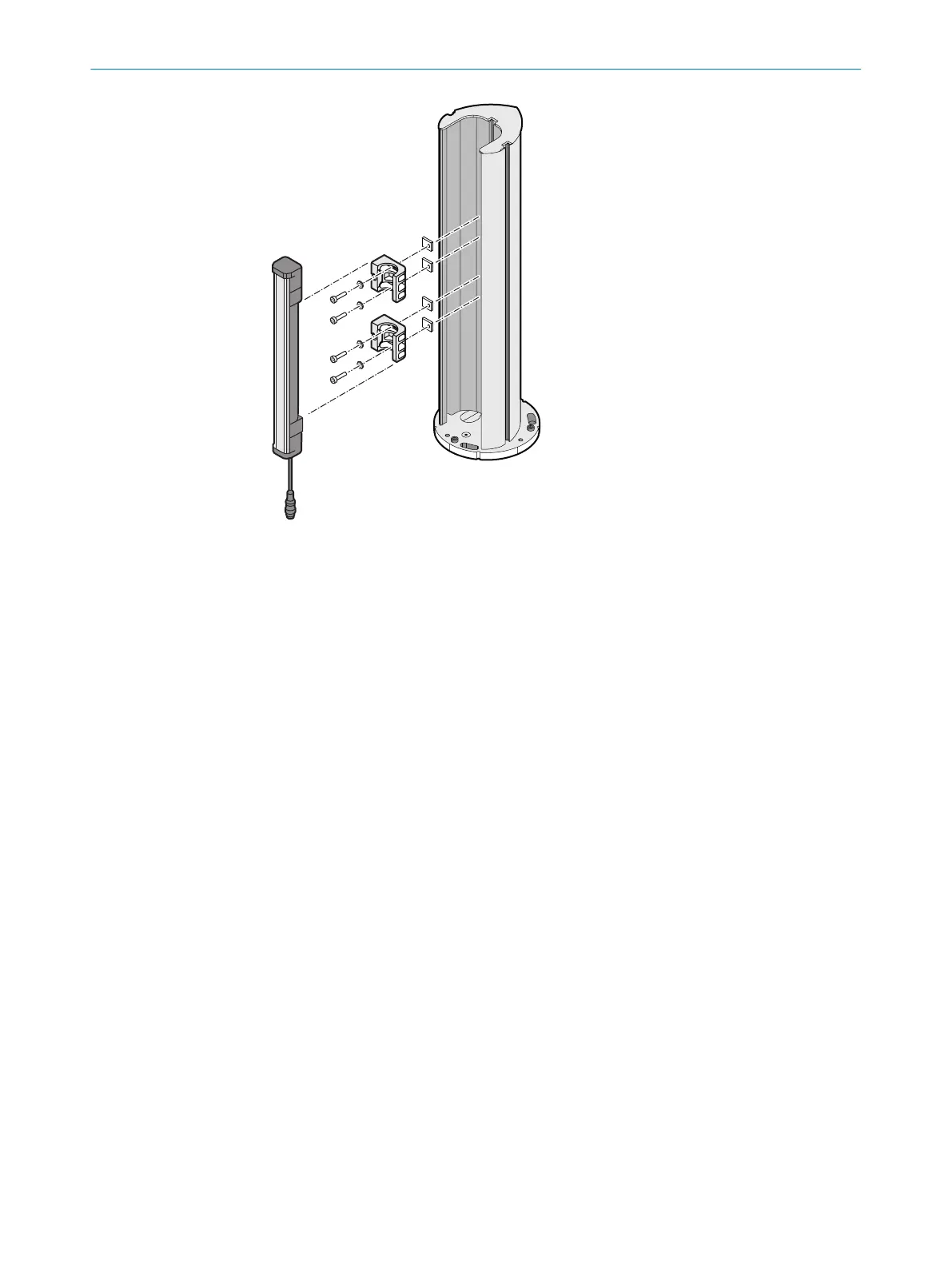

Figure 19: Mounting the FlexFix bracket on a device column (accessory)
Further topics
•
"S
ender and receiver alignment", page 40
5.3.3 Mounting the replacement bracket
If an existing M4000 multiple light beam safety device is mounted with a swivel-mount
br
acket or a side bracket, it can be replaced by a deTem4 Core multiple light beam
safety device using an upgrade bracket. There is no need to drill new holes, since the
existing ones can be used for the replacement bracket.
Complementary information
Additional information on mounting a multiple light beam safety device using a replace‐
ment bracket can be found in the mounting instructions for the replacement bracket.
MOUNTING 5
