SICK deTem4 Core - System Connection (M12, 5-Pin); Dual-Channel and Isolated Connection of OSSD1 and OSSD2; No Potential Difference between Load and Protective Device; System Connection (Male Connector, M12, 5-Pin)

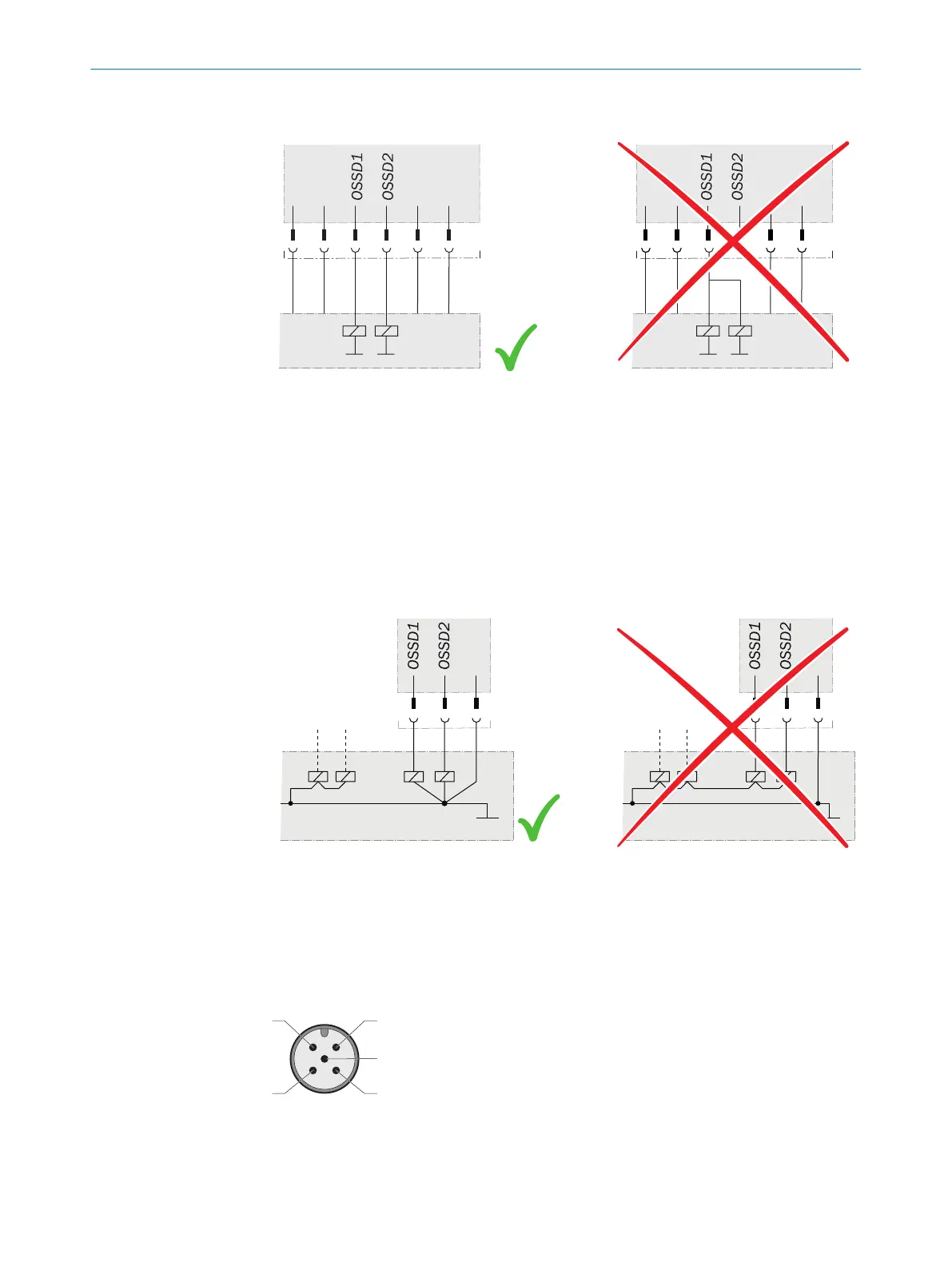

Example: Isolated connection of OSSD1 and OSSD2
Figure 20: Dual-channel and isolated connection of OSSD1 and OSSD2
Avoiding any potential difference between load and protective device
If y
ou connect loads to the output signal switching devices (switching outputs) that then
also switch if controlled with negative voltage (e.g., electro-mechanical contactor with‐
out reverse polarity protection diode), you must connect the 0 V connections of these
loads and those of the corresponding protective device separately and also directly to
the same 0 V terminal strip. In the event of a fault, this is the only way to ensure that
there can be no potential difference between the 0 V connections of the loads and
those of the corresponding protective device.
Figure 21: No potential difference between load and protective device
Further topics
•
"Int
egrating into the electrical control", page 19
6.2 System connection (M12, 5-pin)
12
3
4
5
Figure 22: System connection (male connector, M12, 5-pin)
