SICK deTem4 Core - Mount Flexfix Bracket to a Profile Frame; Lateral and Rear Mounting with the Flexfix Bracket

Further topics
•
"Br
ackets", page 58
5.3.2.1 Mounting the FlexFix bracket on a machine or profile frame
Mounting method
T
able 4: Lateral and rear mounting with the FlexFix bracket
Mounting
method
Description
On the side With the M5 screw through the FlexFix bracket on the machine or profile
frame. A screw nut or threaded hole is required on the machine or profile
frame (!).
With the M5 screw through the FlexFix bracket on the profile frame. 2 sliding
nut
s are required on the profile frame (").
On the back With the M5 screw through the FlexFix bracket on the machine or profile
fr
ame. A screw nut or threaded hole is required on the machine or profile
frame (§).
!
"
§

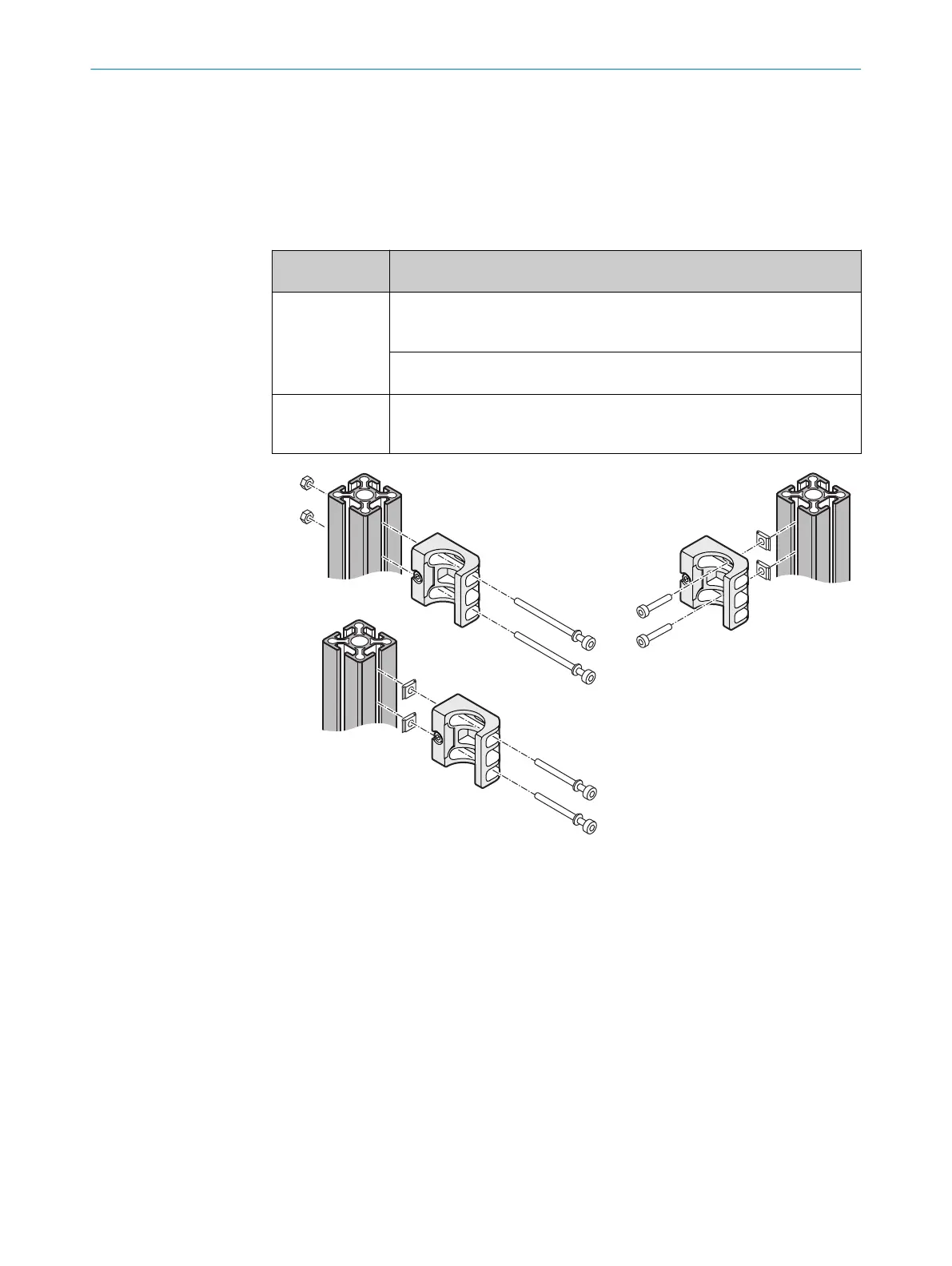

Figure 17: Mount FlexFix bracket to a profile frame
1
Mounting on the side
2
Mounting on the side
3
Mounting on the back
Approach
1.
After assembling the FlexFix brackets, screw the sender or receiver into the FlexFix
brackets from the front. (!)
2.
Align the sender and receiver. (")
3. Use an M5 screw to secure the position of the sender and receiver in the FlexFix
bracket. (§)
MOUNTING 5
