Chapter 9 Operating Instructions
DME4000
118 © SICK AG • Germany • Subject to change without notice 8014584/ZN33/2017-07
Appendix

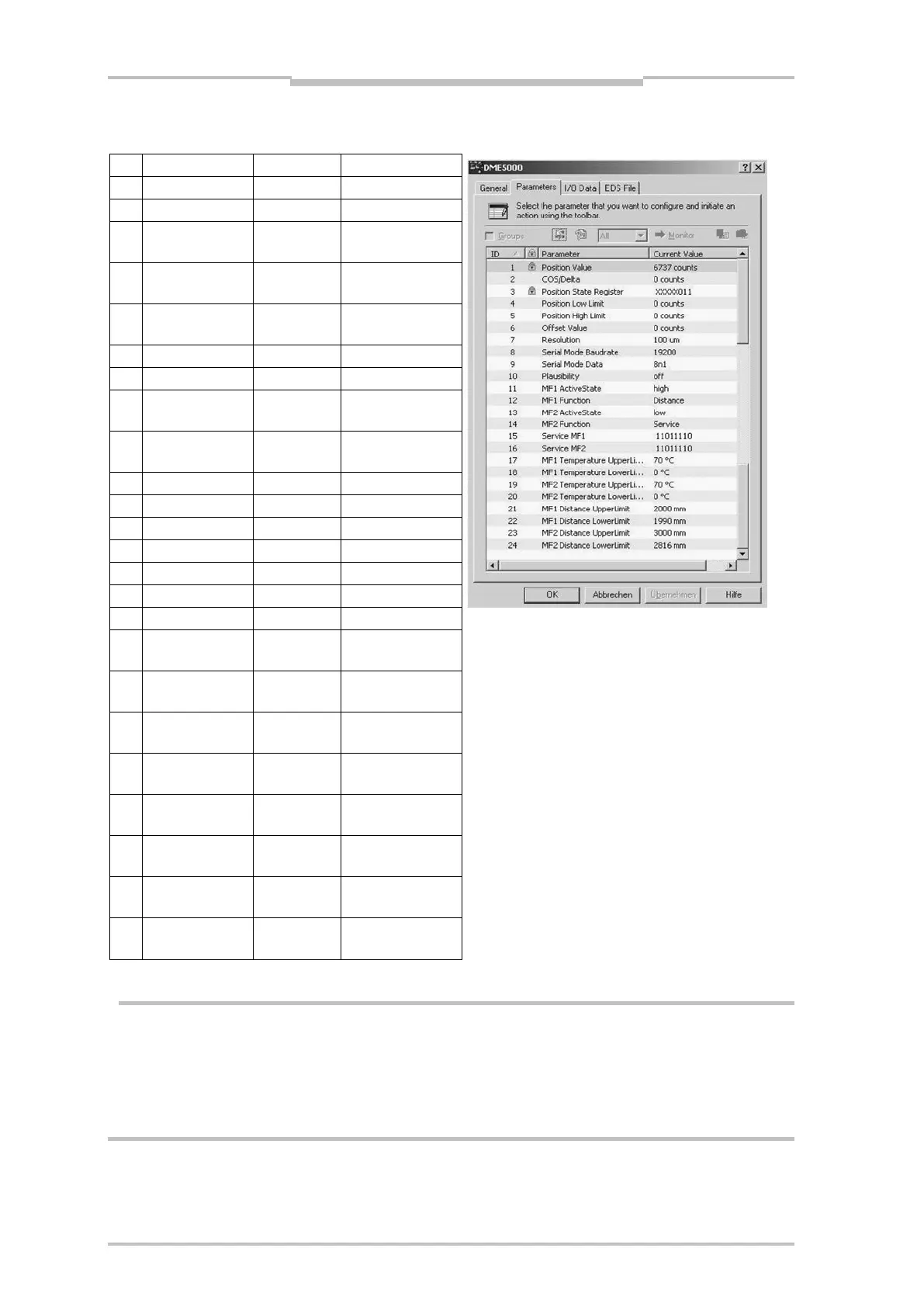

Parameter
ID
Parameter
Current Value
Chapter 3 Menu
1
Position Value
7295 counts
2
COS/Delta
0 counts
Anhang 0
3
Position State
Register
0 counts
See DeviceNet
Specification
4
Position Low
Limit
0 counts
See DeviceNet
Specification
5
Position High
Limit
0 counts
See DeviceNet
Specification
6
Offset Value
0 counts
3.6
7
Resolution
100 µm
3.5
8
Serial Mode
Baudrate
19200
3.2.1
9
Serial Mode
Data
8n1
3.2.2
10
Plausibility
Off
3.7
11
MF1 ActiveState
High
3.3.1
12
MF1 Function
Distance
3.3.2
13
MF2 ActiveState
High
3.4.1
14
MF2 Function
Service
3.4.2
15
Service MF1
1101110
3.3.4
16
Service MF2
1101110
3.4.4
17
MF1 Temperature
UpperLimit
70 °C
3.3.4.3
18
MF1 Temperature
LowerLimit
0 °C
3.3.4.4
19
MF2 Temperature
UpperLimit
70 °C
3.4.4.3
20
MF2 Temperature
LowerLimit
0 °C
3.4.4.4
21
MF1 Distance
UpperLimit
2000 mm
3.3.3.1
22
MF1 Distance
LowerLimit
1990 mm
3.3.3.2
23
MF2 Distance
UpperLimit
2000 mm
3.4.3.1
24
MF2 Distance
LowerLimit
1990 mm
3.4.3.2
Parametrisation of MF1 and MF2
Device variants DME4000–xx5 are only equipped with a 5-pin DeviceNet plug. The multifunctional
inputs and outputs MF1 and MF2 are not available as hardware.
The parametrisation of MF1 and MF2 is nevertheless possible, and the result can be queried in the
diagnostic byte (see Section 9.6.3 “Data Exchange”) via the bus.
Parametrisation as an input is not possible. The sleep mode and preset functions are possible via the
“Class Instance Editor”.

CAUTION
