Specifications
1grn shield 4 wht CAN
H
2red L+ 5 blu CAN
L
3blk M
Cable, 4 x 0.34 mm
2
, cores, twisted pair and screened
with AL-PT foil (for DME4000, CANopen)
Type: LTG-2804-MW Part no.: 6028328
Temperature range variable 10 ... +70 °C
not variable 40 ... +70 °C
Sheathing PUR black Ø 6.8 mm
Shield Cu tin-coated
6.3.3 Mounting

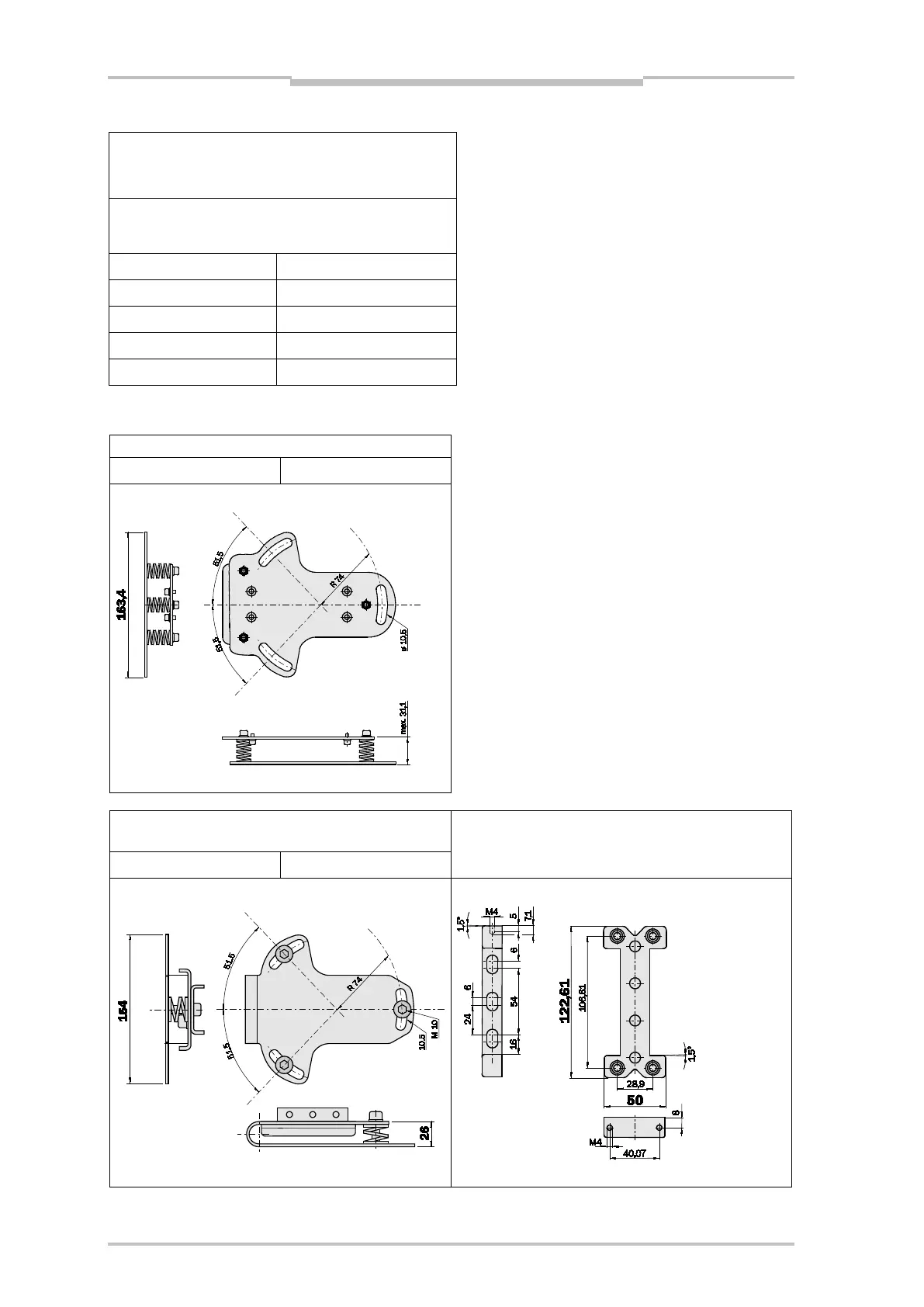

DME4000 alignment bracket
Type: BEF-DME
Part no.: 2040695
DME4000 alignment bracket
Mounting kit for baseplate
(needed for DME4000)
Typ: BEF-AH-DME5
Part no.: 2027721
Typ: BEF-DME4000
Part no.: 2040738
