Operating Instructions Chapter 6
DME4000
8014584/ZN33/2017-07 © SICK AG • Germany • Subject to change without notice 97
Specifications
10 m, G10MAH1
Part no.: 6032450
not variable 40 ... +70 °C
20 m, G20MAH1
Part no.: 6032451
Sheathing
PUR black
6.8 mm
Shield
Cu tin-coated

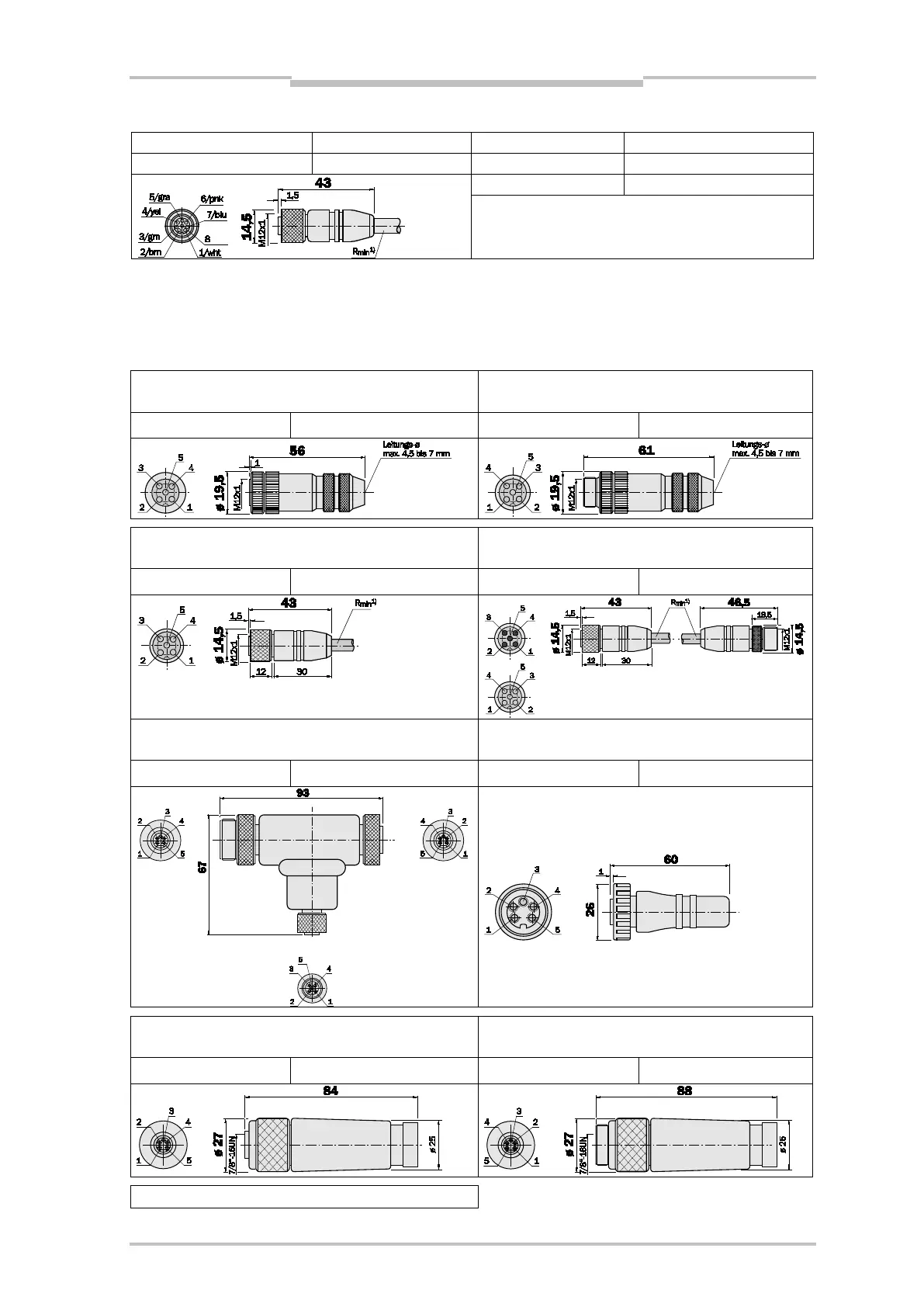

Mounting systems for CANopen interface
CANopen
Female connector, M12, 5-pin, straight, shielded,
360 screen can be assembled onto a knurled nut
Male connector, M12, 5-pin, straight, shielded,
360 screen can be assembled onto a knurled nut
Typ: DOS-1205-GA Part no.: 6027534 Typ: STE-1205-GA Part no.: 6027533
CANopen female connector, M12, 5-pin, straight,
cable 6 m, Dropcable
CANopen connection cable 6 m, M12 receptacle, 5-pin,
straight, M12 plug, 5-pin, straight, Dropcable
Typ: DOL-1205-G06MK Part no.: 6028326 Typ: DSL-1205-G06MK Part no.: 6028327
CANopen T junction box M12, 5-pin, on plug,
7/8'' receptacle, 5-pin
CANopen terminating resistor, 7/8'' receptacle,
5-pin, straight
Typ: SDO-02D78-SF Part no.: 6028330 Typ: DOS-7805-GKEND Part no.: 6028329
CANopen female connector, 7/8'', 5-pin, straight, PG16,
sizeable
CANopen male connecotr, 7/8'', 5-pin, straight, PG16,
sizeable
Typ: DOS-7805-GK Part no.: 6028331 Typ: STE-7805-GK Part no.: 6028332
Pin assignment
