SICK DME4000 User Manual

Chapter 6 Operating Instructions
DME4000
96 © SICK AG • Germany • Subject to change without notice 8014584/ZN33/2017-07

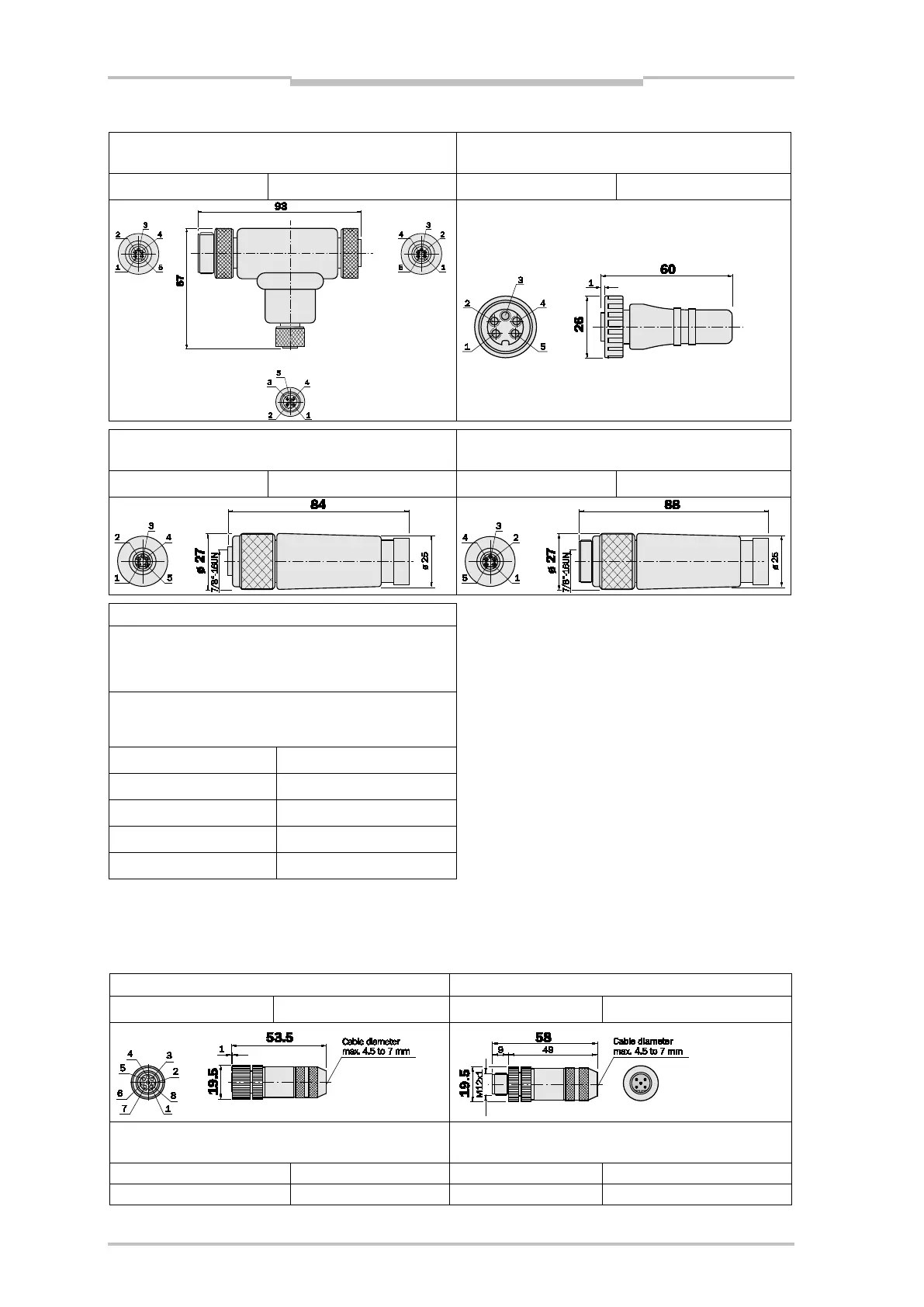

Specifications
DeviceNet T junction box M12, 5-pin, on plug,
7/8'' receptacle, 5-pin
DeviceNet terminating resistor, 7/8'' receptacle,
5-pin, straight
Typ: SDO-02D78-SF Part no.: 6028330 Typ: DOS-7805-GKEND Part no.: 6028329
DeviceNet female connector, 7/8
''
, 5-pin, straight, PG16,
sizeable
DeviceNet male connecotr, 7/8
''
, 5-pin, straight, PG16,
sizeable
Typ: DOS-7805-GK Part no.: 6028331 Typ: STE-7805-GK Part no.: 6028332
Pin assignment
1grn shield 4 wht CAN
H
2red L+ 5 blu CAN
L
3blk M
Cable, 4 x 0.34 mm
2
, cores, twisted pair and screened
with AL-PT foil (for DME4000, DeviceNet)
Type: LTG-2804-MW Part no.: 6028328
Temperature range variable 10 ... +70 °C
not variable 40 ... +70 °C
Sheathing PUR black Ø 6.8 mm
Shield Cu tin-coated
Mounting systems for Hiperface interface
Hiperface
Female connector, PG9, 8-pin, straight, sizeable
Male connector, PG9, 8-pin, straight, sizeable
Part no.: 6028369 Type: STE-1208-G Part no.: 6028369 Type: STE-1208-G
Female connector, M12, 8-pin, straight, cable with screen
can be assembled onto a knurled nut
Wire
2 m, DOL-1208-G01MAH1
Part no.: 6032448
Type: LTG-3108-MW
Part no.: 6032456
5 m, DOL-1208-G05MAH1
Part no.: 6032449
Temperature range
variable

10 ... +70 °C
