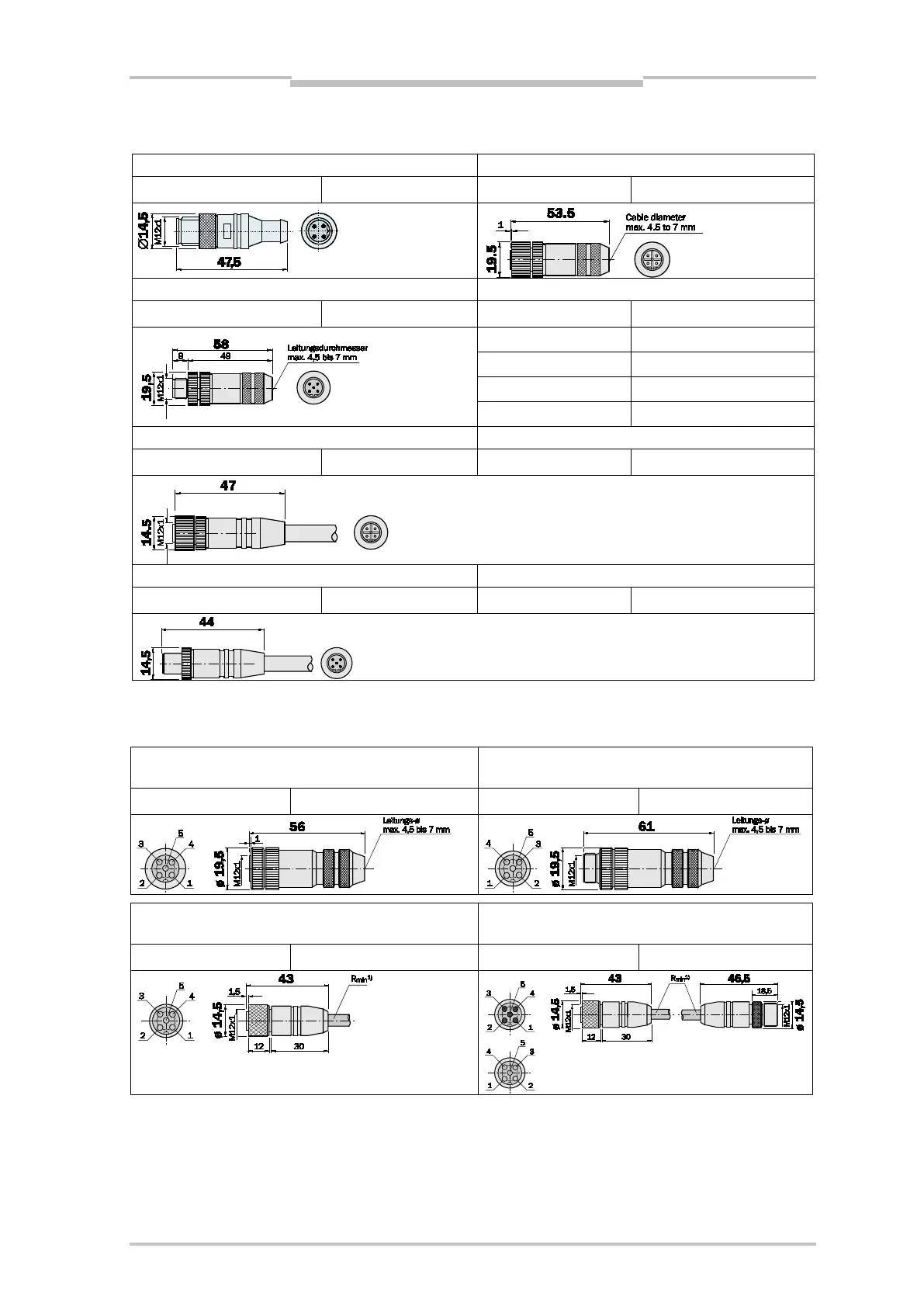

Specifications
PROFIBUS
PROFIBUS terminal resistor
Bus in, PROFIBUS cable socket, M12, 5-pin
Typ: PR-STE-END
Part no.: 6021156
Typ: PR-DOS-1205-G
Part no.: 6021353
Bus out, PROFIBUS cable plug, M12, 5-pin
PROFIBUS cable, 2 x 0,34 mm2, sold by meter
Typ: PR-STE-1205-G
Part no.: 6021354
Typ: LTG-2102-MW
Part no.: 6021355
Temperature range
Variable –5 ... +80 °C
Not variable –40 ... +80 °C
Sheathing
PUR violet Ø 8 mm
Shield
AL-PT tape
Bus in, cable receptacle with PROFIBUS cable, 5 m
Bus in, cable receptacle with PROFIBUS cable, 10 m
Typ: DOL-12PR-G05
Part no.: 6026006
Typ: DOL-12PR-G10
Part no.: 6026008
Bus out, cable plug with PROFIBUS cable, 5 m Bus out, cable plug with PROFIBUS cable, 10 m
Typ: STL-12PR-G05
Part no.: 6026005
Typ: STL-12PR-G10
Part no.: 6026007
DeviceNet
Female connector, M12, 5-pin, straight, shielded,
360 screen can be assembled onto a knurled nut
Male connector, M12, 5-pin, straight, shielded,
360 screen can be assembled onto a knurled nut
Typ: DOS-1205-GA Part no.: 6027534 Typ: STE-1205-GA Part no.: 6027533
DeviceNet female connector, M12, 5-pin, straight,
cable 6 m, Dropcable
DeviceNet connection cable 6 m, M12 receptacle, 5-pin,
straight, M12 plug, 5-pin, straight, Dropcable
Typ: DOL-1205-G06MK Part no.: 6028326 Typ: DSL-1205-G06MK Part no.: 6028327
