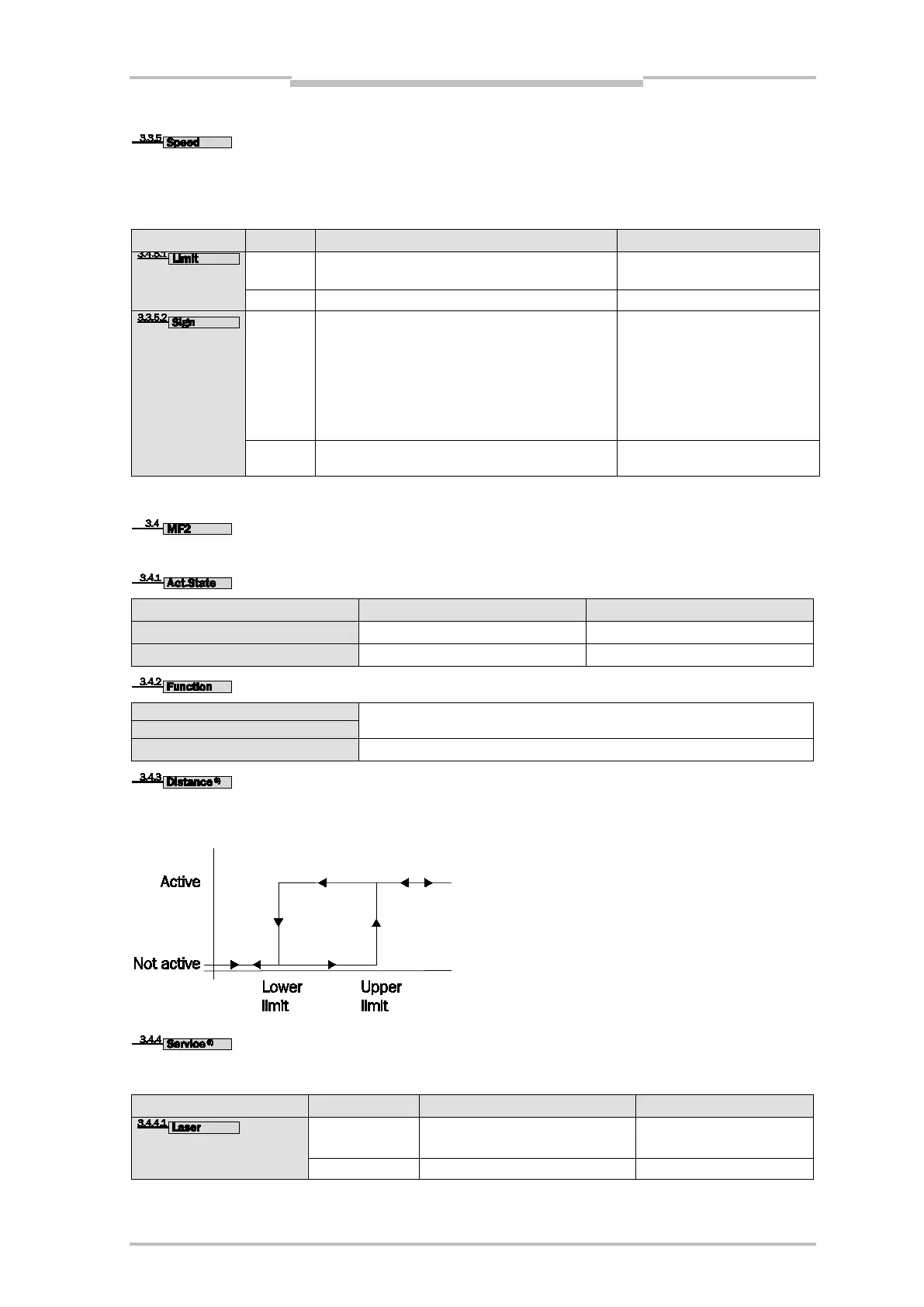

Menu Structure
Speed
The “Speed” function makes output via both switching outputs MF1 and MF 2 possible when the pa-
rameterized speed limit is exceeded.
The switching hysteresis is fixed ± 0,1 m/s.
Aktiv
Nicht aktiv
Limit
On
(default)
Range: 0,1 … 9,9 m/s
Range: 0 m/s
Off
–
Sign
On
(default)
Parameterized speed limit is exceeded and movement
direction “+”.
Measured value becomes bigger;
Movement direction “-“: Measured value becomes
smaller;
Movement direction “+/-“: Measured value in both
directions
Parameterized speed limit is not
exceeded.
Off
–
MF2
Parameterizable output
Active State
Low Active (default)
High Active
Aktiv 1
LOW
HIGH
Aktiv 0
HIGH
LOW
Function
Distance siehe 3.4.3
Service (default) siehe 3.4.4
Monitor
(Only SSI variant): Is displayed when the monitor interface is set to On under 3.1.4.
Distance
MF2 is used as distance switching output.
Function:
Service
Freely settable status messages in “OR” link, which provide information about the sensor state.
Active
Not active
Laser
On (default)
Pre-failure message
laser diode
Laser OK
Off
–
