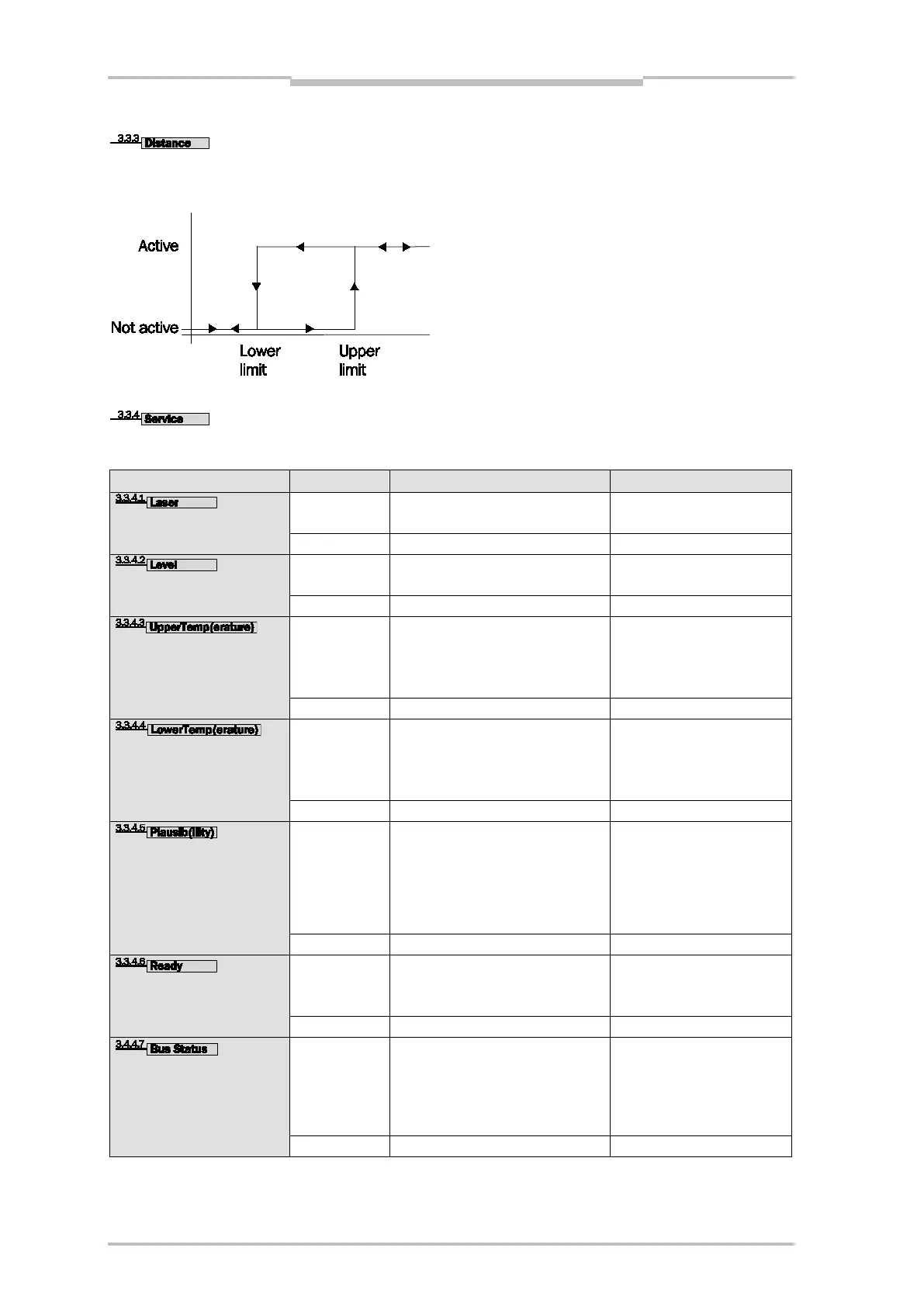

Menu Structure
Distance
MF1 is used as distance switching output.
Function:
Service
Freely settable status messages in “OR” link, which provide information about the sensor state.
Active
Not active
Laser
On (default)
Pre-failure message
laser diode
Laser OK
Off
–
Level
On (default)
Pre-failure message
attenuation
Not soiled
Off
–
UpperTemp
On (default)
Excess temperature
monitoring
Sensor temperature
> upper temperature limit set
Sensor temperature < upper
temperature limit set
Off
–
LowerTemp
On (default)
Subnormal temperature
monitoring
Sensor temperature
< lower temperature limit set
Sensor temperature > lower
temperature limit set
Off
–
Plausib(ility)
On
Faulty measured valued, measured
value output “0”
Cause:
–Light beam interruption
Vehicle speed
> 10 m/s
Measurement value OK
Off
–
Ready
On (default)
Initialization,
hardware defect,
laser switched off
Ready-to-operate, measured
value OK
Off
–
Bus Status
On
Bus error
SSI: no clock signal
PB/DN: no telegram traffic
CANopen: stopped mode
Data transmission OK
SSI: clock signal
PB/DN: telegram traffic
CANopen: (pre-)operational
mode
Off (default)
–
