Device access to the memory card
NOTE
The device does not directly signal access (read, write) to the memory card.
When saving the parameter set using the Permanent option, the Ready LED indicates
when the save process has completed:
•
When the device starts saving, the Ready LED goes out.
•
When the device has finished saving, the Ready LED lights up green again.
NOTICE
Possible data loss!
If the memory card is removed or the supply voltage switched off when saving the
parameter set in SOPAS ET, data may be lost.
b
Do not remove the memory card or switch off the supply voltage while the parame‐
ter set is being permanently changed by saving it with the Permanent option in
SOPAS ET.
b
To safely remove the memory card during operation, select the Remove SD card
option under Analysis/SD card in SOPAS ET. Then wait for the feedback from
SOPAS ET.
Inserting the memory card in the device:
DANGER
Risk of injury due to hot device surface.
The surface of the device can become hot during operation.
•
Before performing work on the device (e.g. mounting, cleaning, disassembly),
switch off the device and allow it to cool down.
•
Ensure good lost heat transfer from the device.
NOTICE
Risk of damage to the memory card!
b
To avoid damaging the microSD memory card, make sure the device is de-ener‐
gized when you insert or remove the card. For this purpose, disconnect the device
from the supply voltage.

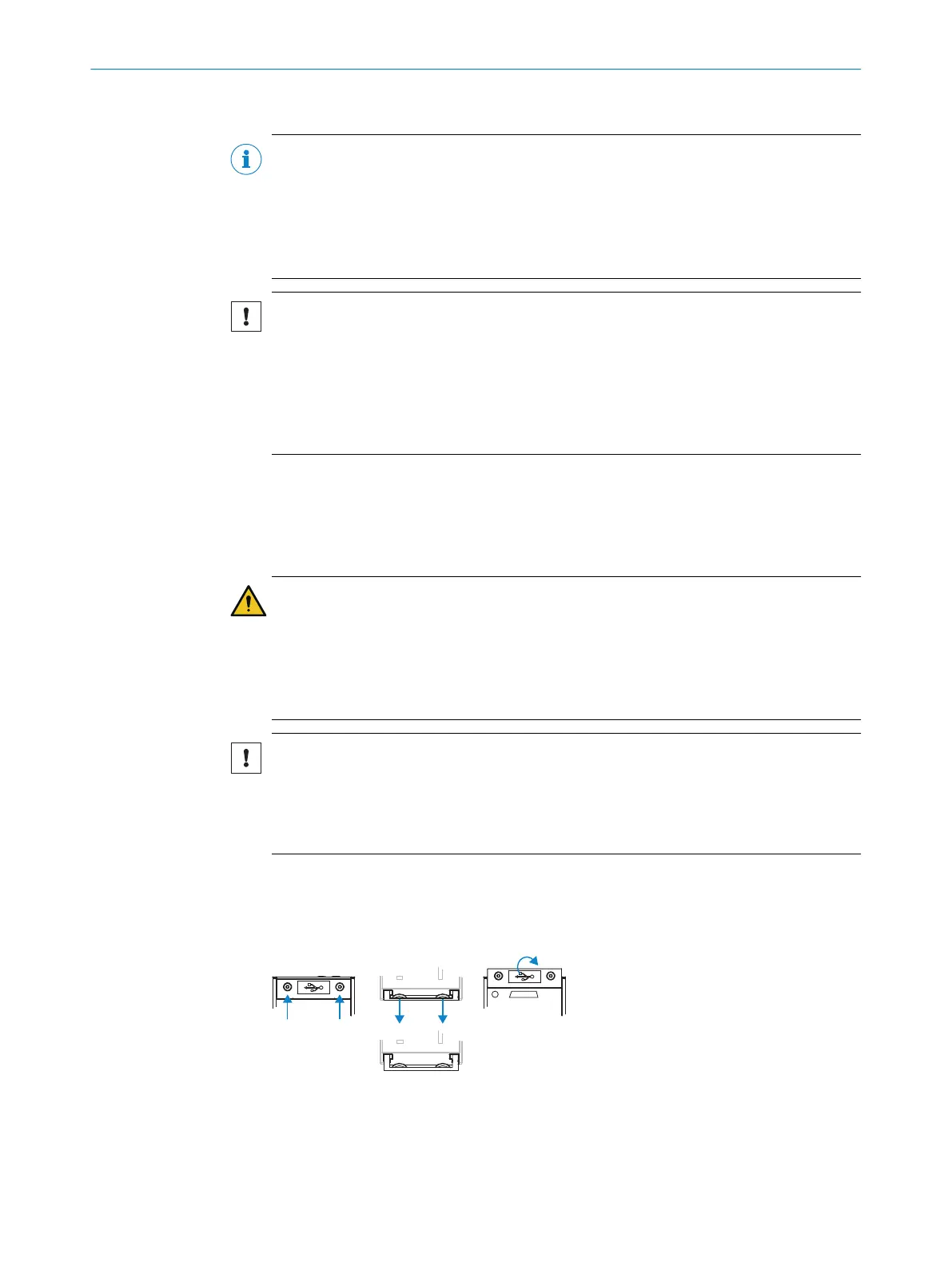

Access to the card slot
The card slot for the memory card is located under the hinged cover on the rear side of
the device.
1. 3.
LNK TX
Userdefined
100
70
40
0
[mm]
[%]
LNK TX
Userdefined
100
70
40
0
[mm]
[%]
2.
1. Switch off the supply voltage to the device.
2. Undo the screws (Torx TX6, captive) on the hinged cover and open the cover as
follows:
3 PRODUCT DESCRIPTION
18
O P E R A T I N G I N S T R U C T I O N S | GLS621 8024289/19E9/2020-10-21 | SICK
Subject to change without notice
