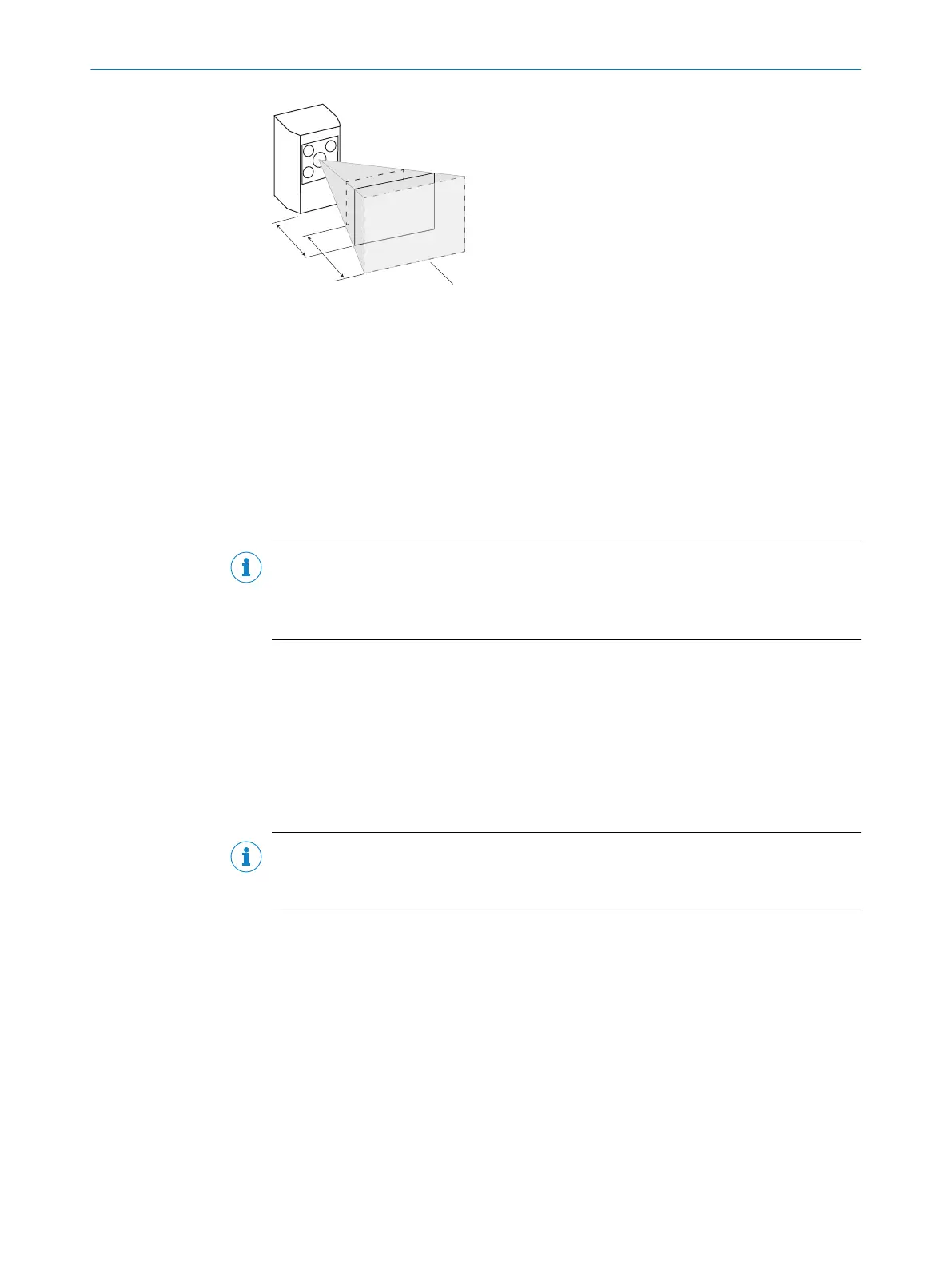

Figure 8: Field of view geometry
1
Workspace
2
Depth of field
3
Field of view
The device automatically adjusts its focus position to the working distance with the
Auto-Setup function.
The user does this with the SOPAS ET configuration software.
The focus position is valid for one working distance. The device does not perform auto‐
mated tracking (auto focus) if the working distance changes significantly, for example.
NOTE
After the device has been successfully calibrated using SOPAS ET, do not change the
working distance of the device and the reading distance set in SOPAS ET.
If these settings are changed, the device must be recalibrated.
The set working distance effects the speed of the AGV and the size of the field of view
depending on the mounting alignment and the 2D codes used, see "Typical reference
values during operation", page 56.
5.3.3 Mounting angle
Align the device at a 90° angle to the surface so that the beta (β) and gamma (γ)
angles are set to exactly 0°. Check the beta (β) and gamma (γ) angles in SOPAS ET, see
"Configuring the device manually", page 40.
NOTE
Use the latest version of the SOPAS ET configuration software.
Versions older than SOPAS ET Version 2018.04 are not compatible with the device.
Setting gamma (γ) mounting angle:
5 MOUNTING
26
