Technical data

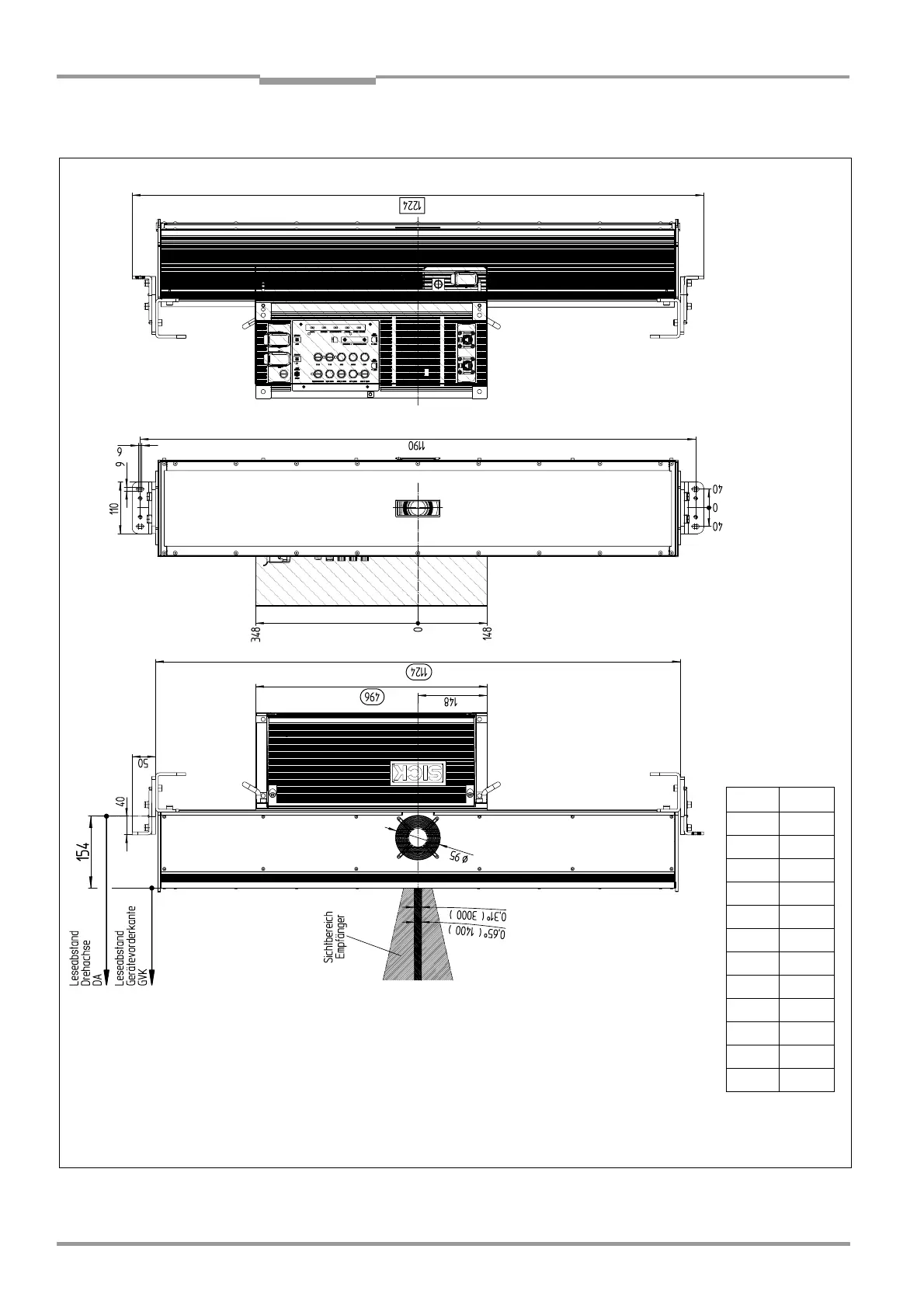

9.5 System dimensional drawing ICR890
Abb. 9-4: Dimensions of the ICR890 System
All dimensions in mm
mm inch
90.35
40 1.58
50 1.97
95 3.7
110 4.3
148 5.8
154 6.1
348 13.7
1,190 46.9
1,224 48.2
1,400 55.2
3,000 118.2
