Chapter 4 Operating Instructions
ICR890 High-end CCD Camera System
46 © SICK AG · Division Auto Ident · Germany · All rights reserved 8011325/0000/2006-10-24
Installation
4.2.3 Selecting the installation location
Dimensional sheet
The general installation location requirements are described in Chapter 3.2.2, page 27. The
project-specific specifications (position of the components, distances, angles, etc.) are
contained in a dimensional sheet and have to be adhered to when installing components.

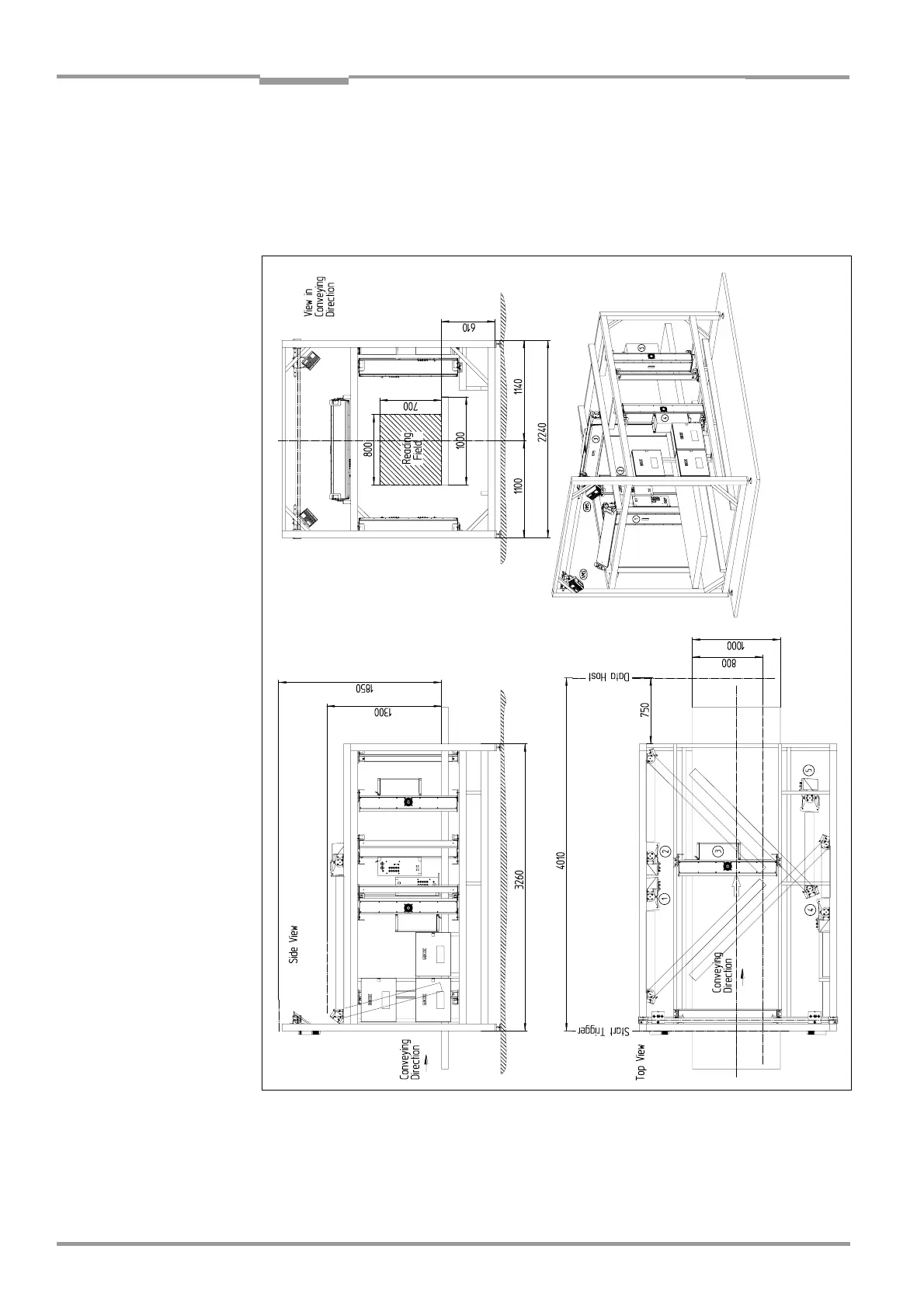

Abb. 4-1: Example of a project-specific dimensional sheet for installation
