3.4.2 Integrated illumination unit
Overview
1
2
4
3

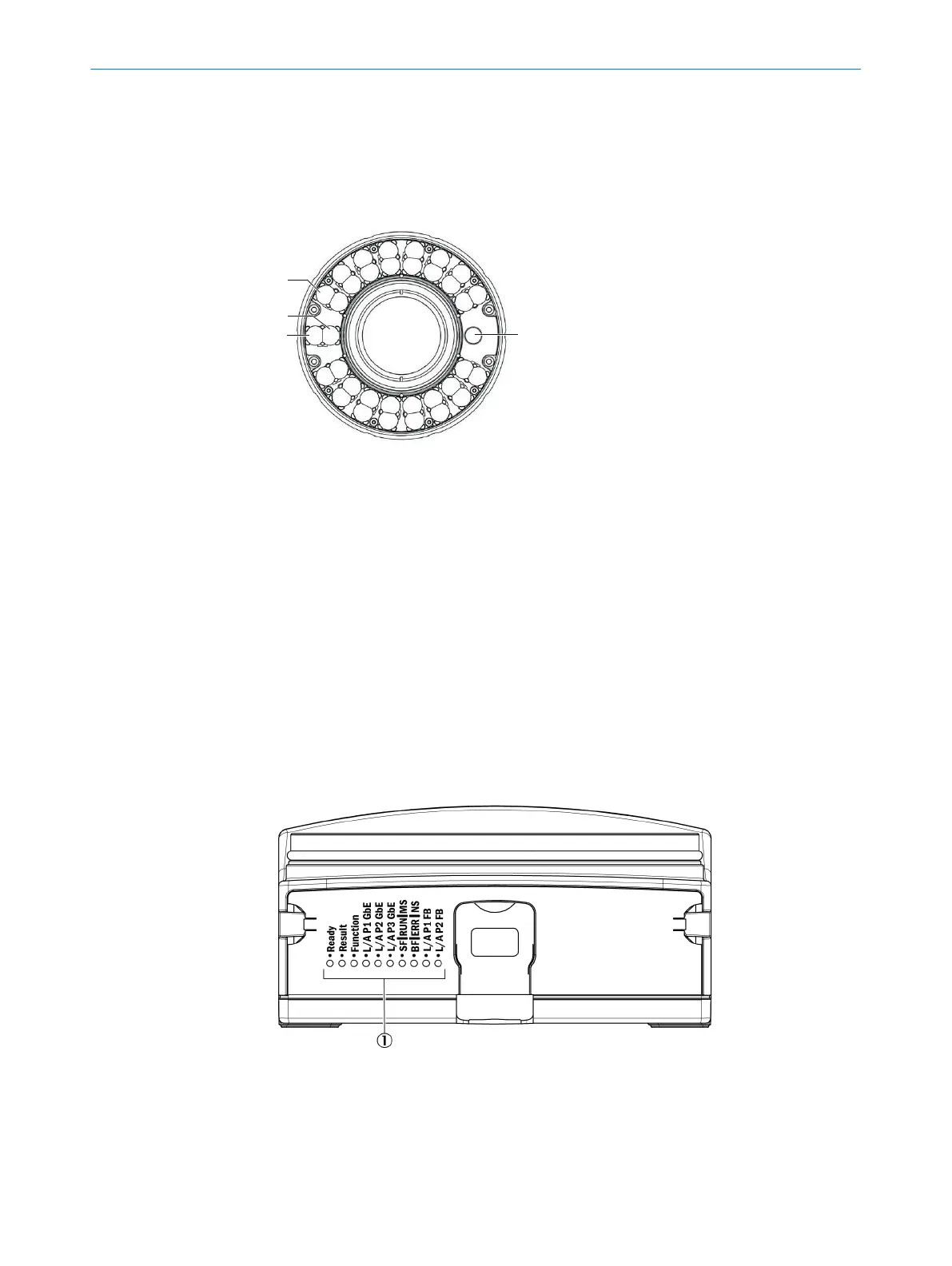

Figure 3: VI83I illumination unit
1
32 illumination LEDs, color: visible white light
2
1 Feedback LED, color: visible green light, e.g., for Good Read (not available)
3
1 Feedback LED, color: visible red light, e.g., for No Read (not available)
3
Laser alignment aid, color: visible red light (not available)
Feedback LED
The function of the feedback LED can be set using the configuration software. For
example, the green feedback LED can be configured to briefly produce a green feed‐
back spot within the field of view of the product after a successful read.
Laser alignment aid
The laser alignment aid produces a red spot (laser spot) in the field of view of the
product. The alignment aid can be switched off.
3.4.3 Display and control elements
1
Status LEDs
PRODUCT DESCRIPTION 3
