SICK Lector621 User Manual

4
Serial RS-232, alternative to USB or Ethernet AUX port Serial RS-232 without image trans‐
mission.
5
USB, alternative to serial RS-232 or Ethernet AUX port USB only for temporary use as a
service interface.
6
Adapter cable (male connector, USB, Micro-B type/male connector, USB, type A)
7
Ethernet, Aux interface (alternative to RS-232 or USB)
8
Adapter cable (male connector, M12, 4-pin, D-coded/male connector, RJ-45, 8-pin)
9
Configuration with SOPAS ET, image display or reading diagnostics
ß
For CDB650-204: Connection cable 1:1 (female connector, M12, 17-pin, A-coded/male
connector, M12, 17-pin, A-coded)
For CDM420-0006: Adapter cable (female connector, M12, 17-pin, A-coded/male con‐
nector, DSub-HD, 15-pin)
Lector621 ECO
Lector621 ECO
Connection module 2
SerialSerial
Configuration
Image display
Diagnostics
SOPASSOPAS
"Power/Serial Data/CAN/I/O"
(Aux 1, Host)
...
...
1
2
V
S
1
GND
PC
"Serial RS-232" (Aux 1) 4
"USB" (Aux 2,
for temporary use only) 5
USBUSB
V
S
Cable 6
Cable 3
7

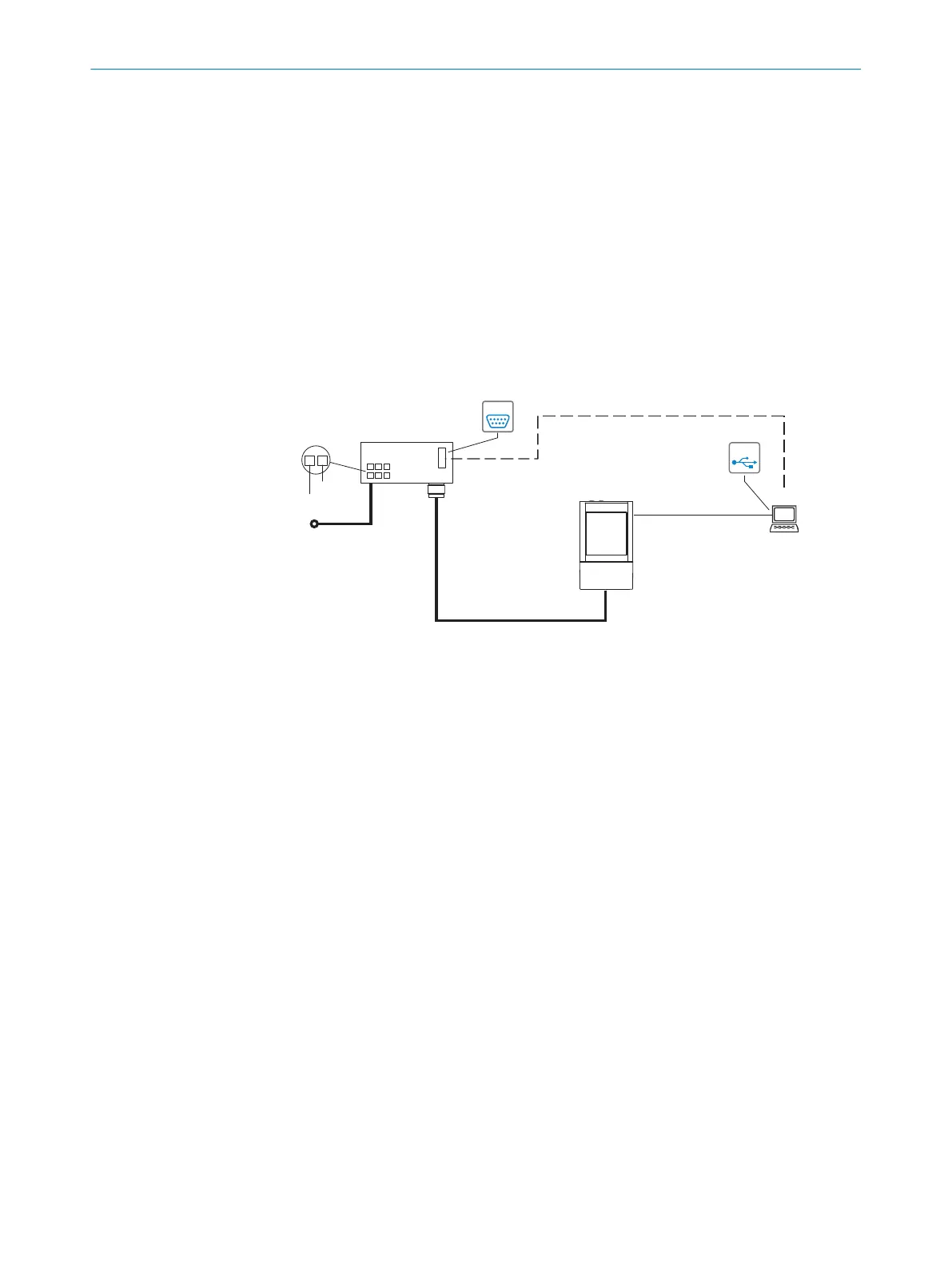

Figure 20: Lector621 ECO commissioning: connection block diagram
1
Supply voltage V
S
(V
S
= U
V
)
2
Connection module CDB620 or CDM420
3
Null modem cable (female connector, D-Sub, 9-pin/female connector, D-Sub, 9-pin),
crossed TxD and RxD
4
Serial RS-232, alternative to USB, but no image transmission
5
USB, alternative to Serial RS-232. USB only for temporary use as a service interface.
6
Adapter cable (male connector, USB, Micro-B type / male connector, USB, type A)
7
Configuration with SOPAS ET, image display or reading diagnostics
6.3.2 Connection principle for read mode
Lector621
6 ELECTRICAL INSTALLATION
38
O P E R A T I N G I N S T R U C T I O N S | Lector621 8022502/15NT/2020-02-11 | SICK
Subject to change without notice
