SICK Lector63x Flex C-mount - Page 81

Switching behavior PNP switching to supply voltage V
S
Default settings in the device: no function, logic: not inverted (active
high)
Properties
•
Short-circuit protected and temperature protected
•
Not electrically isolated from V
S
Electrical values 0 V ≤ V
out
1)
≤ V
S
(V
S
−1.5 V) ≤ V
out
≤ V
S
at I
out
2)
≤ 100 mA
1)
Output voltage.
2)
Output current.
NOTE
Assign the functions for the digital outputs in the device using a configuration tool, e.g.,
the configuration software SOPAS ET.
13.2.10 Wiring the external digital outputs of the device in the CDB650-204
Device = Lector63x = V2D63xx-xxxxBx
Load (e.g. PLC) 3
GND
V
out
For inductive load: 5
Device 1
AUX
(RS-232)
CDB650-204
CMC600 2
U
IN
*
“External
output A” 6
C
EXT. OUT B
22
GND
6
Shield
4

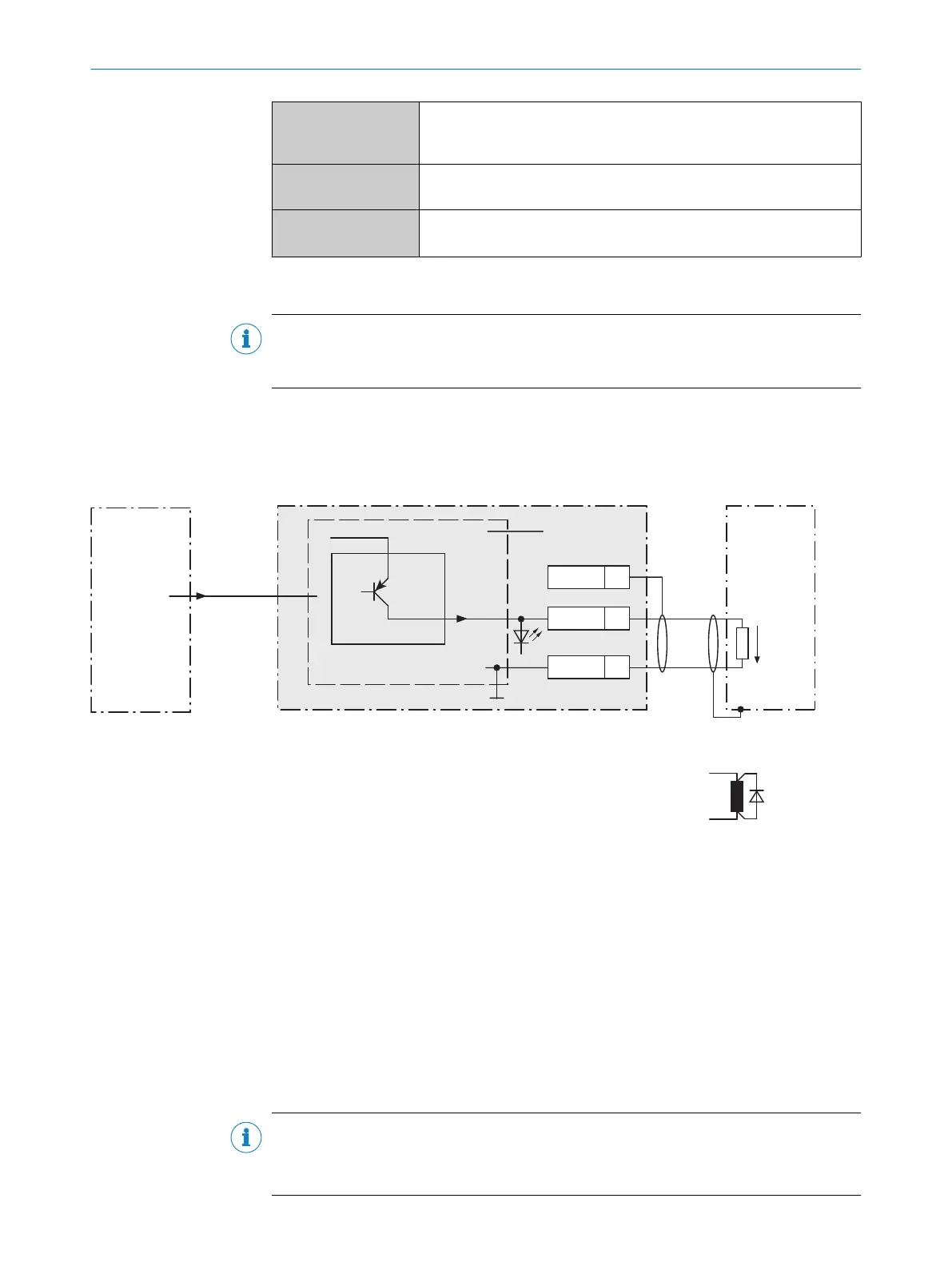

Figure 29: Wiring external “External output 1” and “External output 2” digital outputs of the device in the CDB650-204
connection module.
1
Device
2
The optional CMC600 parameter cloning module is required in the connection module in order to use the additional
external digital inputs and digital outputs of the device.
3
Load (e.g. PLC)
4
Output voltage V
out
5
With inductive load: see note
6
Logical “External output” in the device
Inductive load
NOTE
Provide an arc-suppression switch at the digital output if inductive load is present.
b
Attach a freewheeling diode directly to the load for this purpose.
ANNEX 13
8018071/1E1C/2021-12-16 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector63x Flex C-mount and S-mount
81
