SICK TiM3 Series - Product Identification

Position Description Characteristic
3 Performed by 1: 4 m measuring range, performance basic
2: 4 m measuring range, performance advanced
5: 10 m measuring range, 1.0° angular resolution,
performance professional
6: 10 m measuring range, 0.33° angular resolution,
performance professional
4 Housing 0: Housing IP65 without heating
5 “Empty”: standard
6 Connection 01: Cable 12-pin (2.0 m), open strand
10: Cable (approx. 0.9 m) with male connector, D-
Sub-HD, 15-pin
11: Cable (approx. 0.8 m) with M12 male connec‐
tor, 12-pin, D-coded
7 Application 30: Standard field evaluation
31: Flexible field evaluation
34: Flexible field evaluation with contour fields and
particle filters
8 Laser type 0: Pulse power up to 880 mW, pulse width up to
5 ns, pulse rate 500 kHz
1: Pulse power up to 880 mW, pulse width up to
5 ns, pulse rate 1,500 kHz
9 Color 00: Blue
NOTE
Not all combinations are possible according to the type code. The available device
variants can be found online at:
•
www.sick.com/TiM3xx

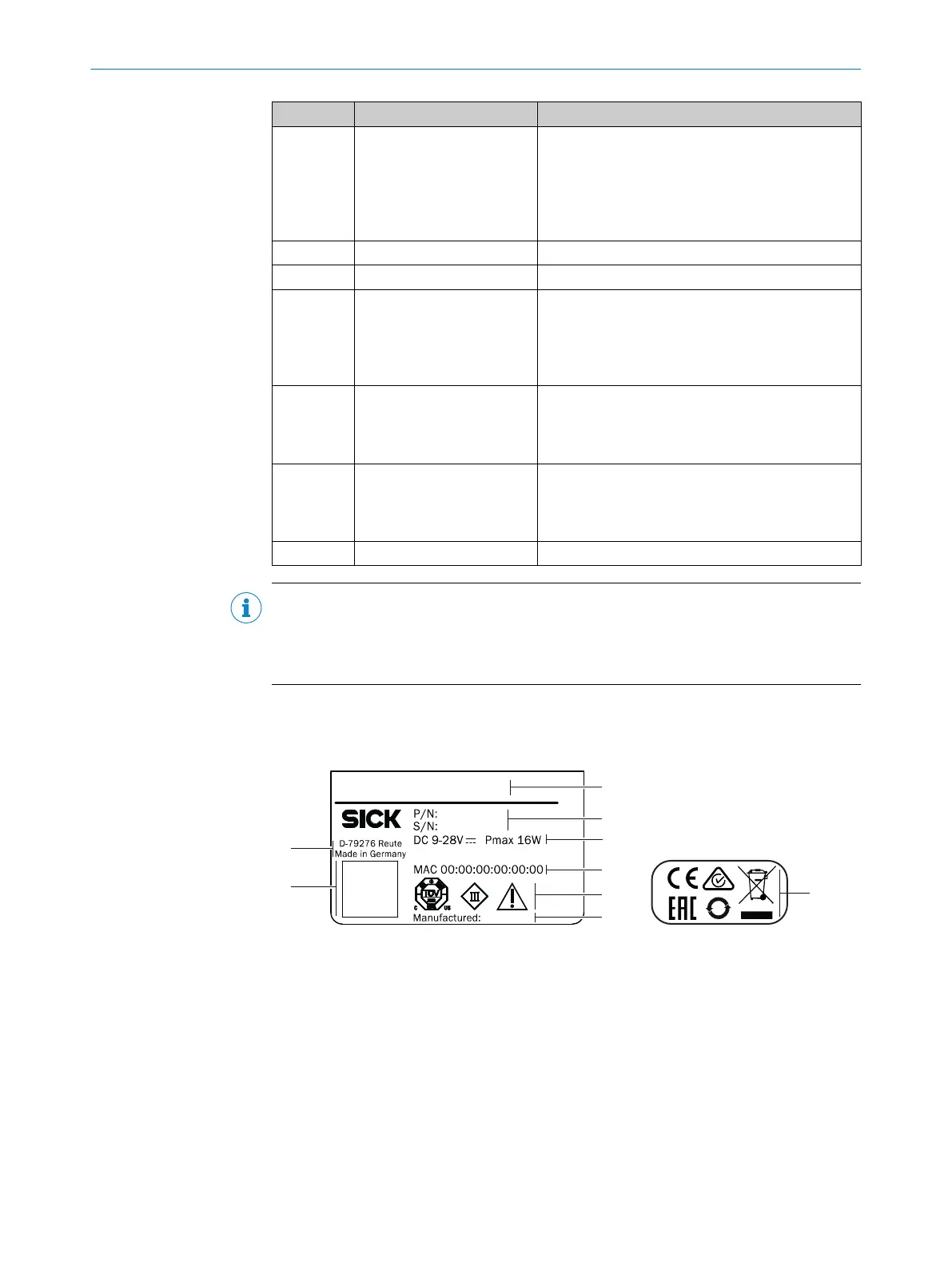

3.5 Product identification
The type label gives information for identification of the product variant.
TIM351-2134001
1067299
1916 0001
April 2019
1
2
3
4
5
6
8
7
9
25
1
Type code
2
Part number, serial number
3
Voltage supply, maximum power consumption
4
MAC address
5
Conformity mark/certification mark, symbol: Observe the operating instructions!
6
Production date
7
DataMatrix code with product data (part number, serial number, MAC address)
8
Manufacturer/production location
9
Conformity mark/certification mark
