SICK ZLD18 - 4 Mounting; 5 Electrical installation

-xKxxxx
-x6xxxx
-xxKxxx

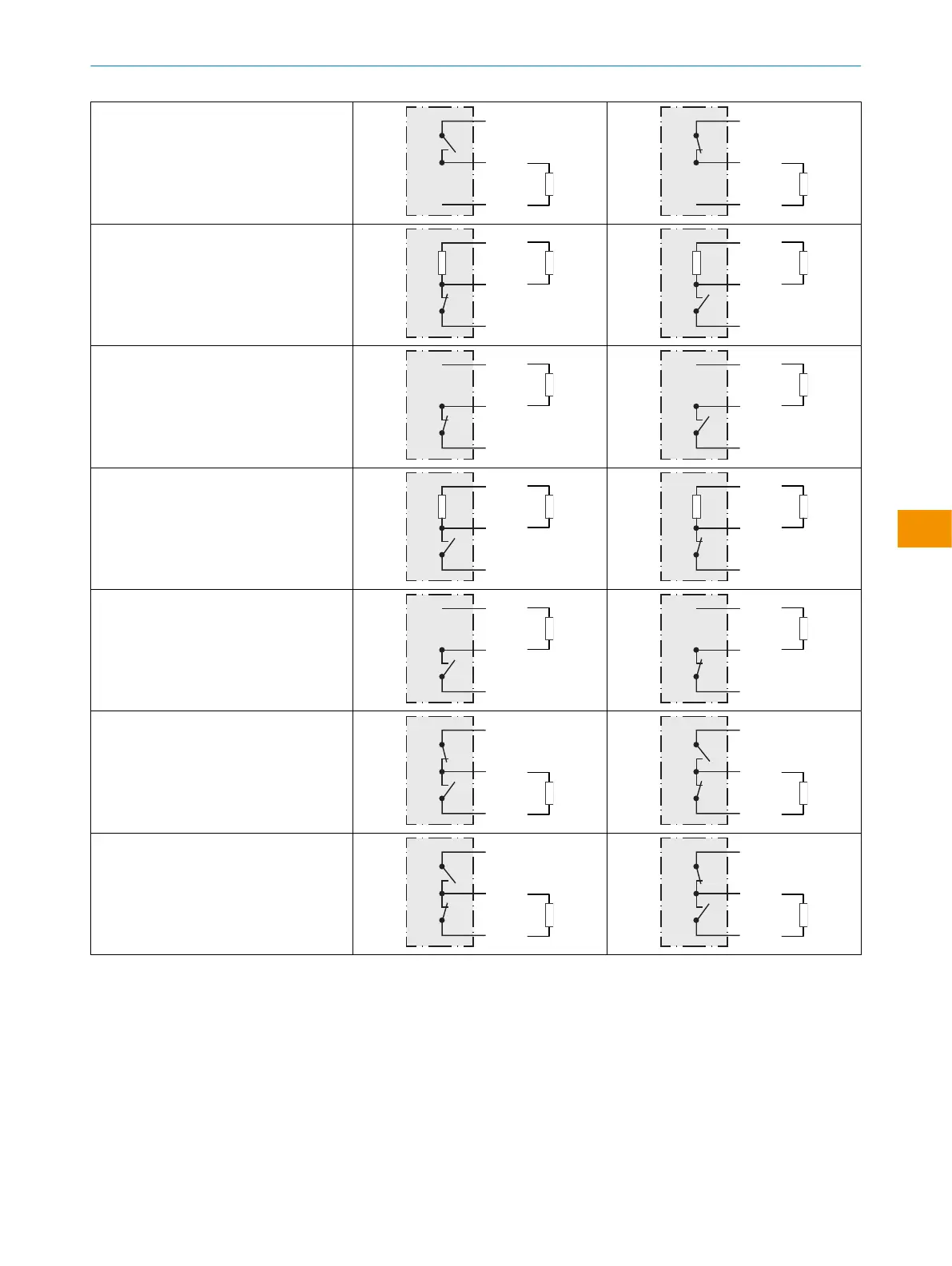

D.ON, PNP Open Collector Q (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-xNxxxx
-x7xxxx
-xxNxxx
L.ON, NPN: Q (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-xGxxxx
-x3xxxx
-xxGxxx
L.ON, NPN Open Collector Q (≤ 100 mA)
+ (L+)
Q
‒ (M)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-xExxxx
-x1xxxx
-xxExxx
D.ON, NPN: Q (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-xJxxxx
-x5xxxx
-xxJxxx
D.ON, NPN Open Collector Q (≤ 100 mA)
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
+ (L+)
Q
‒ (M)
Load
-xAxxxx
-XRxxxx
-xxAxxx
L.ON, Push-pull (≤ 100 mA)
1
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
-xBxxxx
-xSxxxx
-xxBxxx
D.ON, Push-pull (≤ 100 mA)
1
+ (L+)
Q
‒ (M)
Load
+ (L+)
Q
‒ (M)
Load
1
PNP output diagram pictured; NPN also possible by connecting the Load to + (L+) and Q
