Sicunet SHR-7004 - Front Panel Description

Fig 2-2

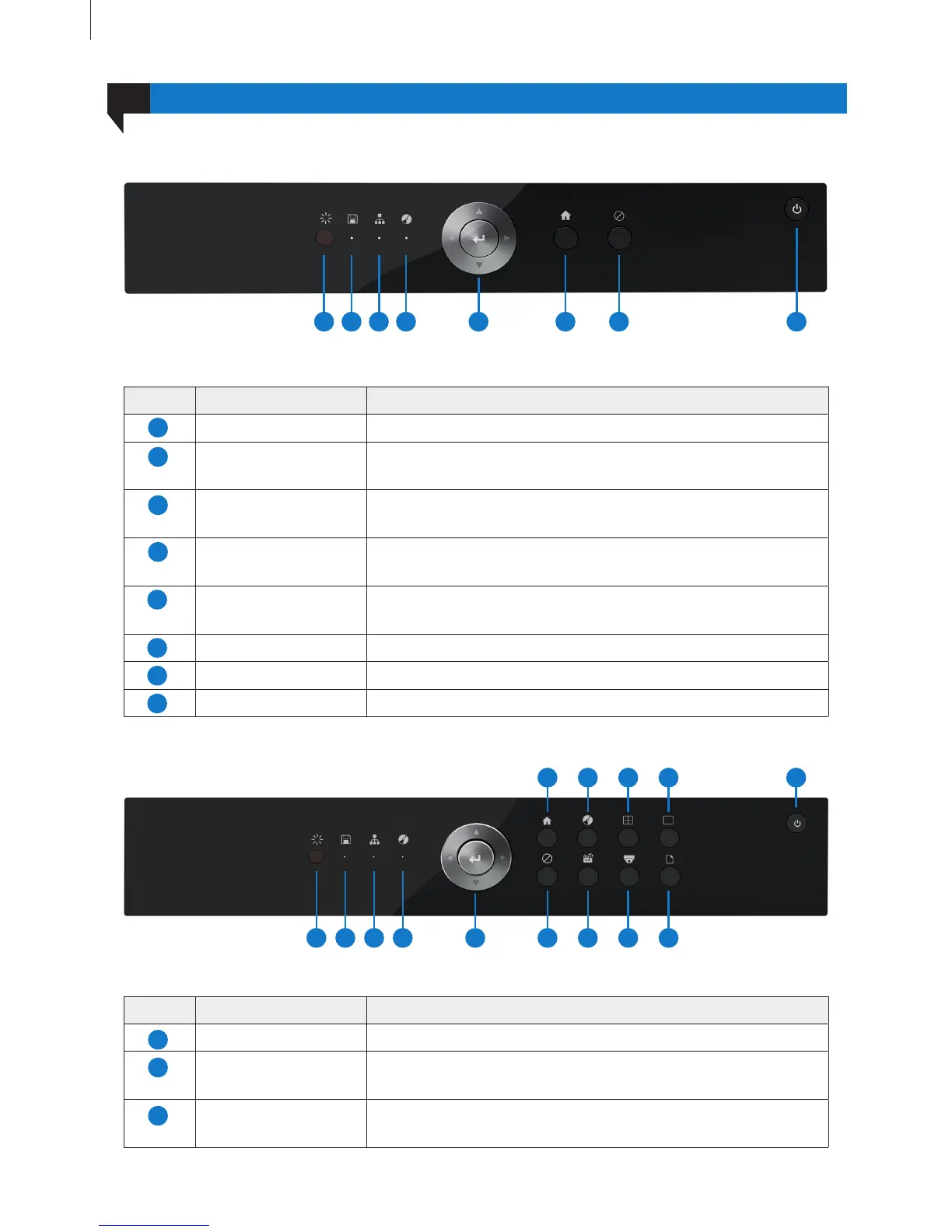

Front Panel Description
Fig 2-3
Item Name Description
IR Receive the signal of remote controller.
HDD Hard disk status indicator.
When HDD is writing or reading, the light is white.
Network Network connection indicator.
When the network connection is successful, the light is white.
12
Item Name Description
IR Receive the signal of remote controller.
HDD Hard disk status indicator.
When HDD is writing or reading, the light is white.
Network Network connection indicator.
When the network connection is successful, the light is white.
Rec Recording status indicator.
When recording, the light is white.
Direction and Enter Direction keys: change direction to select items.
Enter key: conrm selection.
Menu Go to the Main Menu.
Cancel Return to the previous menu or interface.
Power Power on/off the DVR.
