Sicunet SHR-7004 - Rear Panel Description

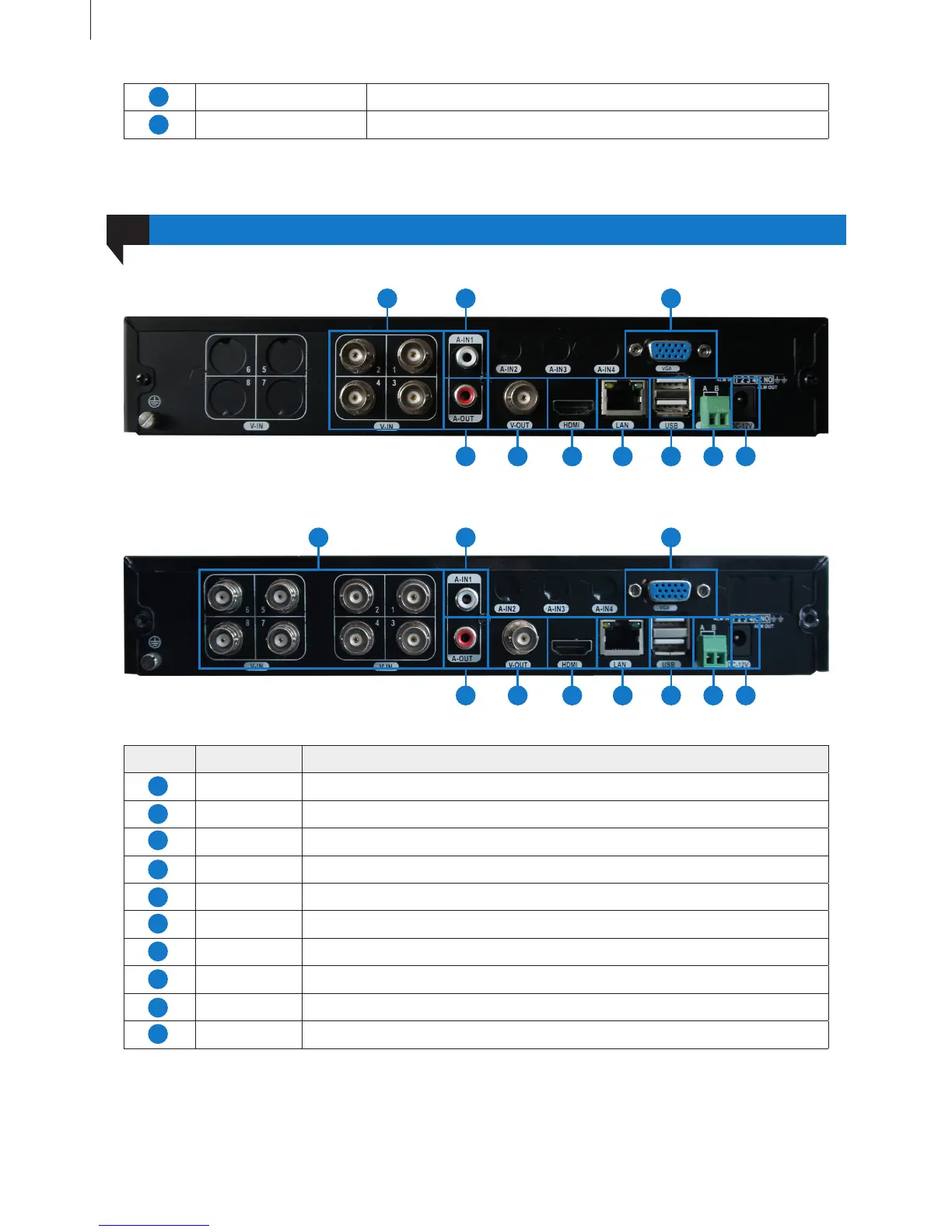

Rear Panel Description
Fig 2-5
Item Name Description
V-IN Video signal input.
A-IN Audio input: connect to pickup and other audio collecting equipment.
A-OUT Audio output: connect to sound box and other audio output equipment.
V-OUT CVBS video signal output: connect to monitor with BNC interface.
HDMI port HD 1080P video signal output: connect to high-denition display.
LAN port Network connector.
VGA port VGA output: connect to monitor.
USB port USB connector: connect to USB mouse, USB disk, mobile HDD, etc.
RS-485 RS-485 communication port: connect to PTZ, keyboard, etc.
DC 12V Power input: DC 12V
Fig 2-6
Power Power on/off the HD-SDI DVR.
USB Port Connect to USB mouse, USB disk, mobile HDD, etc.
14
14
15
04
Getting Started
1
3
10
5
7
2
9
4
6
8
1) SHR-7004
103
1 2 7
4 5 6 8 9
2) SHR-7008
103
1 2 7
4 5 6 8 9
