10.3 High-performance Heat Sink
This solution is suited for average and low performance applications:

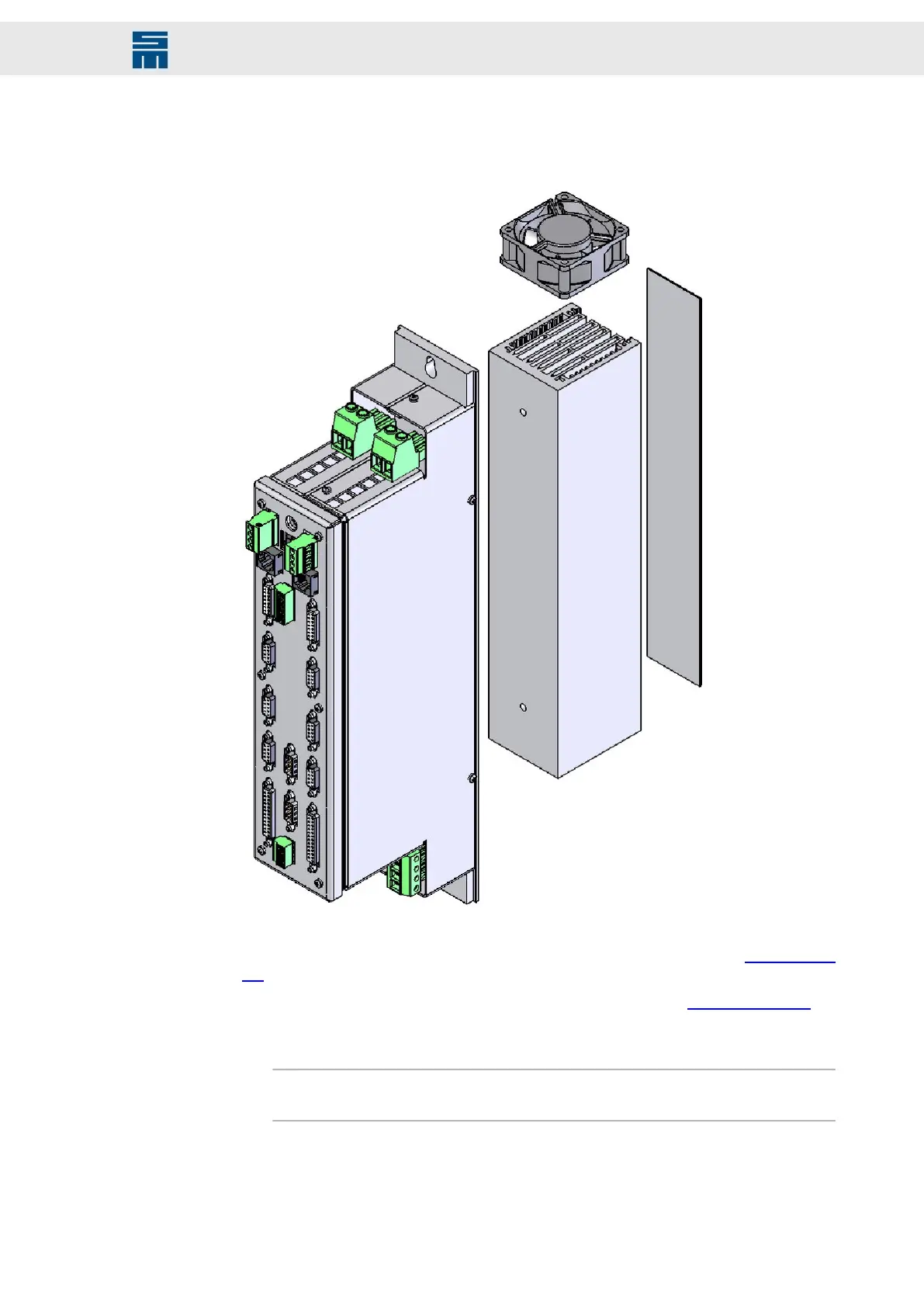

Fig. 77: Mounting the SD2 to a high-performance heat sink
Fig. 77: Mounting the SD2 to a high-performance heat sink
Cooling aggregates for control cabinets with space cooling are available at SIEB & MEY-
ER.
Cooling aggregates of the series LA are for example available at Fischer Elektronik.
1. Fix the heat sink at the 2 M6 holes on the drive amplifier by means of 2 M6 screws.
Note
The length of the screws must be appropriate for the tap holes of the drive amplifier.
2. When mounting the drive amplifier with the heat sink in a mounting frame, you must
ensure that the heat sink is jet through the mounting frame in that way that lost heat
is led outside the switch cabinet.
101Drive System SD2 - Hardware Description
Mounting Example with External Heat Sink
