Double-axis Drive Amplifiers
7.3.1
Dimensions
Fig.
45
:
Dimensions
of
0362113xxy
in
mm
(inch)

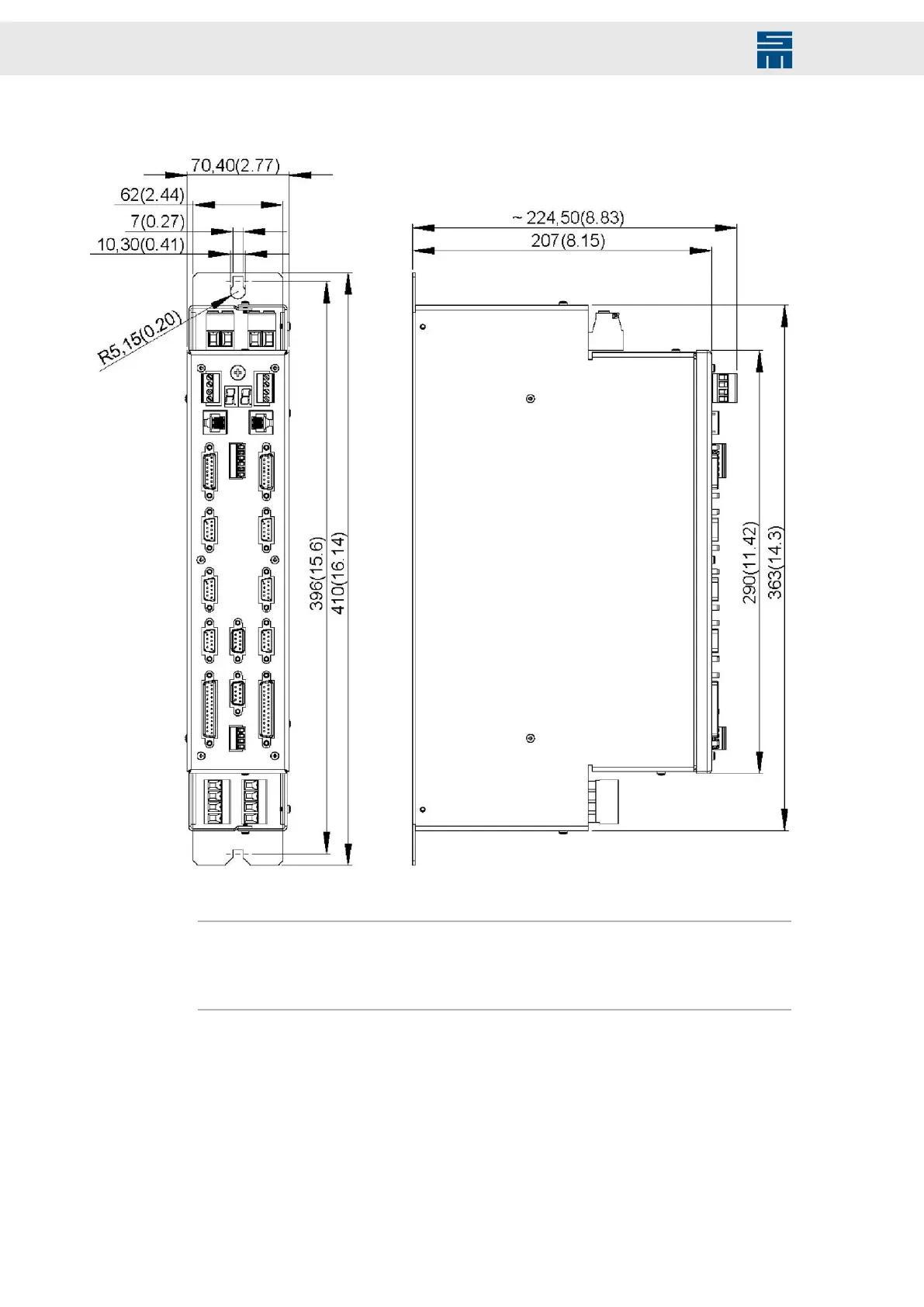

Fig. 45: Dimensions of 03621
13xxy in mm (inch)
Note
For
the
installation
consider
that
the
heads
of
the
cabinet
screws
located
on
the
long
sides of
each
module
overlap up
to
2 mm.
This
causes
a module
gap
of
at least
4
mm
when several modules are combined in an assembly group.
68
Drive System SD2 - Hardware Description
67
69
