5.3 Device Designation
e.g.0362115EIF 3.000
Device type Device version

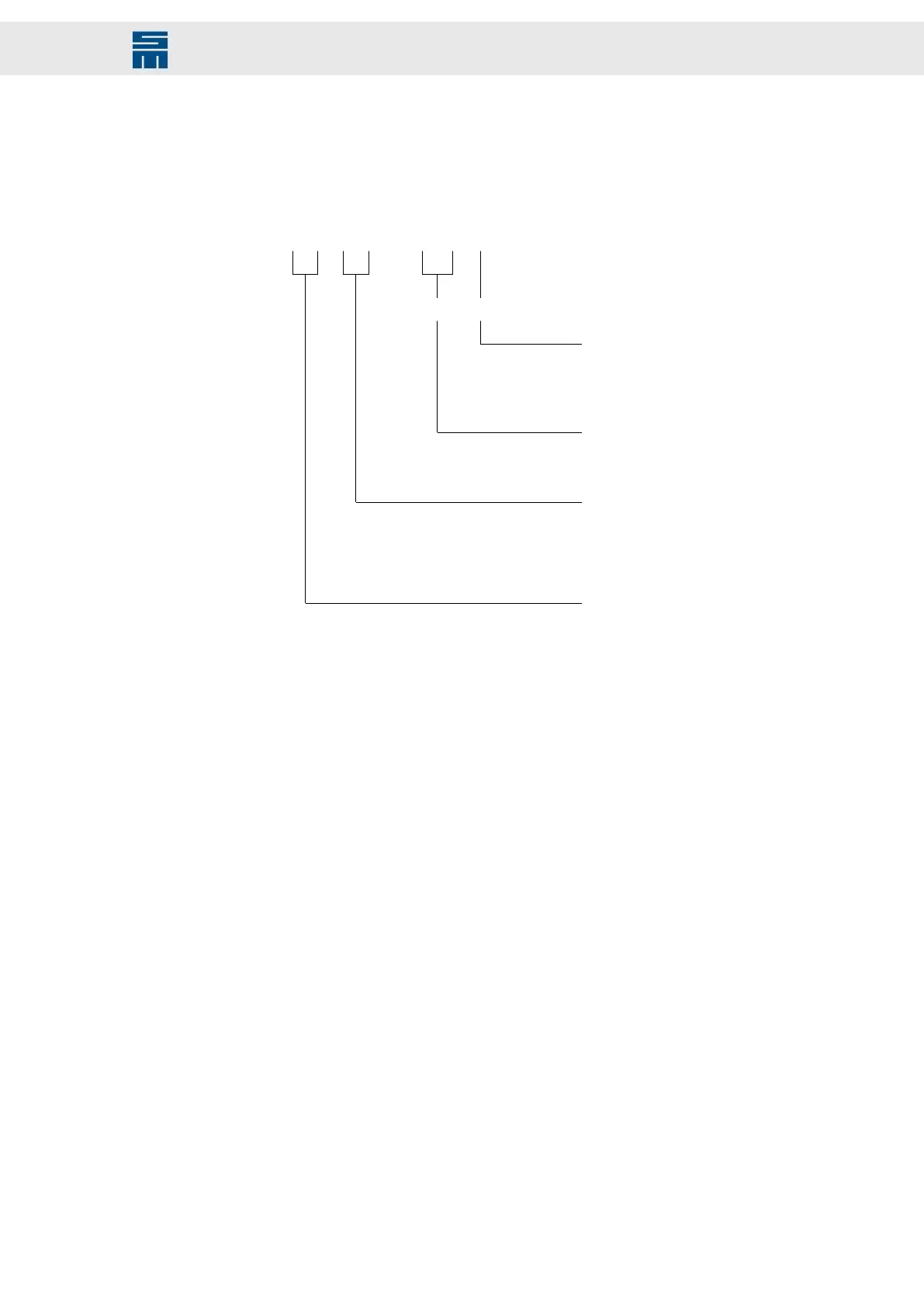

0 3 6 x x x x - x ( x ) y
Performance range
Voltage class
▸
C = up to 325 V
DC
▸
F = up to 675 V
DC
Current range
▸
see technical data
Specific type code
▸
10 - 15 = drive amplifiers SD2
▸
30, 31 = compact device SD2
▸
90, 91, 93 = power supply unit PS2
Module type
▸
21 = series SD2xPS2 /
Device version X.XXX
Serial counter. If there is no device version, 0.000 is indicated here. If a device is
exchanged by a device of another version, please contactSIEB & MEYER to check
whether the devices are compatible or not.
In addition, the device version indicates the update capability of the internal device soft-
ware, e.g. BIOS, FPGA or Firmware.
23Drive System SD2 - Hardware Description
Drive Amplifier SD2
