Dimensions
Fig.
72
:
Dimensions
of
0362193
in
mm
(inch)

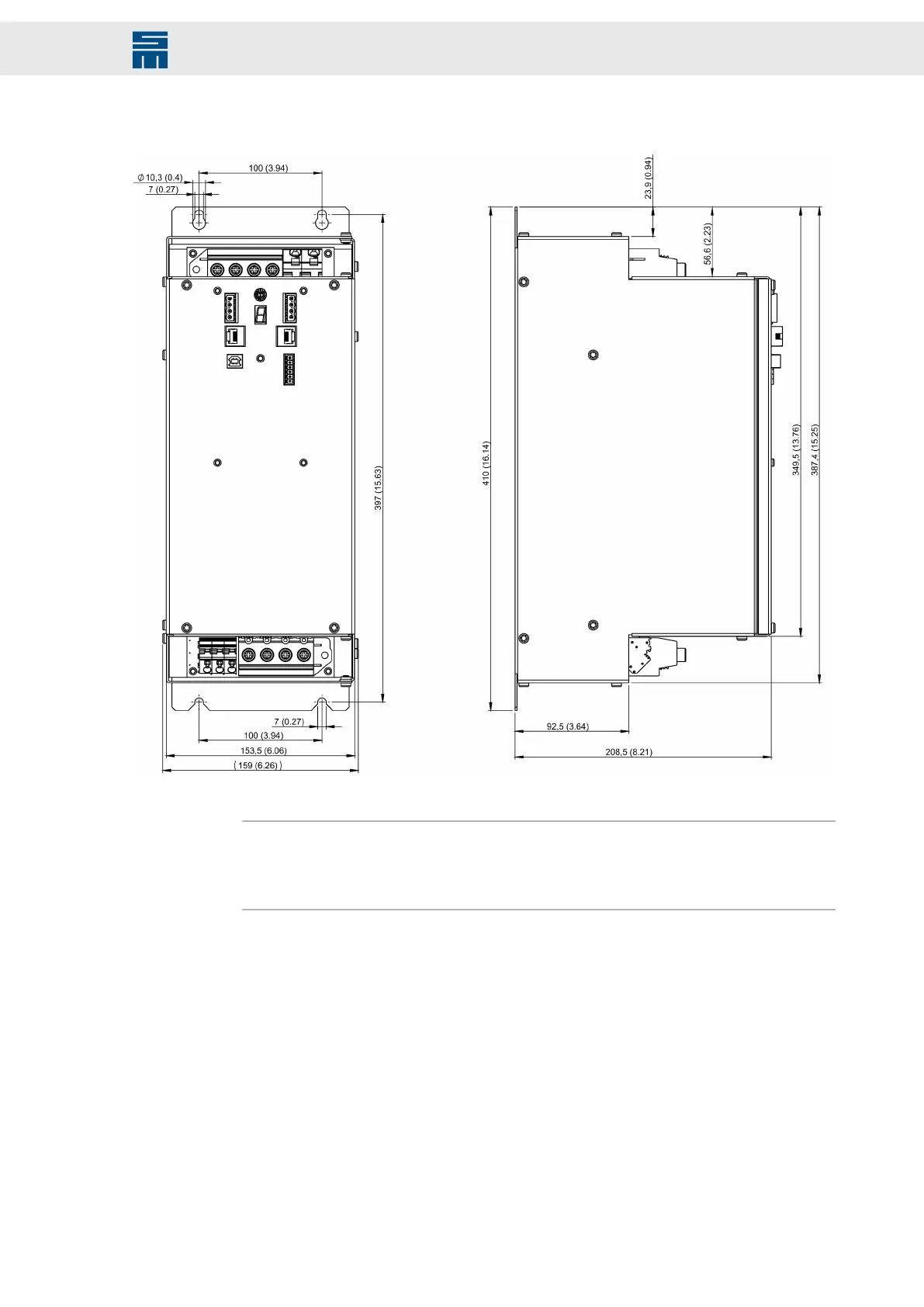

Fig. 72: Dimensions of 0362193 in mm (inch)
Note
For
the
installation
consider
that
the
heads
of
the
cabinet
screws
located
on
the
long
sides of
each
module
overlap up
to
2 mm.
This
causes
a module
gap
of
at least
4
mm
when several modules are combined in an assembly group.
95
Drive System SD2 - Hardware Description
Power Supply Unit PS2
94
96
