9.2.1
Dimensions

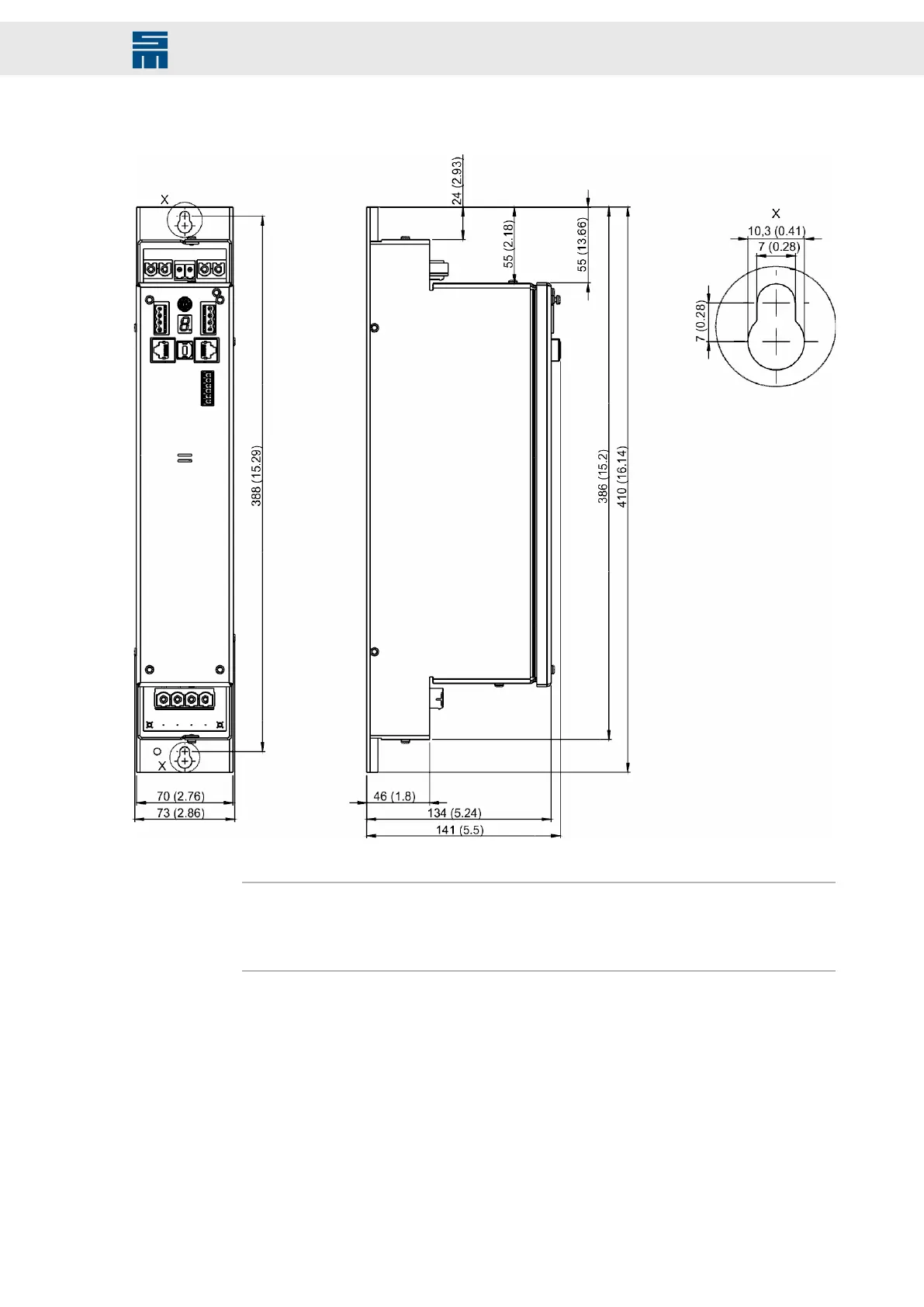

Fig.
64
:
Dimensions
0362190y
in
mm
(inch)
Fig. 64: Dimensions 0362190y in mm (inch)
Note
When
installing
the
first
and
the
last
module,
consider
that
the
heads
of
the
cabinet
screws located
on the
long sides
of each
module overlap up to
2 mm.
Since the
screws
are fastened staggered to each other
, this is negligible between two modules.
87
Drive System SD2 - Hardware Description
Power Supply Unit PS2
86
88
