13.8 X10 – Safety Circuit (STO)
Note
See also chapter 19 “Safety circuit / restart lock (STO)”, page 176.
13.8.1 Wiring with OSSD
OSSD = output signal switching device

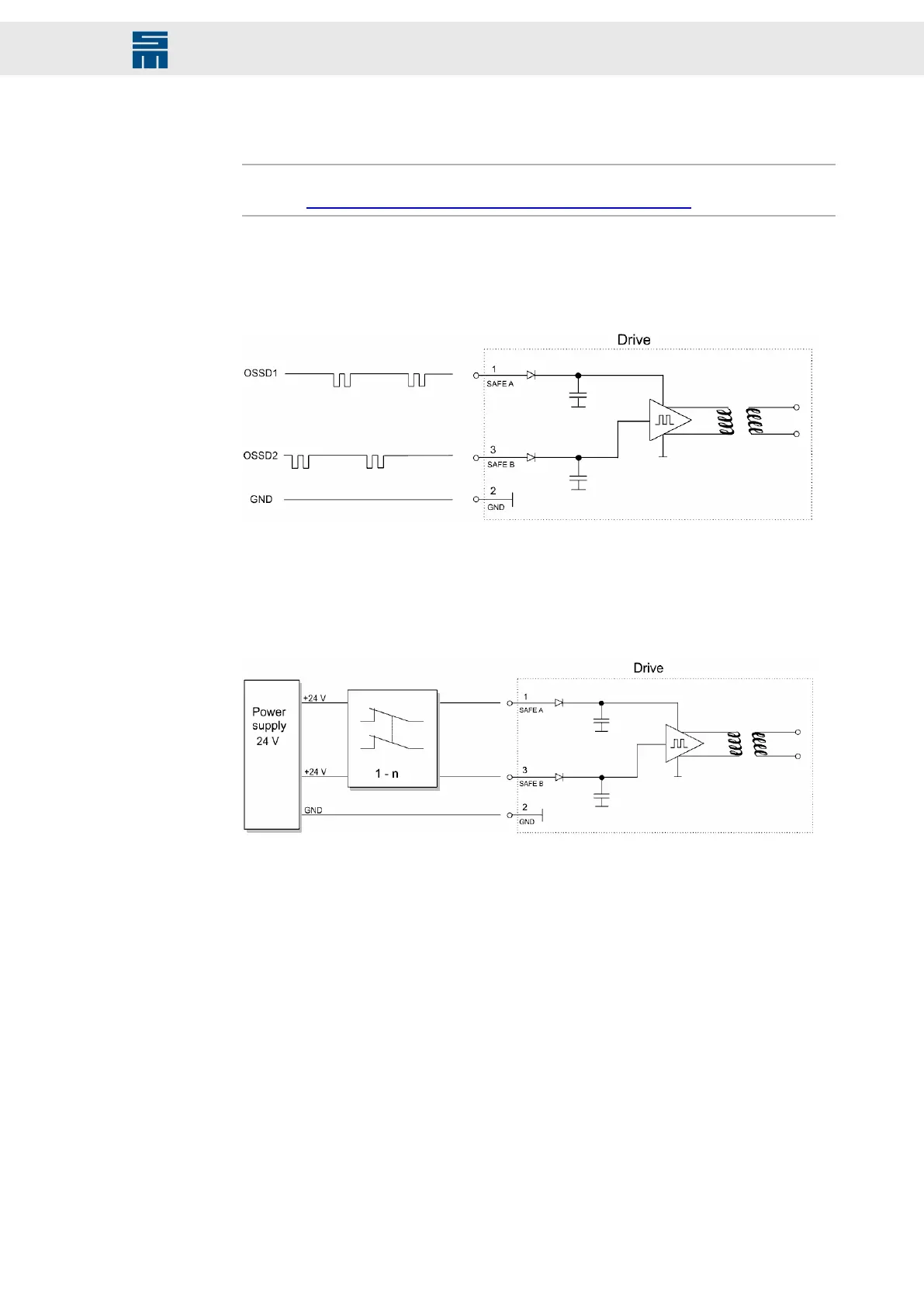

Fig. 87: Safety circuit (STO) - wiring with OSSD
Fig. 87: Safety circuit (STO) - wiring with OSSD
13.8.2 Wiring without OSSD
OSSD = output signal switching device
Fig. 88: Safety circuit (STO) - wiring without OSSD
Fig. 88: Safety circuit (STO) - wiring without OSSD
147Drive System SD2 - Hardware Description
Connection Examples
