Connection
6.2 Electrical connection
Synchronous/induction motors 1PH813
Operating Instructions, 04/2009, 610.48000.22
43
Star/delta connection
A star/delta connection is implemented by means of an external contactor circuit or as a
fixed configuration in terminal box gk826.
Standard configuration: star connection via jumpers
: 8 9
8 9 :
6WDUFRQQHFWLRQ 'HOWDFRQQHFWLRQ
: 8 9
8 9 :
6WDQGDUG

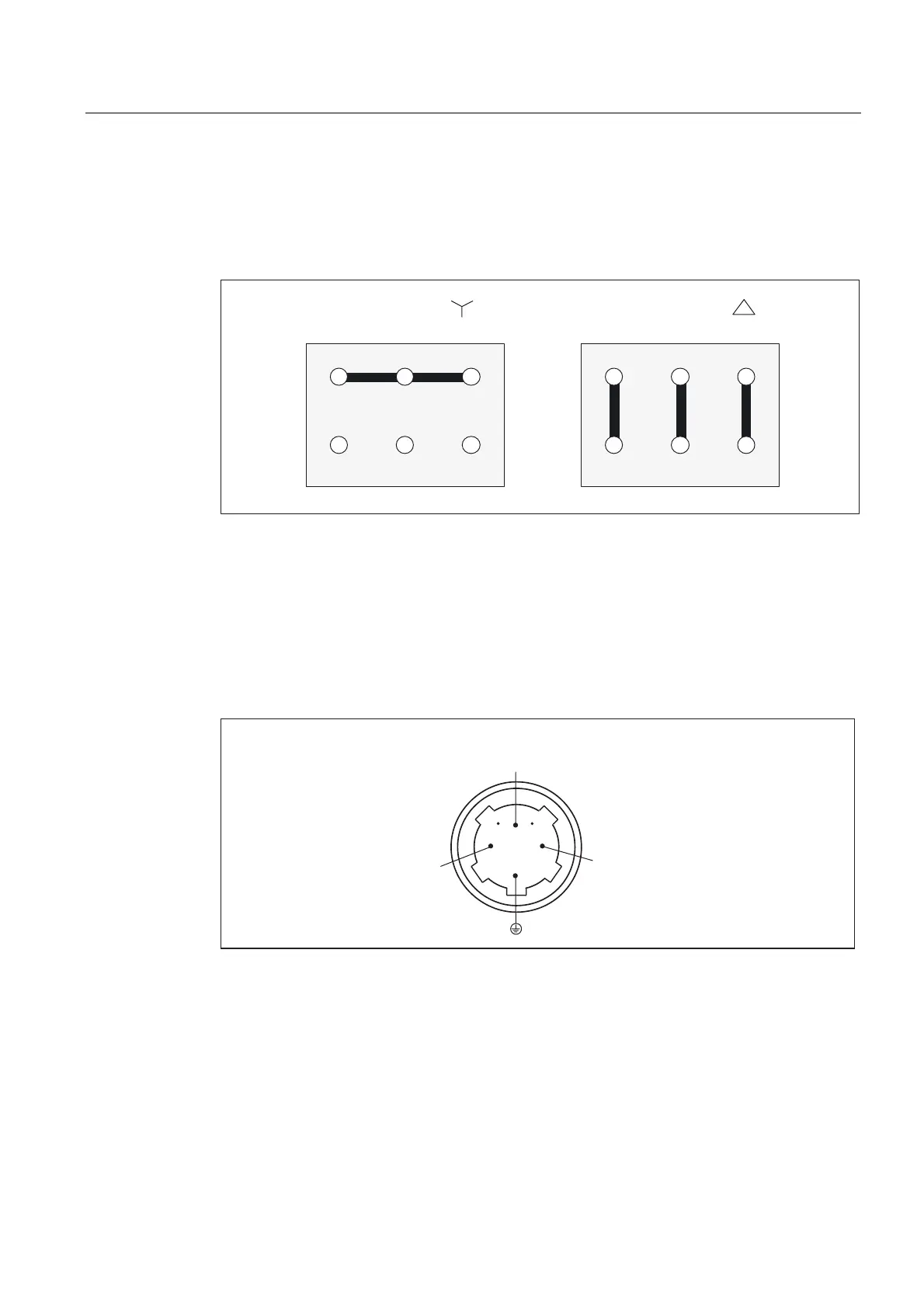

Figure 6-5 Fixed star/delta connection in the terminal box
6.2.5 Power connector
● Use connector size 3.
● Assign the connector as shown in the "Power connector" diagram. Connect the protective
conductor.
&RQQHFWRUVL]H
*1<(
8
9
:
Figure 6-6 Power connector (view of connector pins)
