Siemens 1PH813 - Motors Without DRIVE-Cliq Interface

Connection
6.2 Electrical connection
Synchronous/induction motors 1PH813
Operating Instructions, 04/2009, 610.48000.22
45
The signal connection between the motor and Motor Module is established by means of a
MOTION-CONNECT DRIVE-CLiQ cable. The MOTION-CONNECT DRIVE-CLiQ cable
connector must be inserted far enough so that the catch springs engage.
(QFRGHULQWHUIDFHYLD'5,9(&/L4
0RWRU
0RGXOH
3RZHUFDEOH
0RWRU
[9'&SRZHUVXSSO\
['5,9(&/L4VLJQDOFDEOH
˽
'5,9(&/L4

(
0
a
6,1$0,&66

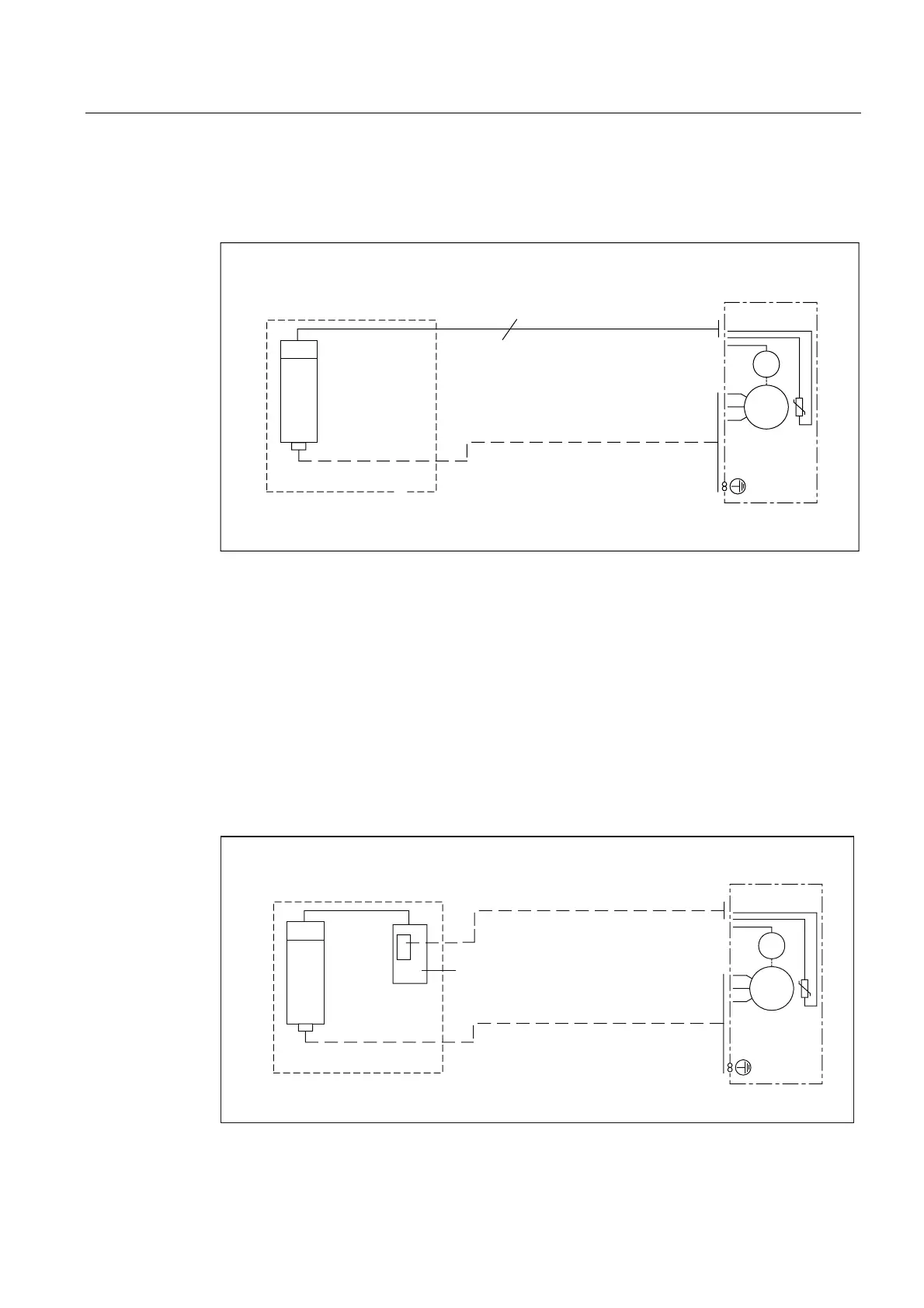

Figure 6-8 Encoder interface with DRIVE-CLiQ
6.2.8 Motors without DRIVE-CLiQ interface
If a motor is not equipped with a DRIVE-CLiQ interface, the speed encoder and temperature
sensor are connected via a signal connector.
Motors that are not equipped with DRIVE-CLiQ require a Cabinet-Mounted Sensor Module
when operated with SINAMICS S120. The motor is connected to the Cabinet-Mounted
Sensor Module via the signal cable. The Cabinet-Mounted Sensor Module is connected to
the Motor Module via a MOTION-CONNECT DRIVE-CLiQ cable.
(QFRGHUFRQQHFWLRQYLD6HQVRU0RGXOH&DELQHW
3RZHUFDEOH
6LJQDOFDEOH
0RWRU
(
0
a
6,1$0,&66
'5,9(
&/L4
˽
0RWRU
0RGXOH
6HQVRU0RGXOH&DELQHW
Figure 6-9 Encoder interface without DRIVE-CLiQ
