Compact Operating Instructions in accordance with EN 61010-1 and EN 60079-0
16 A5E45779144002-01, 09/2018
4.2.4
Pin assignments
ULTRAMAT 23
Motherboard

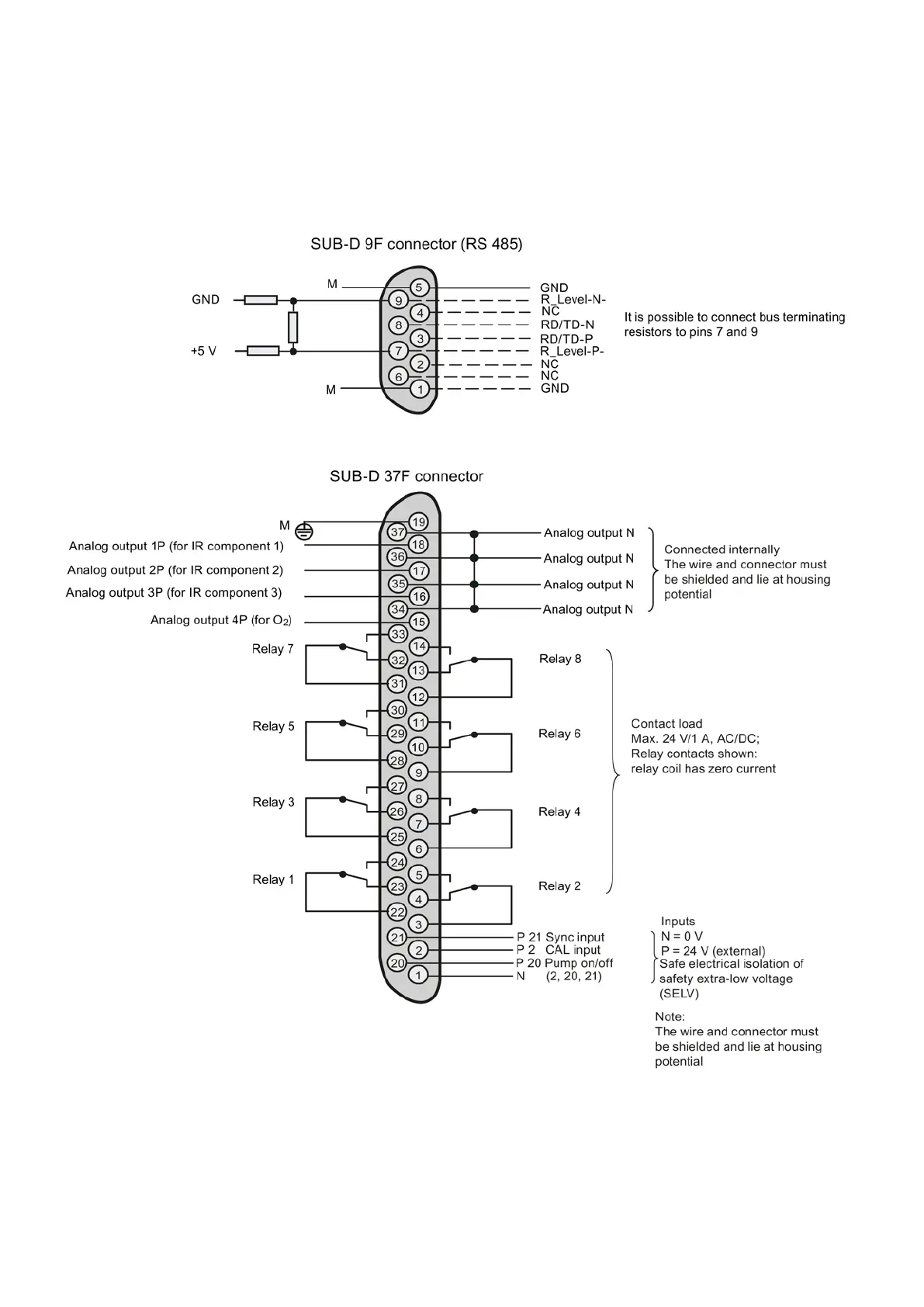

Figure 4-3 ULTRAMAT 23 motherboard
