Siemens 6 Series User Manual

Compact Operating Instructions in accordance with EN 61010-1 and EN 60079-0
A5E45779144002-01, 09/2018
19

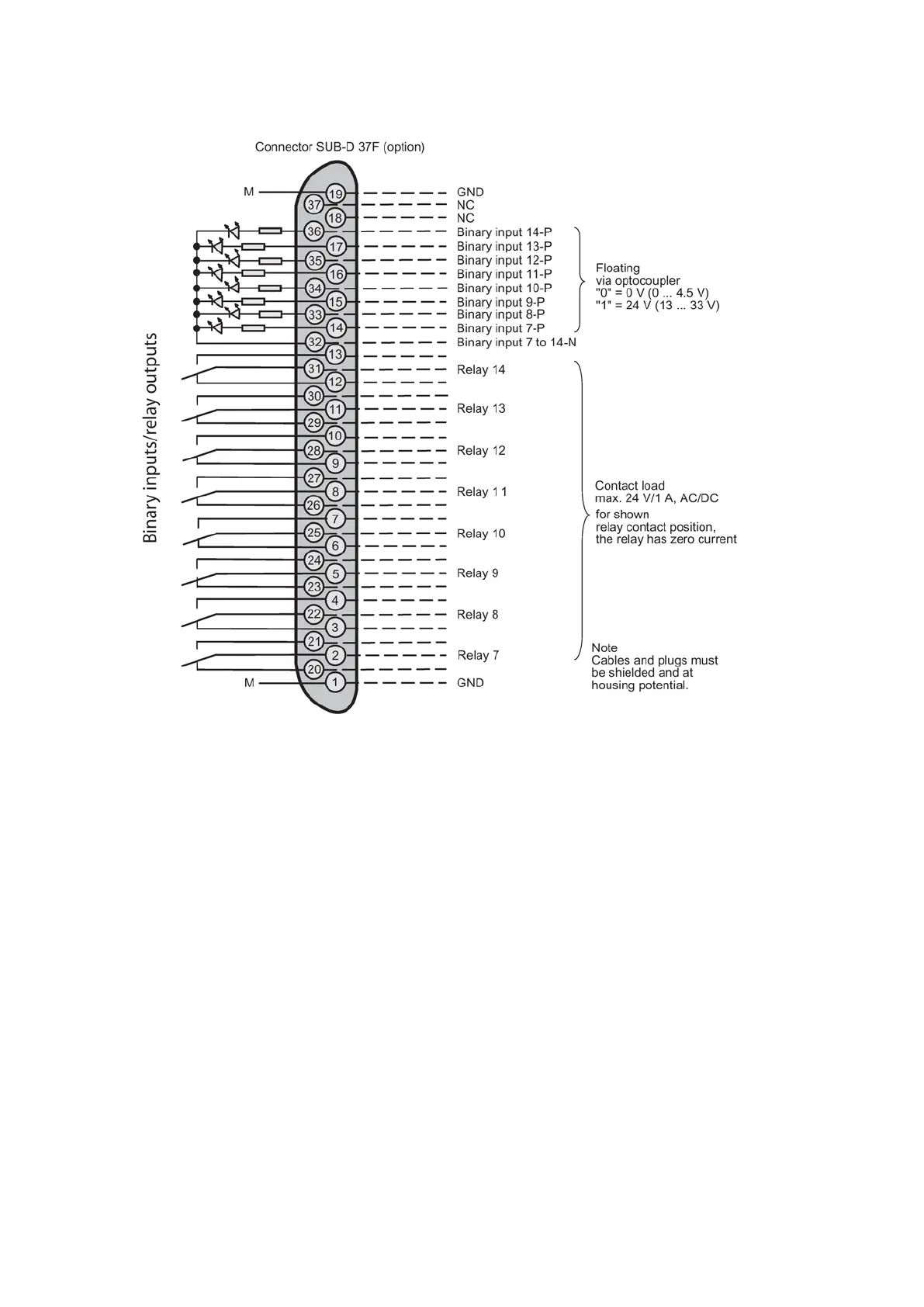

AUTOCAL board
Figure 4-6 AUTOCAL module of CALOMAT 6E
4.3
Gas connections
4.3.1
Gas preparation
To prevent contamination of parts through which the sample gas flows, the sample gas must be prepared appropriate to the
measurement. We recommend the following minimum configuration:
● Gas sampling unit with filter
● Analyzer filter (approx. 1-2 μm)
Depending on the characteristics of the sample gas it may be necessary to provide additional equipment such as an external
gas suction pump, sample gas cooler, wash bottle or pressure reducer.
4.3.2
FIDAMAT 6 gas connection
The
FIDAMAT 6
analyzer needs combustion air and combustion gas (hydrogen) as additional supply gases for operation.
