Operating manual PA
10
5 Quick Reference Guide

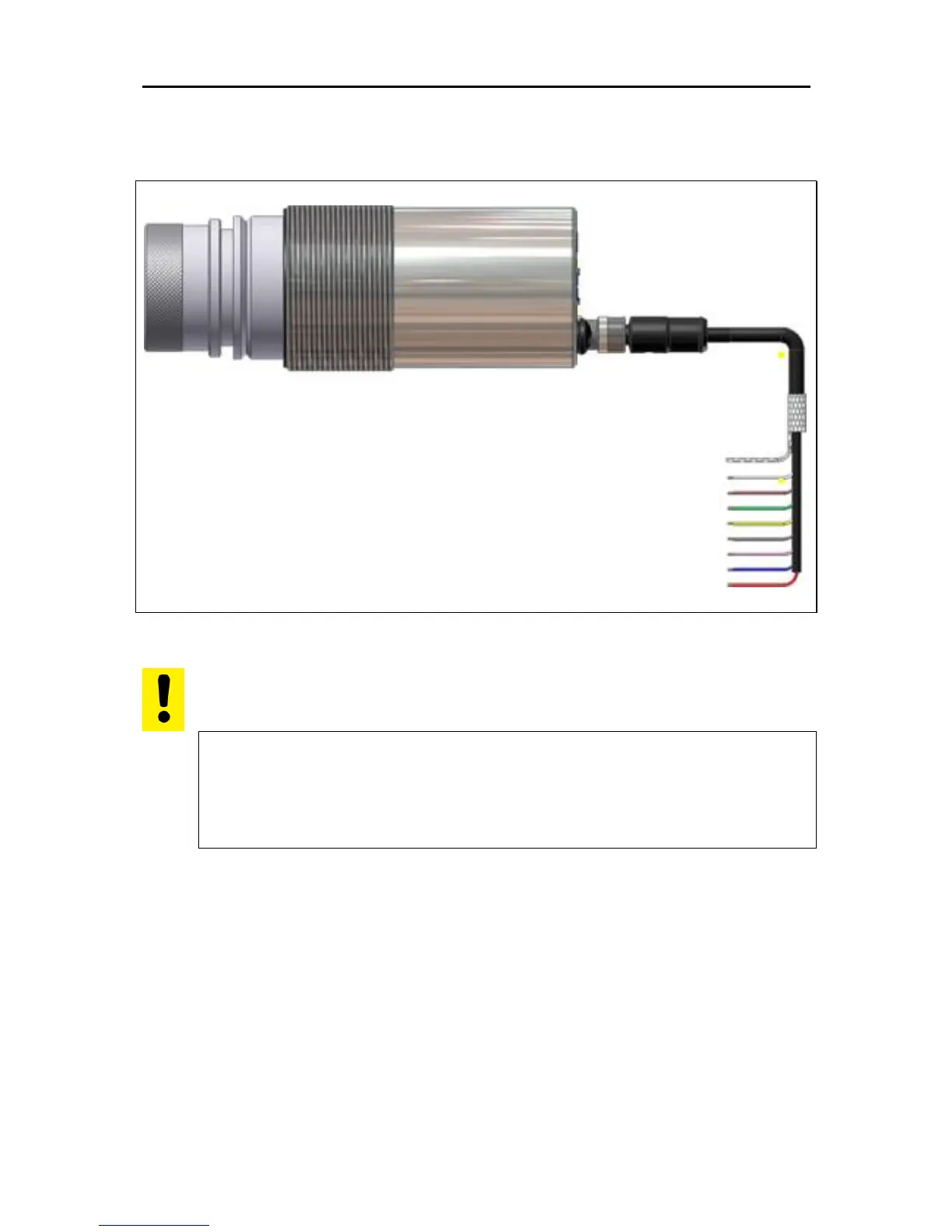

5.1 PA Connector Pin Assignment
CAUTION!
The pyrometer housing is connected to the signal ground via a
0.1  F/50V capacitor. Isolate any unused wires in order to avoid
the display of erroneous data.
Power Requirement 24 V DC
The instrument works with an operating voltage of 24 V DC. The voltage
required for operation must be supplied by a separate power supply. This
power supply unit must conform to directive DIN IEC 61010.
The supply voltage is  135 mA for standard design, 150 mA for models
with laser sighting and 175 mA with camera. PA pyrometer is equipped
with inverse polarity protection. The output currents and voltages share
one ground connection via pin 8 of the connector.
+ 24 V DC
Digital in- / output 1
Analogue output 2
Analogue output 1
Serial interface RS485 (A) (Tx-/D-)
Serial interface RS485 (B) (Tx+/D+)
Digital in- / output 2
GND
1 = white
2 = brown
3 = green
4 = yellow
5 = grey
6 = pink
7 = blue
8 = red
Shielding
