Operating manual PA
44
To set the pyrometer to the terminal mode, simultaneously hold down the
Ctrl key and press the E key twice in rapid succession.
Direct commands have an assigned key. Example: E for emissivity (epsi-
lon). Submenu settings are shown in brackets. Example: [LAMBDA 1]
12.1 Serial Data Transmission of Temperature Data
Transmission parameters for the serial interface:
57600 Baud / 8 data bits / odd parity / 1 stop bit / no handshake
Temperature format (one cycle):
Byte
Negative Temperature
Positive Temperature
Temperature falls below
measuring range
Temperature exceeds
measuring range
1
Minus symbol "-"
Space
Space
Space
2
Digit 1000
Digit 1000
Minus symbol "-"
Minus symbol "-"
3
Digit 100
Digit 100
"U"
"O"
4
Digit 10
Digit 10
"N"
"V"
5
Digit 1
Digit 1
"D"
"E"
6
Decimal point "."
Decimal point "."
"E"
"R"
7
Decimal place
Decimal place
"R"
Space
8
Space
Space
Space
Space
9
Unit "C" or "F"
Unit "C" or "F"
Minus symbol "-"
Minus symbol "-"
10
Space
Space
Space
Space
11
Carriage Return
Carriage Return
Carriage Return
Carriage Return

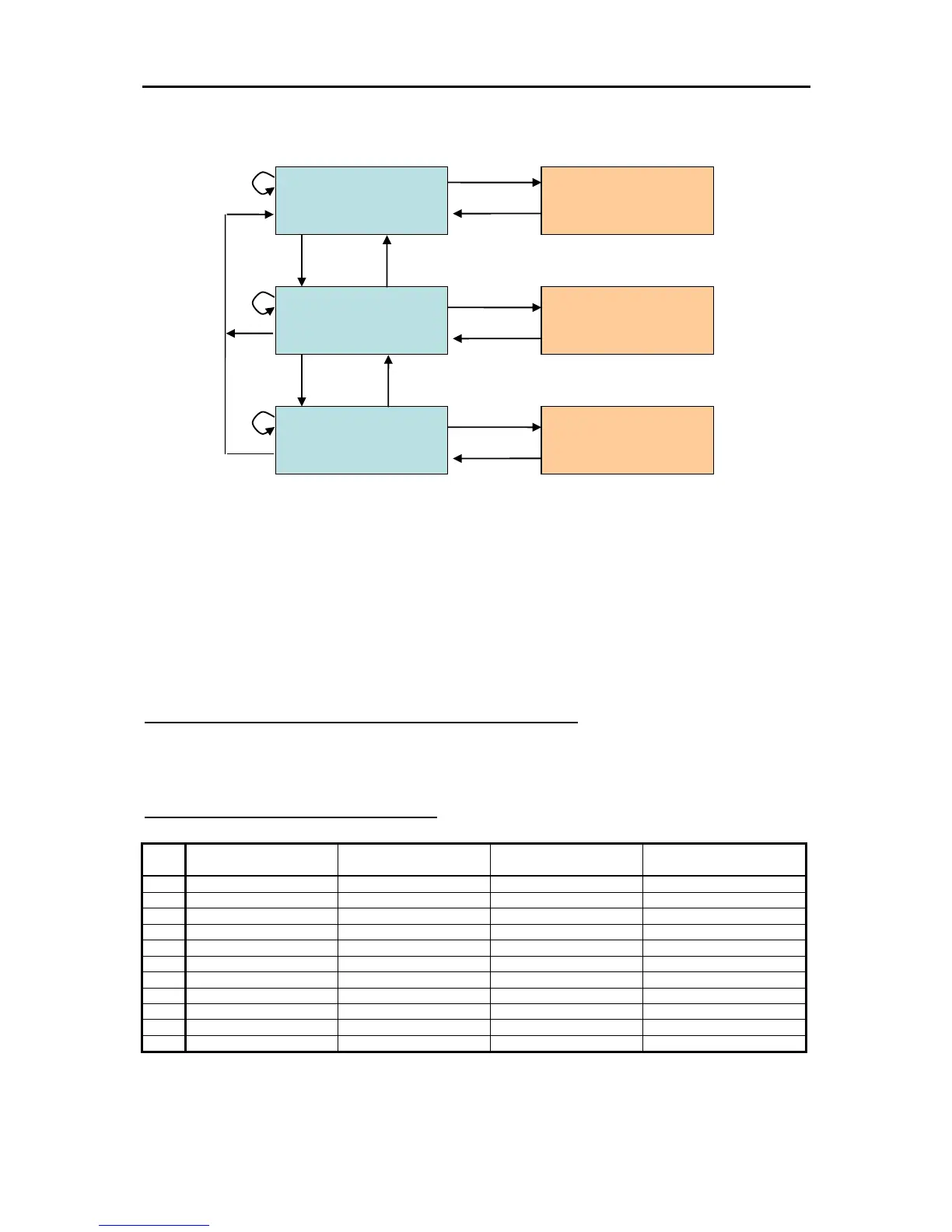

Please note:
Main Menu
Submenu 1
Submenu 2
Execute the
command
Execute the
command
Execute the
command
press
[RETURN]
or [ESC]
press
[RETURN]
or [ESC]
press
[RETURN]
or [ESC]
Select [KEY]
Select [KEY]
Press []
Backspace
Backspace
Enter
Enter
Enter
[ESC]
[ESC]
All symbols are ASCII coded; preceding zeros will be
included in the transmission
