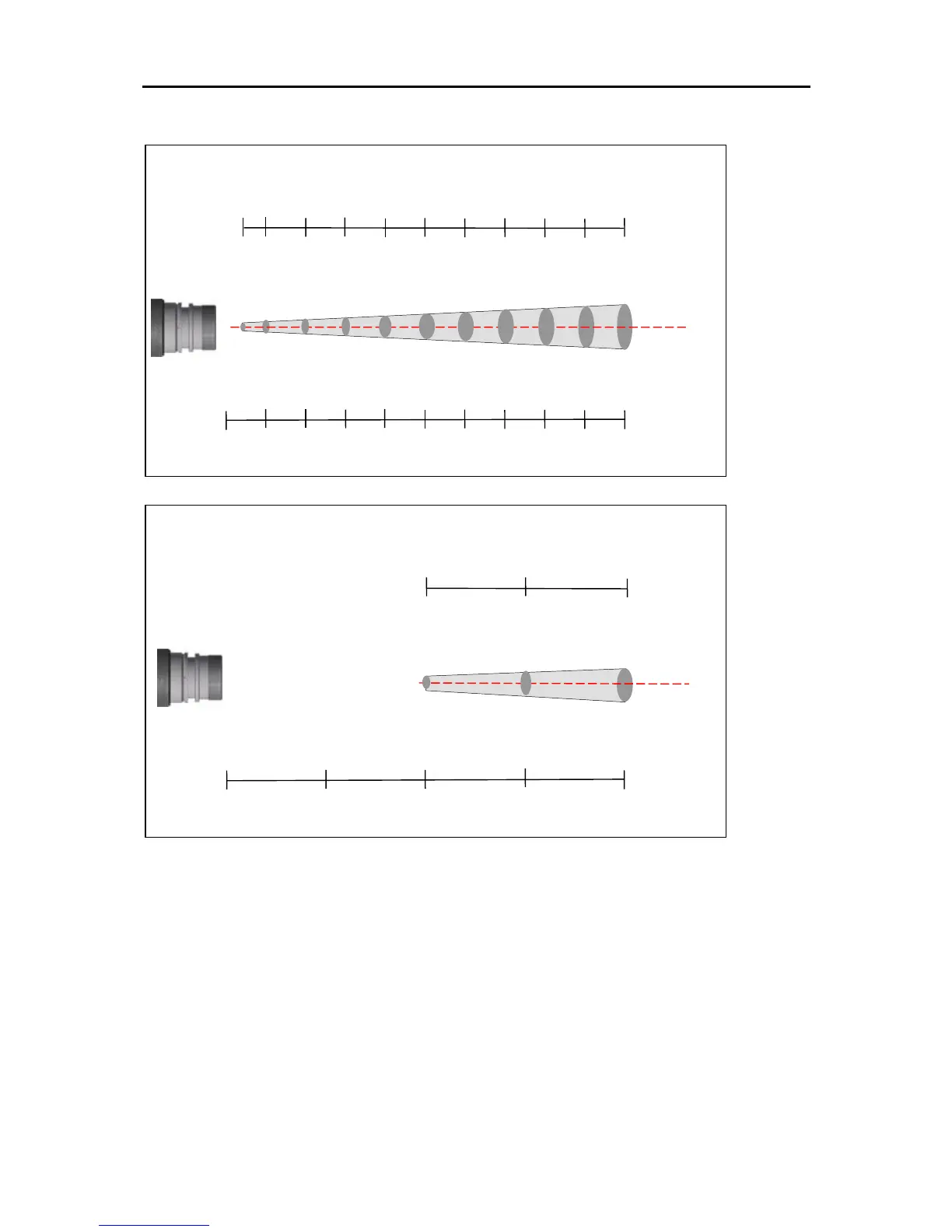

28.1 Field of View Diagrams for PA 35
0.1
0.2
0.4
1
1.5
2
D = 200 :1
Target distance [m]
Target diameter [mm]
0
PZ 20.03 (0.2 – 0.4 m)
0.3
1
2
3
4
5
6
7
8
9
10
5
10
14
19
24
28
33
38
43
48
D = 210 :1
Target distance [m]
Target diameter [mm]
0
PZ 20.01 (0,4 m - ∞)
