To avoid an equalising current, the pyrometer can be mounted elec-
trically insulated. The shielding must be connected to the plant’s
earthing system.
Caution:
If the pyrometer is installed without an insulator and without
potential equalisation, the interference voltage may not ex-
ceed 48V.

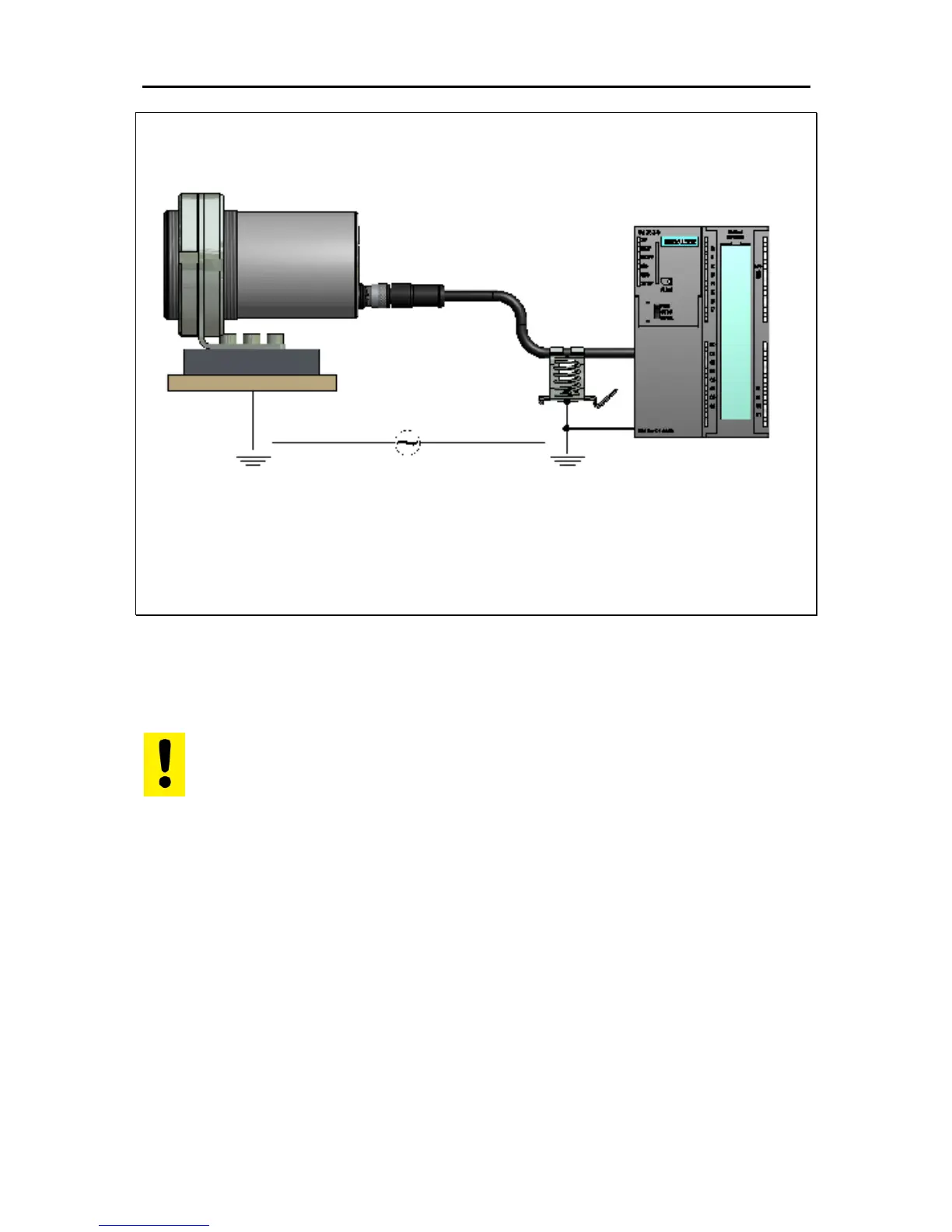

Interference voltage
Shielded cable
Pyrometer PA
Shield clamp
