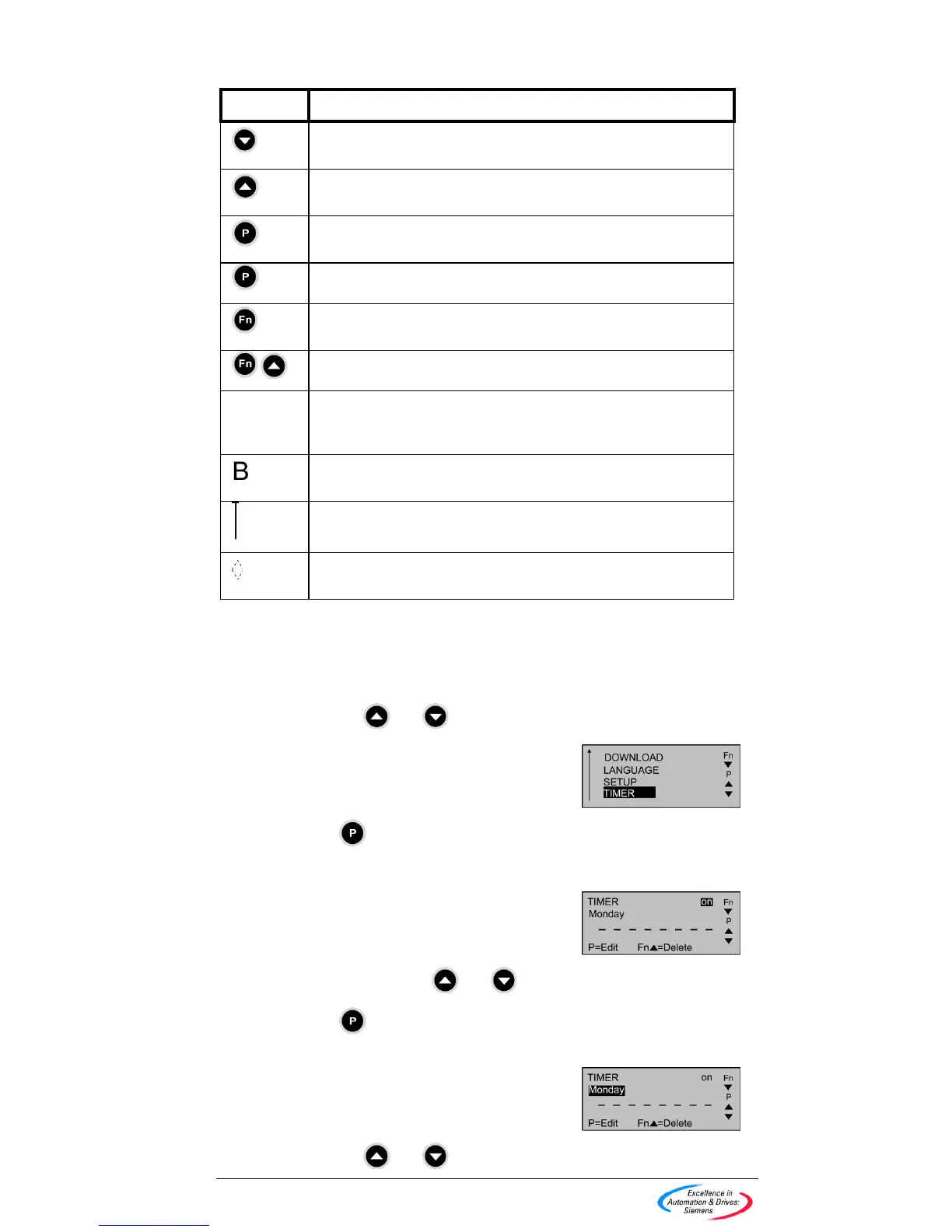

Keys and Symbols for Timer Operation
Key Function
To move down through the available choices of the highlighted
field.
To move up through the available choices of the highlighted
field.
A short press will confirm the changed field and move the
cursor to the next field.
A long press will move the cursor back to the previous field.
Cancels the current settings and returns the user to the Main
Menu. All changes will be discarded.
Cancels the entire timer event current display.
0 …31
Available USS inverter network settings 0 to 31 are selectable
when the inverter at that address has been detected by the
AOP in Master mode.
Allows the programmed timing event to be communicated to
all connected drives.
This is the ON symbol, indicating that the currently viewed or
programmed event is when the inverter will be switched on.
This is the OFF symbol, indicating that the currently viewed or
programmed event is when the inverter will be switched off.
To set the timer to control the connected inverters the following procedure
should be performed:
To Set a Timed Event
1. Using the
and keys select TIMER from the Main Menu.
2. Press
to confirm selection.
3. The user is then presented with the TIMER screen.
4. If necessary use the
and keys to select ON.
5. Press
to confirm the selection and move the cursor to the Day
of the Week field.
6. Using the
and keys select to required Day of the Week.
