Siemens ARCADIS Varic Start-Up

Siemens AG SPR2-310.815.01.05.02 ARCADIS Varic
02.05 CS SD 24
General Start-up 15
Page 15 of 48
Medical Solutions
The line voltage can be adapted at the transformer in the monitor
cart.
0
WARNING
Danger high voltage!
Disregarding safety precautions can result in death or serious
bodily injury.
¹ Before the line voltage is adapted, the power plug on the
UPS in the monitor cart must be pulled out, since the
monitor cart is not free of voltage after the power plug is
pulled out.
Adapting the line voltage 0
• Remove the back, bottom covers (Fig.1/p.15) from the monitor cart.
• Pull the power plug out of the UPS in the monitor cart.
• Adapt the voltage by changing the connections to transformers T1 and T2. Refer to the
ARCADIS Varic wiring diagram.

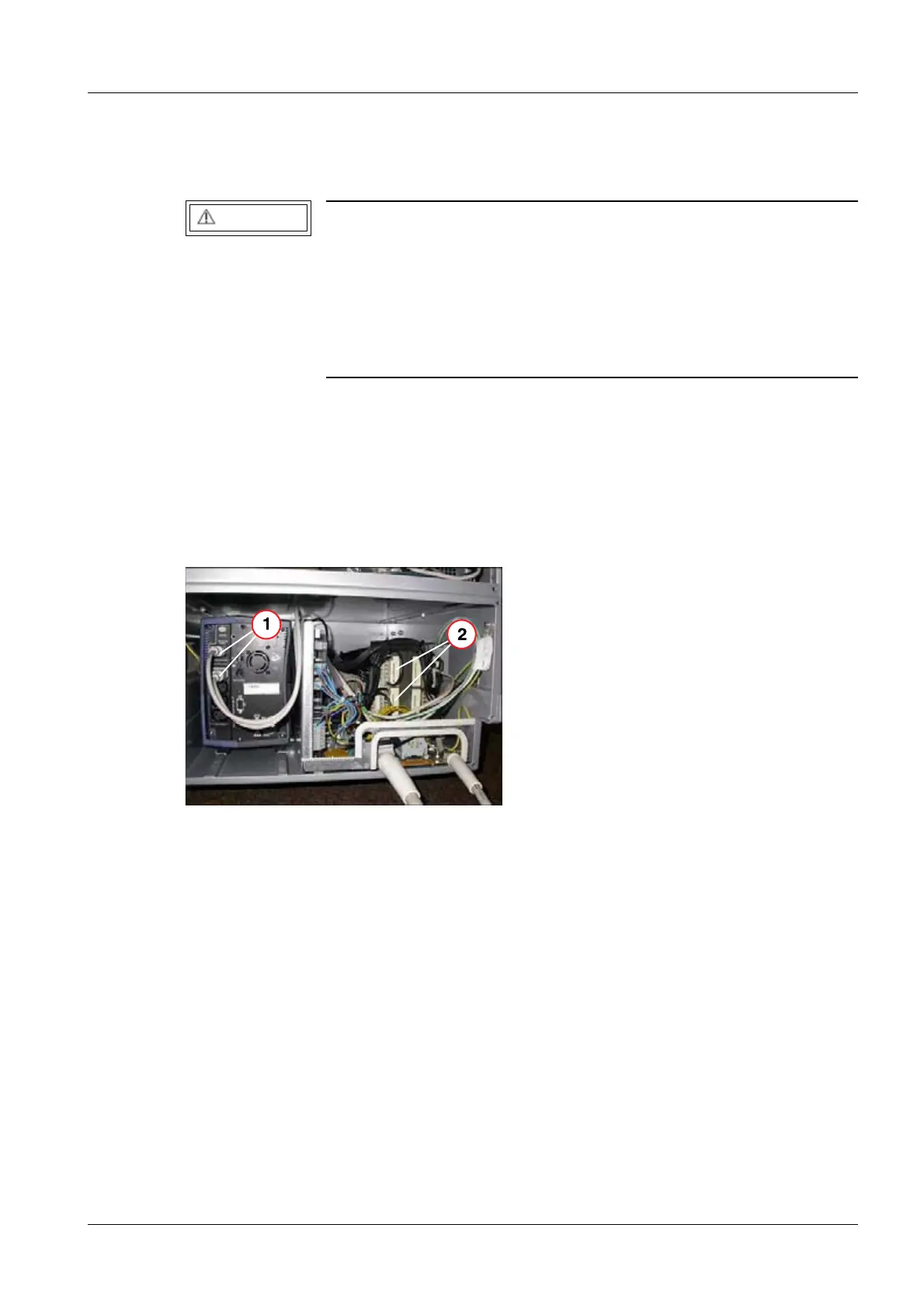

Fig. 1: Monitor cart line voltage
Pos. 1 Power plug
Pos. 2 T1 and T2

Siemens ARCADIS Varic Specifications

General

Type	Mobile C-arm
Image Intensifier	9-inch or 12-inch
DICOM Compatibility	Yes
Frame Rate	Up to 30 fps
Focal Spot Size	0.3/0.6 mm
Monitor	Dual 18-inch TFT LCD monitors
