Siemens ARCADIS Varic - 1990 (E.g. Bender Tester)

Siemens AG SPR2-310.815.01.05.02 ARCADIS Varic
02.05 CS SD 24
General Start-up 17
Page 17 of 48
Medical Solutions
ber 1990 (e.g. Bender tester) 0

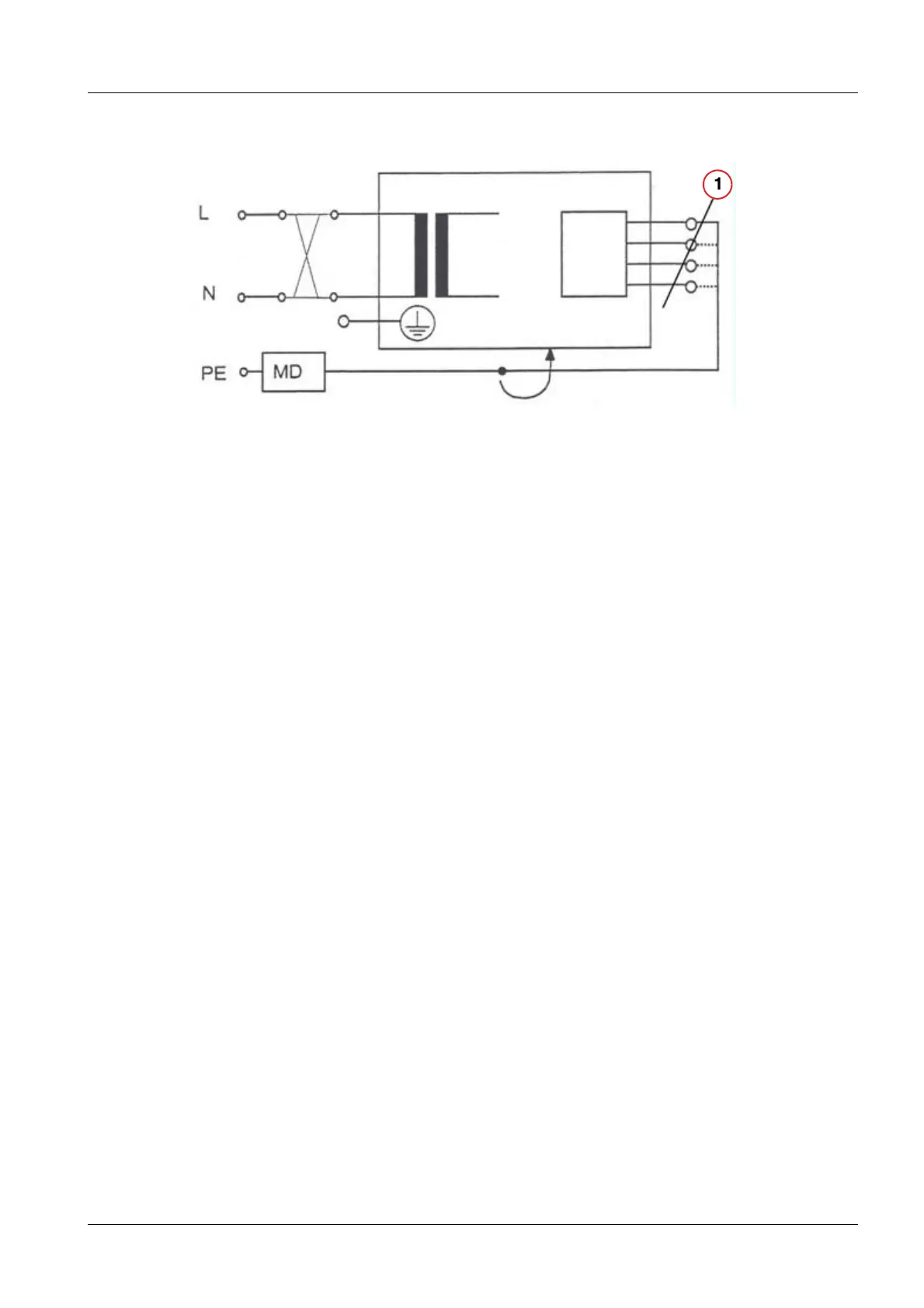

Fig. 3: Measuring circuit for the direct measurement of the system leakage current
• Measurement configuration according to (Fig.2/p.16) application part
(1/Fig.3/p.17) is not available in ARCADIS Varic.
• For safety reasons place the system on an insulated base.
• Perform measurement and repeat measurements.
• Document the measured values in the "Leakage current test protocol" (Leakage cur-
rent measurement / p. 41).
