16 General Start-up
ARCADIS Varic SPR2-310.815.01.05.02 Siemens AG
02.05 CS SD 24
Page 16 of 48
Medical Solutions
Measuring the system leakage current 0
NOTE
Perform the system leakage current measurement only if the line
voltage on the ARCADIS Varic system must be adapted to the local
line voltage.
See also (Notes on equivalent leakage current
measurement / p. 10)
Measuring arrangements for system leakage current with tester VDE 0751 Octo-
ber 2001 (preferred measuring method)
0

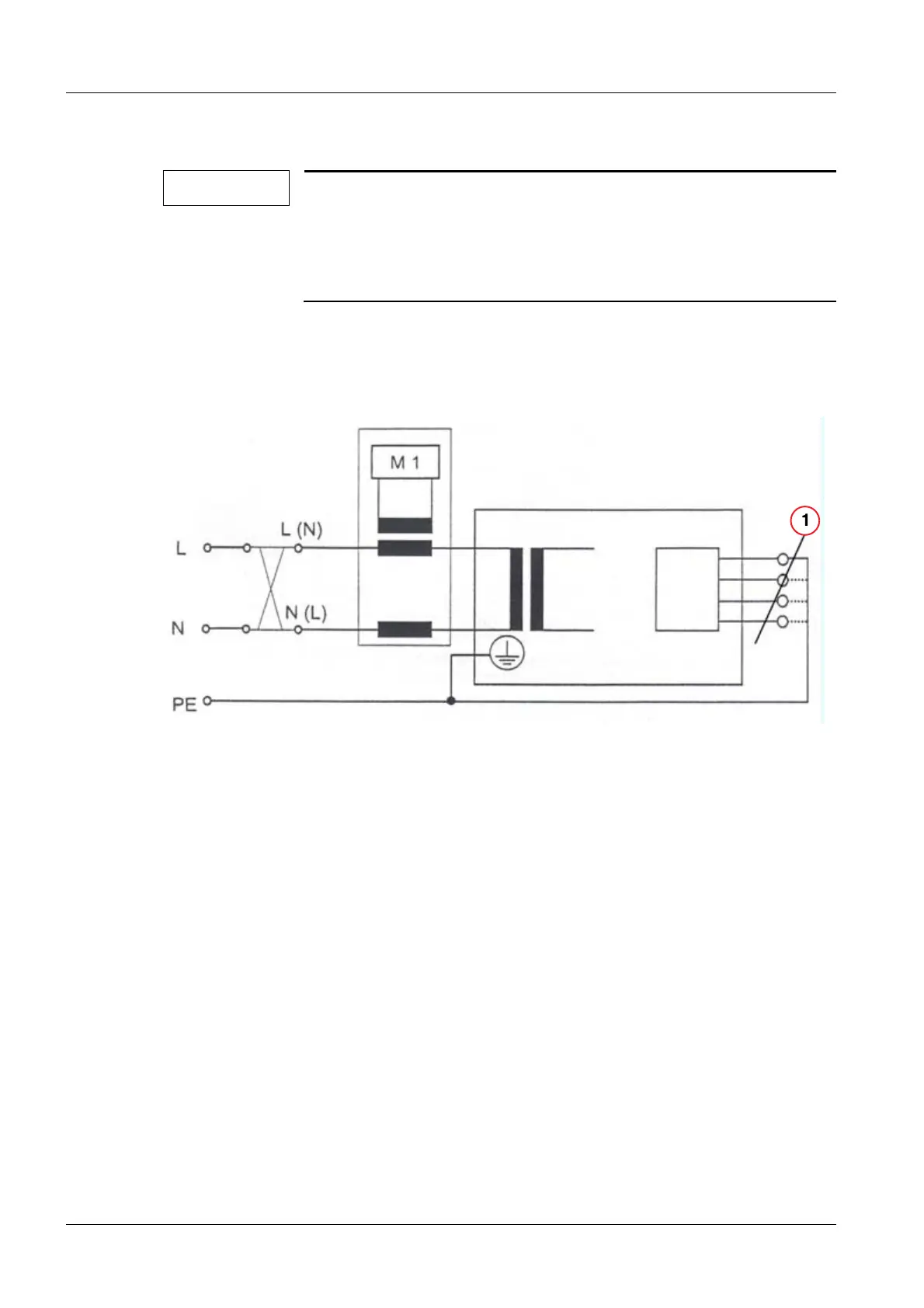

Fig. 2: Measuring circuit for measuring the system leakage current according to the differential
current method
• Perform measurement configuration according to (Fig.2/p.16). Application part
(1/Fig.2/p.16) is not available in ARCADIS Varic.
• Perform measurement and repeat measurements.
• Document the measured values in the "Leakage current test protocol", (Leakage cur-
rent measurement / p. 41).
Measuring arrangements for system leakage current with tester VDE 0751 Octo-
