DRAFT 22.04.2008
Siemens SP00-000.814.09.01.02 ARCADIS
11.07 CS PS SP
Installing the WLAN Expansion 21
Page 21 of 78
Medical Solutions
Installing the WLAN Parts in the Monitor Carriage 0
Installing the WLAN Client
• Insert the antennas and tighten the threads at both WLAN Client antenna sockets. See
(Fig. 12 / p. 21).
• When installing the WLAN Client, insert the two antennas through the opening in the
front of the compartment. The opening is visible in (Fig. 13 / p. 21) behind the installed
WLAN Client.
• When inserting the antennas into the opening, angle them 90 degrees at their pivot
point. Turn the antennas so that they point out to the right and left and are pointing up at
an angle of 30 degrees.
• Secure the WLAN Client on the bottom of the plastic compartment base with 4 metal
screws (with a thread for use with plastic). See (6/Fig. 13 / p. 21).
Installing the WLAN Power Supply
• Place the WLAN power supply on the existing cap rail (7/Fig. 13 / p. 21) and snap it in
place.
¹ If the power supply cannot be snapped in place, slightly pull out the latching lever
(8/Fig. 13 / p. 21) and press the power supply onto the cap rail. Let go of the latch-
ing lever. Check for correct seating of the power supply on the cap rail.

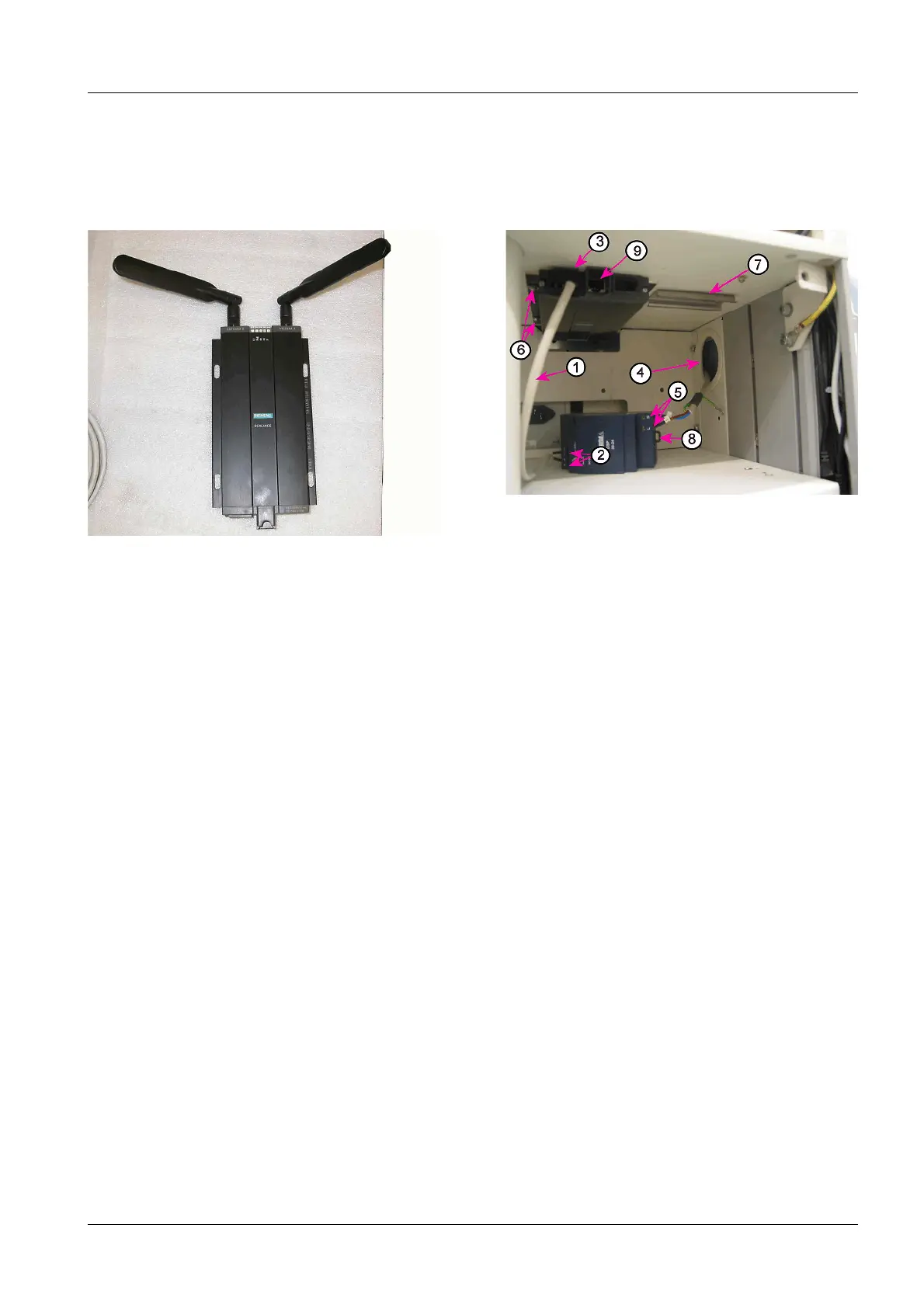

Fig. 12: WLAN Client with installed antennas
Fig. 13: WLAN Client and power supply
Pos. 1 24V power supply connection cable - WLAN Cli-
ent
Pos. 2 Power supply terminals, 24V DC output
Pos. 3 WLAN Client, 24V power supply
Pos. 4 Cable opening
Pos. 5 Power supply terminals, 230V AC input
Pos. 6 WLAN Client mounting points
Pos. 7 Cap rail for installing the power supply
Pos. 8 Power supply latch/release lever, cap rail
Pos. 9 WLAN Client network socket
