DRAFT 22.04.2008
Siemens
SP00-000.814.09.01.02
ARCADIS
11.07
CS PS SP
WLAN Configuration
39
P
age
39 of 78
Medical Solutions
•
Start the "s7wnpstx.exe" program by double-clicking on the icon.
¹
The Language selection window for the program is disp
layed.

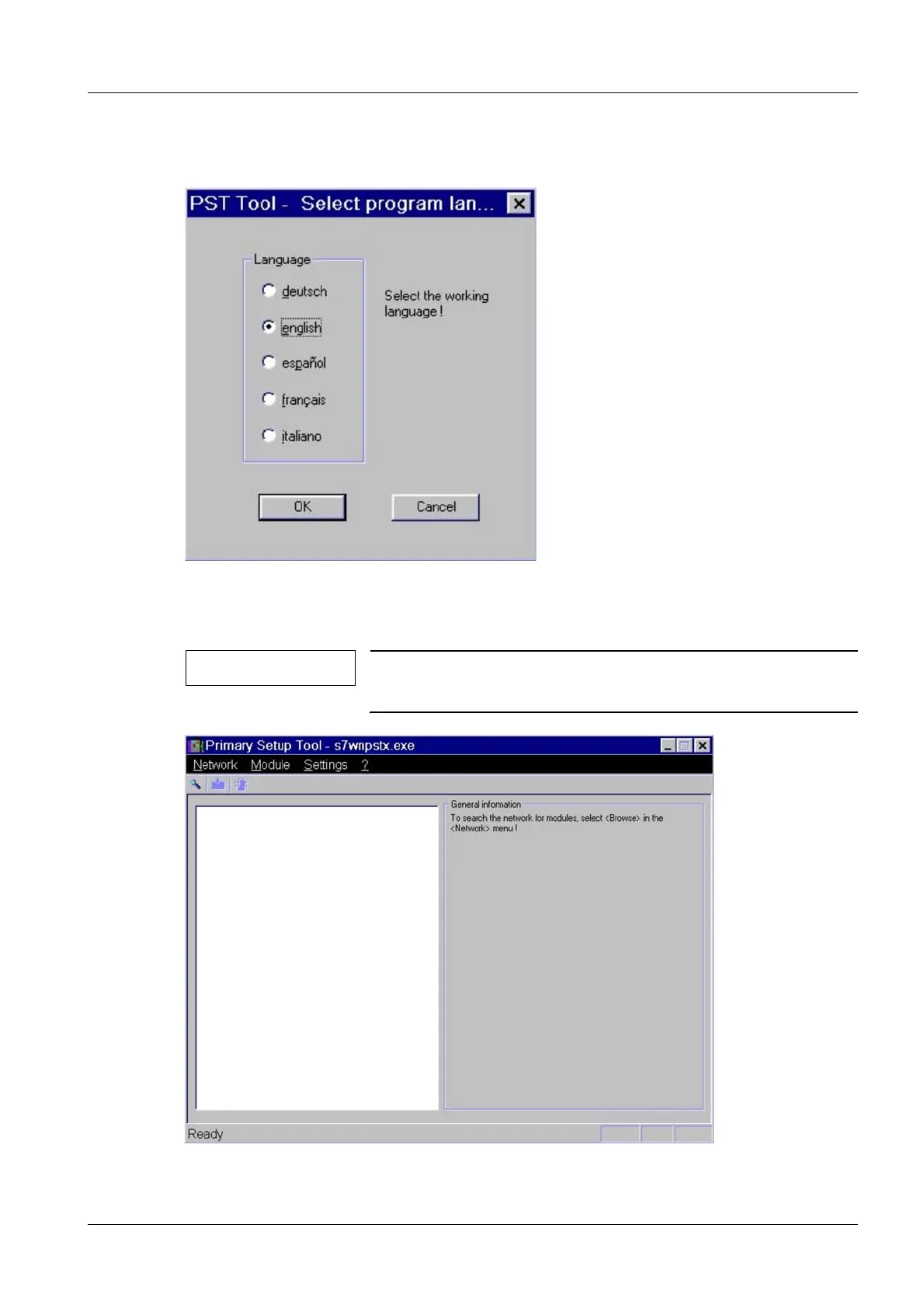

Fig. 35:
Language selection
PST T
ool
•
Select the desired la
nguage.
¹
