40 WLAN Configuration
DRAFT 22.04.2008
ARCADIS SP00-000.814.09.01.02 Siemens
11.07 CS PS SP
Page 40 of 78
Medical Solutions
• Select the <Settings> - <Network Adapter> menu.

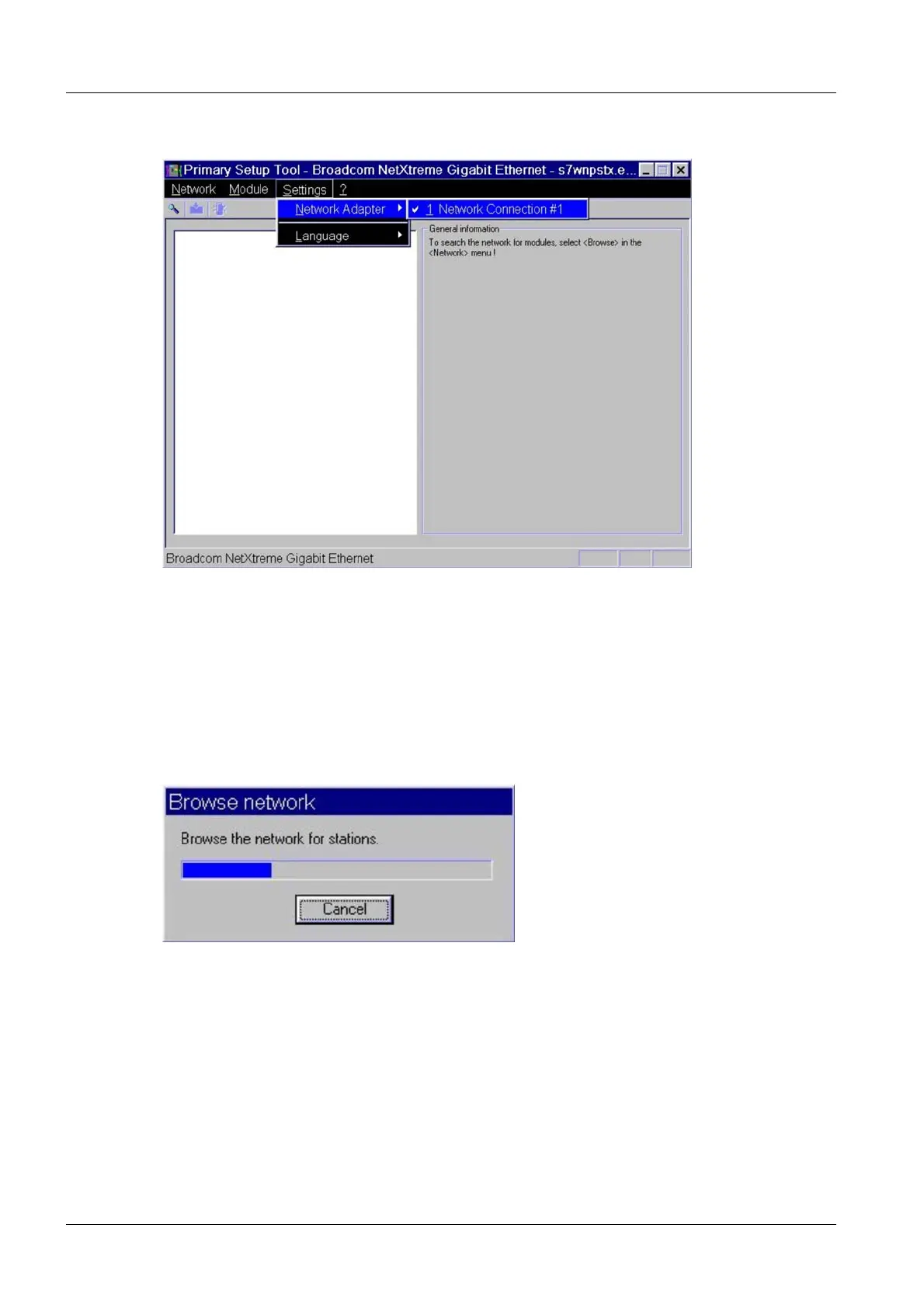

Fig. 37: Selection of the network adapter
¹ The network connection for the image system PC detected by the Primary Setup
Tool is displayed.
• Select the network connection for the image system PC.
¹ Following selection, this is identified with a checkmark.
• Click on the <Network> - <Browse> menu.
¹ The Primary Setup Tool looks for the network connection to the WLAN Client (via
the network switch - Ethernet connection).
Fig. 38: Network Browse message
• Following a successful search for the network connection to the WLAN Client:
¹ INC : XX-XX-XX-XX-XX-XX : YYY.YYY.YYY.YYY is displayed.
