DRAFT 22.04.2008
Siemens SP00-000.814.09.01.02 ARCADIS
11.07 CS PS SP
WLAN Configuration 43
Page 43 of 78
Medical Solutions
• In the Primary Setup Tool, click on the <Module> - <Download> menu.
¹ The query "Do you want to continue downloading to the station?" is displayed.

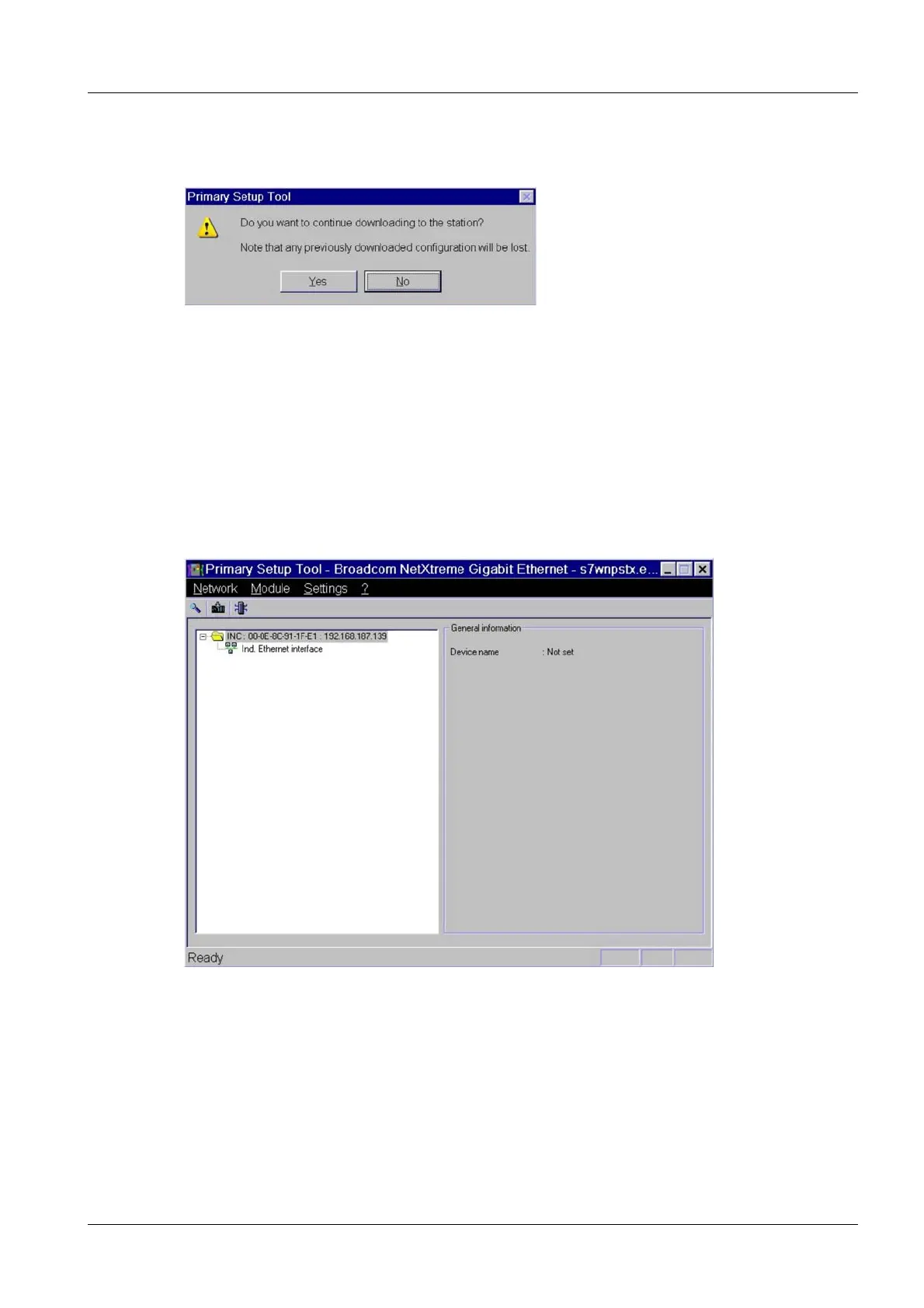

Fig. 41: Download query
• Click on the <Yes> button.
¹ The configuration is transferred to the WLAN Client.
¹ The configuration is automatically saved in the WLAN Client.
¹ The WLAN Client is automatically restarted.
• Wait about 2-3 minutes until the WLAN Client has saved the transferred data and has
rebooted.
• Click on the <Network> - <Browse> menu.
¹ The new configuration is displayed in the screen.
Fig. 42: Display of the WLAN Client MAC and IP address following the download
• Configuration of the WLAN Client with the Primary Setup Tool is finished.
