Description of the camera
14
Siemens AG 03.2011
IMPORTANT
The user of this camera is responsible for checking and complying with local,
state, and federal laws and statutes concerning the recording and monitoring of
audio and video signals.
6.2 Camera parts
1
23

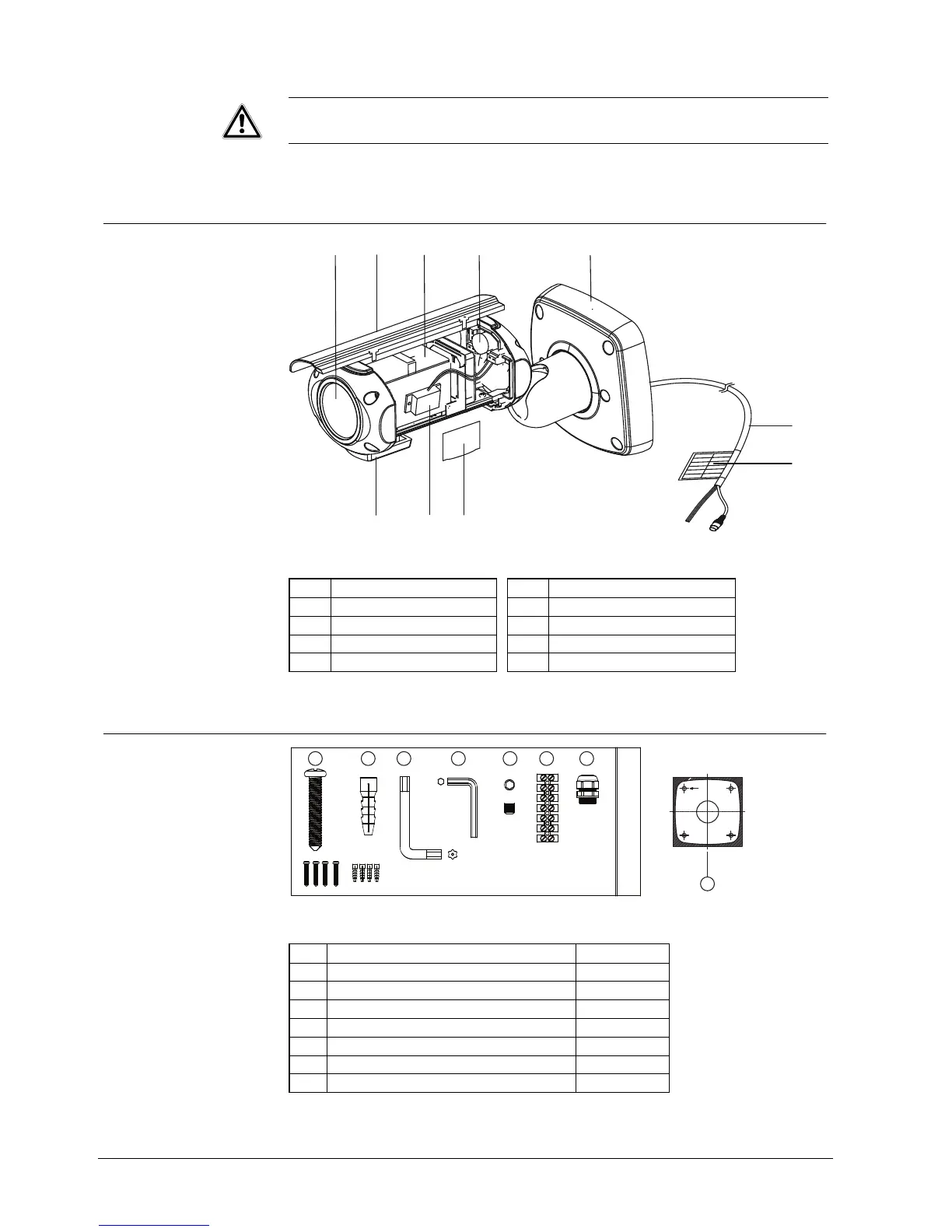

Fig. 3 Camera parts
1 Front 6 Connection cable
2 Sunshield 7 Cable label
3 AF camera module 8 Silicagel
4 Bimetal 9 Heater
5 Mounting base 10 Mounting block (1/4-inch 20 UNC)
6.3 Mounting parts
4 Point -
Drilling Position
H
A BC D E F G
Fig. 4 Mounting parts
A Torx screw T-20, 6x35 mm 4 x
B Plastic anchor Ø 8x40 mm 4 x
C Torx wrench T-20 1 x
D Allen key 2.5 mm 1 x
E Grub screw M5x5 mm 1 x
F Terminal block 7-pin
G Cable gland M22xP1.5 1 x
H Template 1 x
