7.2.3 Installation 3 (cable gland without mounting base)
1. Loosen the grub screw using the Allen key.
2. Remove the mounting base by turning it counter-clockwise.
3. Fit the cable gland into the hole.
4. Tighten the grub screw and seal the hole using teflon tape or silicon.
5. Attach the camera to the mounting block.
14.0mm
1
2
3
4
A

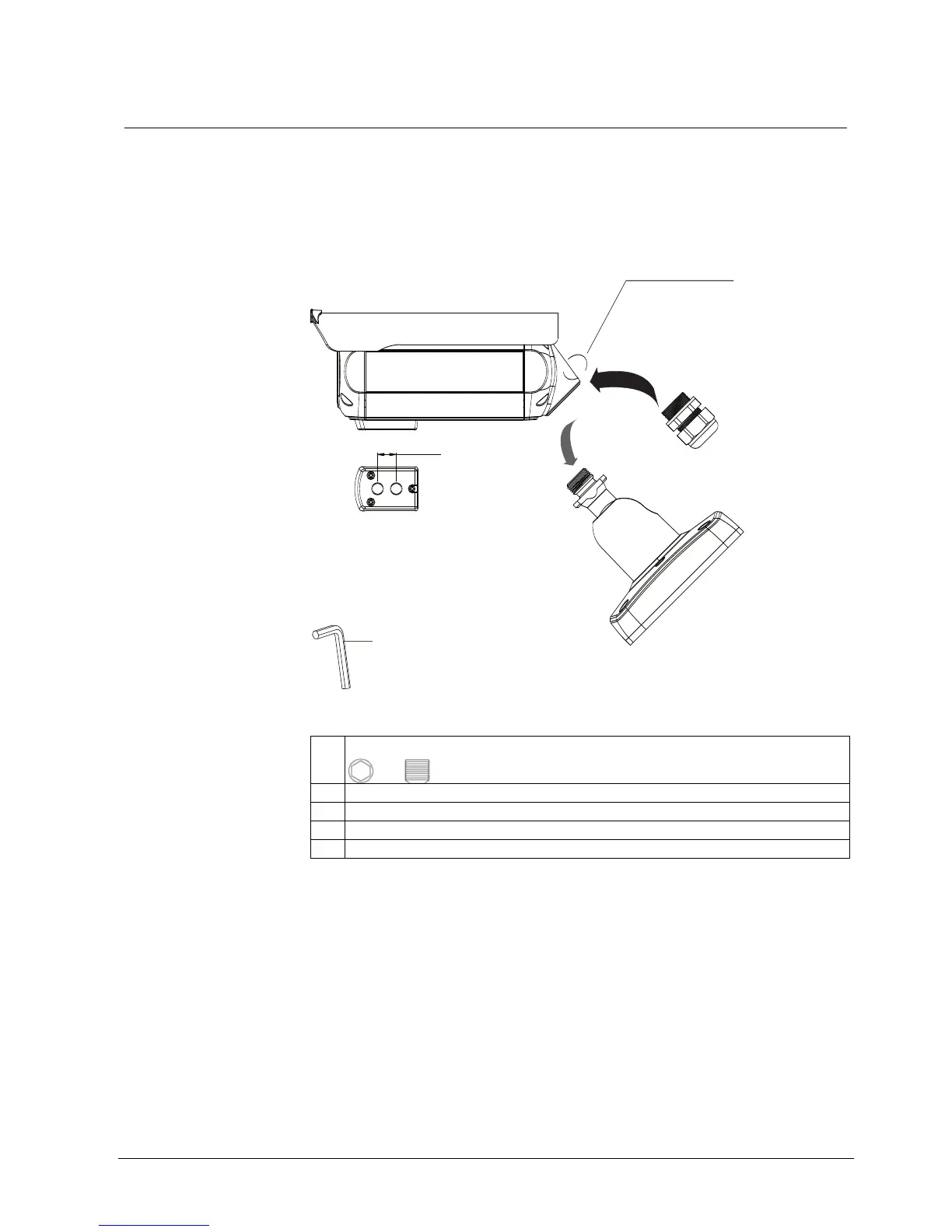

Fig. 8 Installation 3
1 Cap-head screw (grub screw) M5x5 mm
2 Cable gland (M22 x P1.5)
3 Mounting base
4 Mounting block (1/4-inch 20 UNC)
A Allen key 2.5 mm
