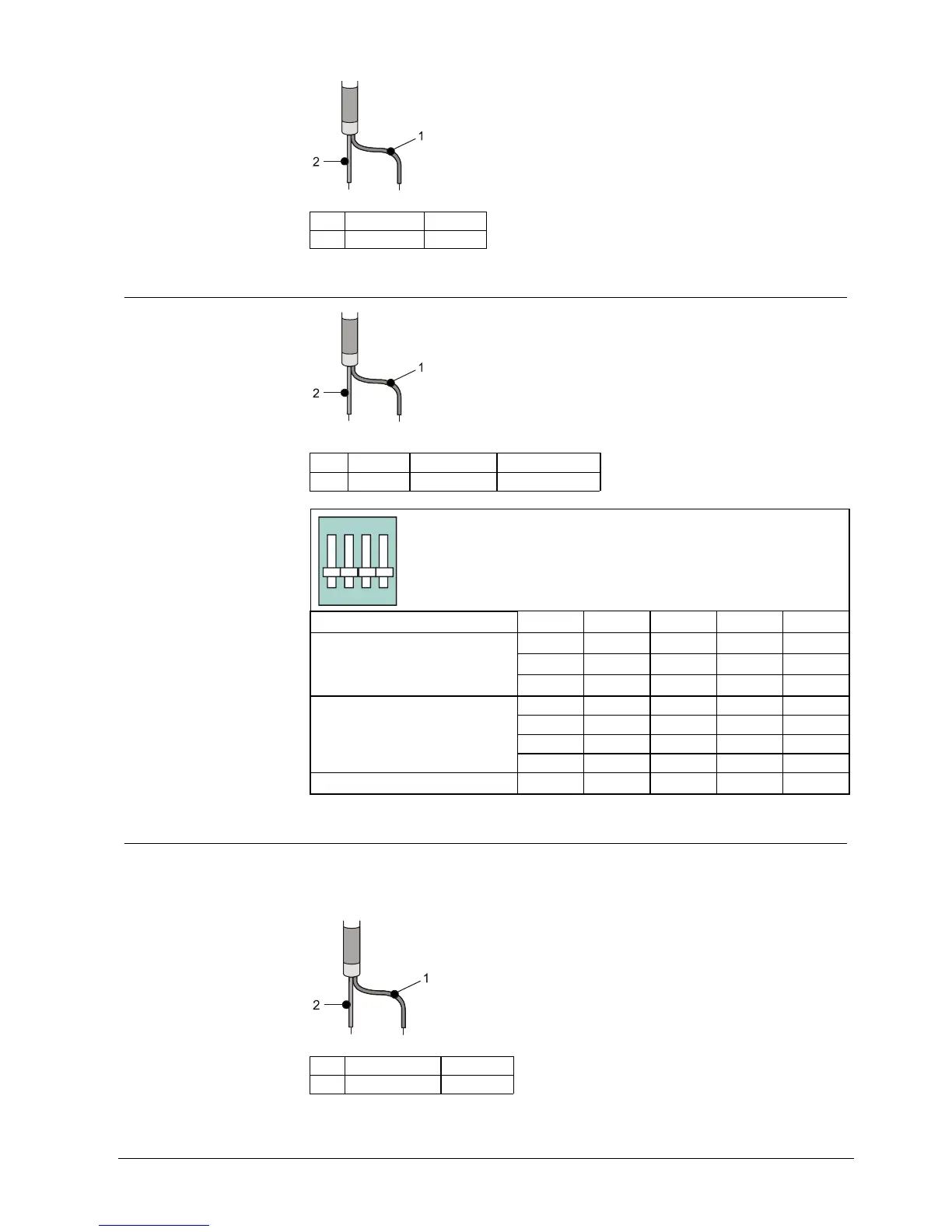

Connection
23
Siemens AG 03.2011
1 RS-485(+) Green
2 RS-485(-) Blue
8.1.3 Twisted-pair video output
1 TP-A(+) Yellow TP output A
2 TP-B (-) Green/White TP output B
ON
1234
Switch description S1 S2 S3 S4 Note
Off Off 2.0 Vpp
On Off 2.6 Vpp
Output voltage without accentuation
On On 3.2 Vpp
Off Off 0 dB
Off On 6 dB
On Off 6 dB
Frequency-dependent accentuation
at 5 MHz
On On 12 dB
Condition on delivery On Off Off Off
8.1.4 Alarm output
The alarm output (motion detection result or face detection result or external signal
fed in) is active high.
1 Alarm output Violet
2 GND Black
