System installation
15
Siemens AG 03.2011
7 System installation
Installation of the camera must be performed by qualified service personnel in
accordance with all local national electrical and mechanical codes. Perform the
following steps to install the camera.
7.1 Operation requirements

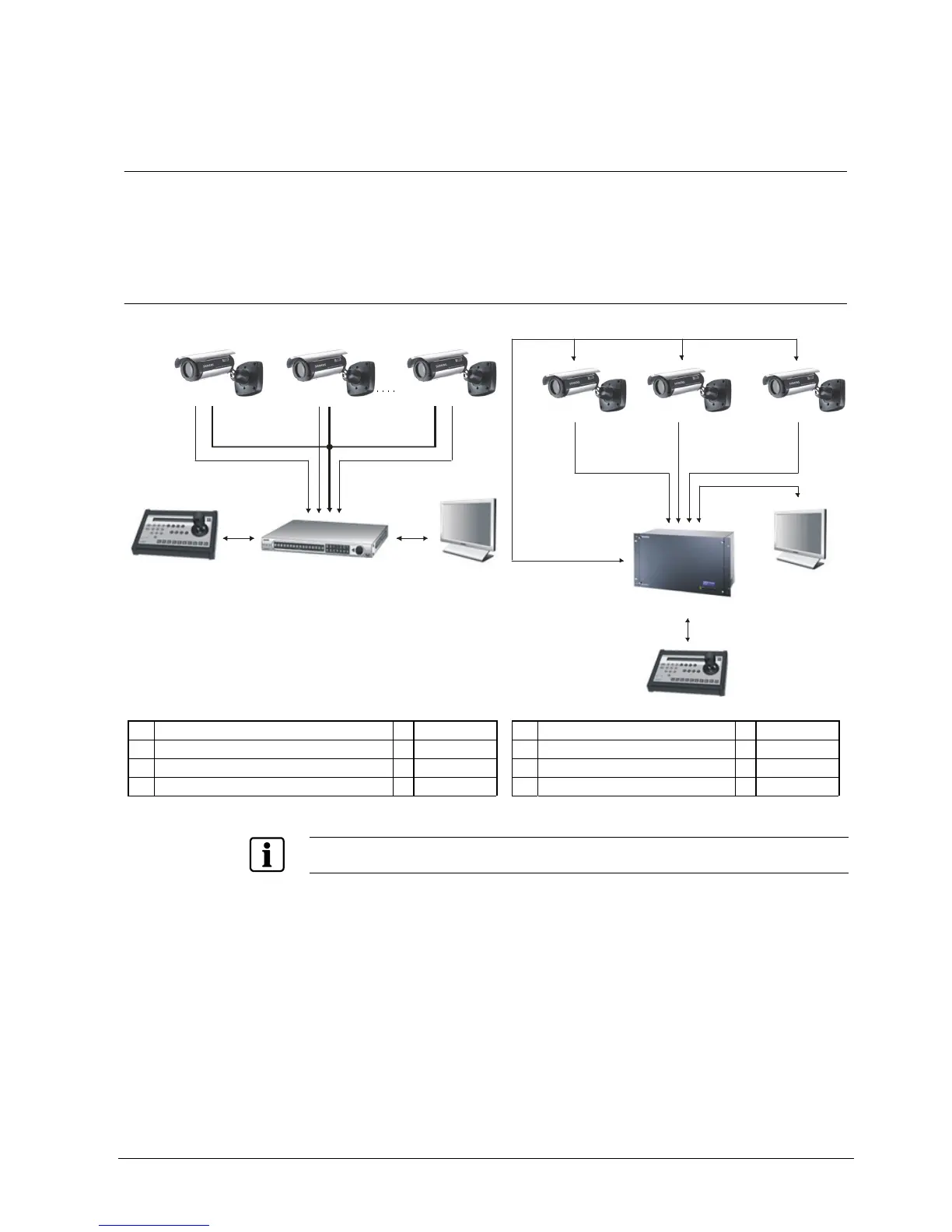

Typical system configuration with DVR Typical system configuration with SIMATRIX
1
1
1
C1
C2
C10
A
B
B
234
C
1
1
1
.....
C1
C2
C10
A
B
2
4
3
C
1 Camera C1…C10 A RS485
2 Keyboard B Video
3 DVR C RS232/485
4 Monitor
1 Camera C1...C10 A RS485
2 Keyboard B Video
3 SIMATRIX C TTY
4 Monitor
When using the camera in conjunction with a video matrix switcher (SIMATRIX SYS, 648, 164) or
other telemetry equipment (different protocol) an interface converter CAC0103 is required.
