Siemens CP1430 TCP User Manual

2 Engineering
Ethernet Communication (ISO on TCP) between SIMATIC S5 and
SIMATIC S7-1500 Controllers
Entry-ID: 109482475, V1.2, 07/2019
13
© Siemens AG
2019 All rights reserved
Hardware setup

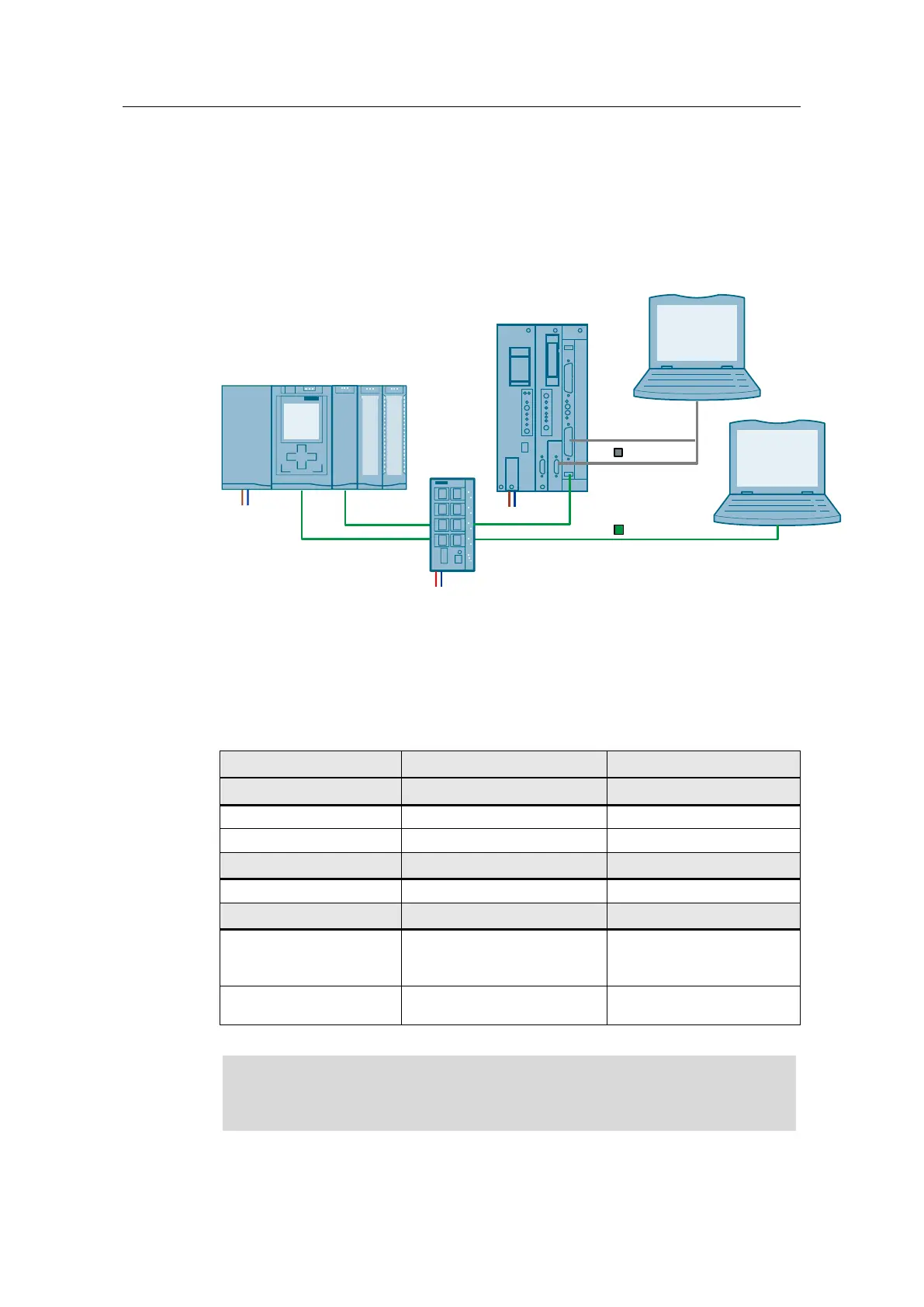

The figure below shows the complete hardware setup of the example.
SIMATIC S5-115U station
CP 1430 TCP
SIMATIC S7-1500 station
CPU 944
CP 1543-1
CPU 1516-3PN
Industrial Ethernet
TIA Portal
STEP 7 V 13
RS232/TTY
PG
Engineering stations
OUC: Open User Communication
PM 70W
Scalance
X208
230 V AC
230 V AC
STEP 5
NCM COM 1430TCP
PG
24 V DC
The following table includes the overview of all IP addresses used in this example
for the SIMATIC S7-1500 and the SIMATIC S5. A fixed configuration of the IP
addresses is required.
The subnet mask is 255.255.0.0 in all network components.
Table 2-2
Device
IP address
Designation
SIMATIC S7
CPU1516 -3PN
140.140.111.102 (port X1)
SIMATIC S7-1500 CPU
CP1543-1
140.140.111.103 (port X1)
SIMATIC S7 CP1543-1
SIMATIC S5
CP1430 TCP
140.140.111.104
SIMATIC S5 CP1430 TCP
PG/PC
PG/PC (WinXP/STEP5)
140.140.111.100
Programming device with
STEP5 and NCM COM
1430TCP
PG/PC (TIA Portal)
140.140.111.101
Programming device with
TIA Portal
Note
In general, the installation guidelines of all components have to be observed.
Please observe the installation and connection guidelines from the
corresponding manuals of the components used.
